Enabling Innovations
As designers take on increasingly complex applications, solid state RF and microwave power amplifiers are replacing magnetron generators and tubes used in traditional systems. Solid state amplifiers provide unlimited power control and precision to adapt to variable dielectric constants and deliver energy efficiently to the target load. Mini-Circuits’ innovative RF energy product line offers industry-leading performance and ease of use with a versatile selection of building block components and fully-integrated turn-key solutions for next-generation industrial, scientific and medical (ISM) technologies from 13 MHz to 5.8 GHz with power requirements up to 6 kW and beyond.
Key Technology Advantages
Leave the amplifier design to us and focus on what matters most. Our RF and microwave energy product line is enabling customers to focus on their end system and application design without taking on the complexity of developing their own power amplifiers in-house.

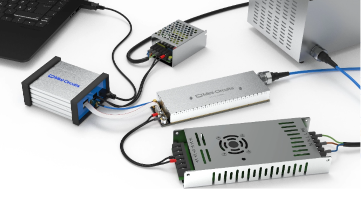

We’ve developed the most flexible system on the market to meet your requirements whether you’re looking for discrete, building-block components to design your own system or a purpose-built turnkey solution to plug-and-play right out of the box.
When you work with Mini-Circuits, you’re getting 55+ years of manufacturing, supply chain and quality management experience, highly-competitive cost structure, our industry-leading product longevity, and the peace of mind that comes with all of the above.

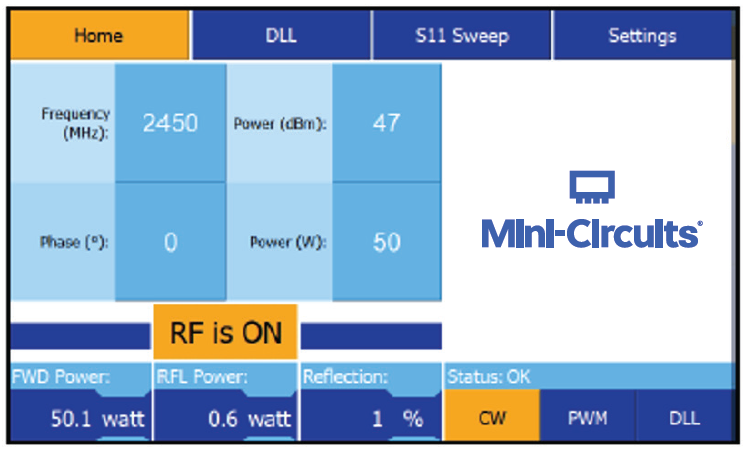

Mini-Circuits RF energy systems feature our user-friendly GUI control software for plug-and-play utility as well as a full API for integration into your own automation software. Set frequency, power and phase. Monitor forward and reflected power in real time and optimize frequency for S21 performance in analog or digital locked loop mode.
Key Features

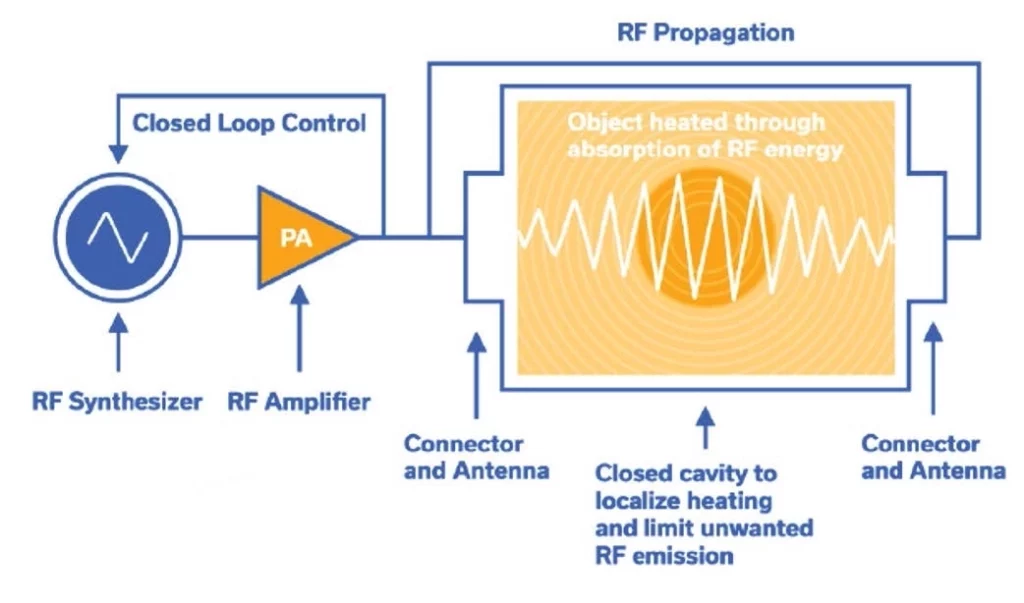

Mini-Circuits’ RF & microwave energy portfolio covers all the key functions in the system block diagram. Use building-block modules to design your own system put our in-house design & manufacturing experience to work for you with a turnkey solution.
Essential Functions

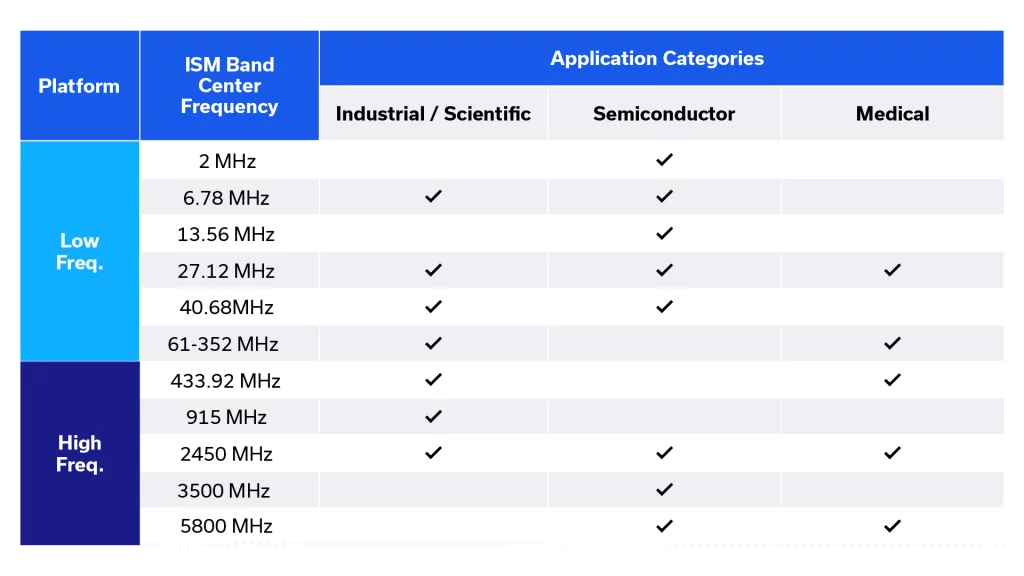

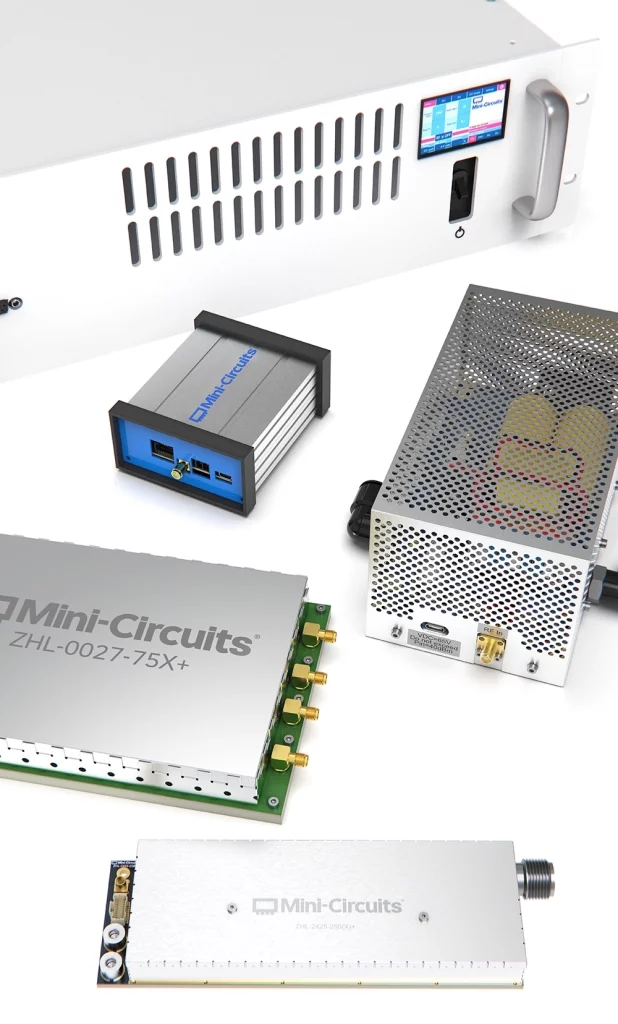

Mini-Circuits offers a wide selection of building-block components and turnkey integrated systems for industrial, scientific & medical (ISM) applications in the 2.4 to 2.5 GHz. In addition to our in-stock models below, our in-house design & manufacturing capabilities allow us to partner with customers at the engineering level to develop custom solutions. Contact us using the form below to discuss your special requirements with our team.
| P/N | Power | F Low (MHz) | F High (MHz) | Control |
| RFE-24M30M1K7X+ | 1700W | 24 | 30 | CW & Pulsed |
| RFS-G90G93750X+ | 750W | 902 | 928 | CW & Pulsed |
| RFE-24M30M075X+ | 4X 19W | 24 | 30 | CW & Pulsed |
| RFS-2G42G5050X+ | 50W | 2400 | 2500 | CW & Pulsed |
| RFS-2G42G51K0+ | 1000W | 2400 | 2500 | CW & Pulsed |
| ZHL-2425-250X+ | 300W | 2400 | 2500 | CW & Pulsed |
| P/N | Description | Frequency |
| COM-2G42G51K0 | 1 kW 4-Way Power Combiner | 2.4 to 2.5 GHz |
| SPL-2G42G50W4+ | 4 Ways Active Power Splitter, 2.4 – 2.5 GHz, 50Ω | 2.4 to 2.5 GHz |
| COM-2G42G56K0+ | 6 Ways Power Splitter, 2.4 – 2.5 GHz, 6000W, 50Ω | 2.4 to 2.5 GHz |
| COM-2G42G58K0+ | 8 Ways Power Splitter, 2.4 – 2.5 GHz, 8000W, 50Ω | 2.4 to 2.5 GHz |
| COM-G90G9316K+ | 8-Way Power Splitter, 900 – 930 MHz, 16000W, 50Ω | 900 to 930 MHz |
| P/N | Description | Frequency |
| ISC-2425-25+ | Signal Generator and Controller for 2.4-2.5 GHz ISM RF Energy | 2.4-2.5 GHz |
| P/N | Description | Frequency |
| RFS-2G42G5050X+ | Connectorized MCX-SMA, High Power, Linear Amplifier, 2400 MHz to 2500 MHz, 50Ω | 2.4 to 2.5 GHz |

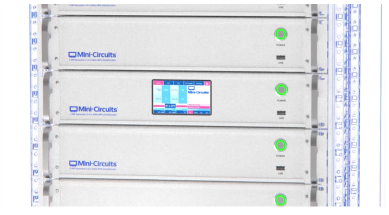

| RFS-2G42G51K0+ | 1kW Generator 19″ Rack | 2.4 to 2.5 GHz |
