UVNA-63 | DIY Vector Network Analyzer Kit

IMAGEVK-74 | 4D Millimeter Wave Imaging Kit



Want more information about these products?

Fill the form and our RF Engineers will contact you to discuss how Mini-Circuits’ products can shorten your development time while lowering your costs.

NEW RF AMPLIFIERS

UVNA-63 | DIY Vector Network Analyzer Kit

This product is recommended for RF labs, companies in the RF industry who need a tool to train their employees further, for new RF engineers who wish to acquire hands-on experience and for RF academic institutions.

Bridge the Gap between Textbook Theory and Real-World Measurement

Build

Build your own vector network analyzer with a high-performance transceiver board, RF & microwave components,cables, and calibration standards.

Develop

Develop real-time S-Parameter measurement algorithms with Python or Matlab®.

Learn

Learn with access to free online tutorials and sample code (coming soon).

Need more information or RFQ about this product?

Please fill the form and we will contact you shortly.

RF/MW Research/Educational Kits

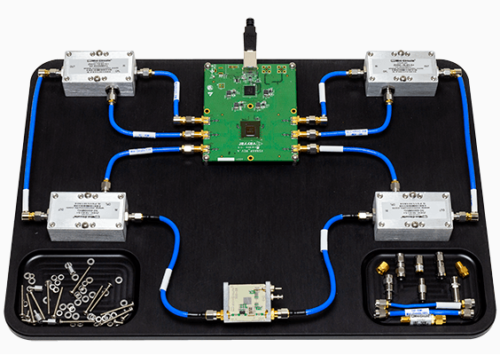

UVNA-63 microwave transceiver kit includes everything you need to build a fully functioning vector network analyzer and bridge the gap between textbook theory and practical, real-world measurement in the lab.

  • Hands-on learning tool for EM course work
  • Complete kit for full 2-port vector measurement
  • Open access to the entire VNA RF chain
  • Programmable in multiple software environments

VIDEO

How to build a do-it-yourself vector-network analyzer that’s actually useful

QF2252
Play Video

VIDEO

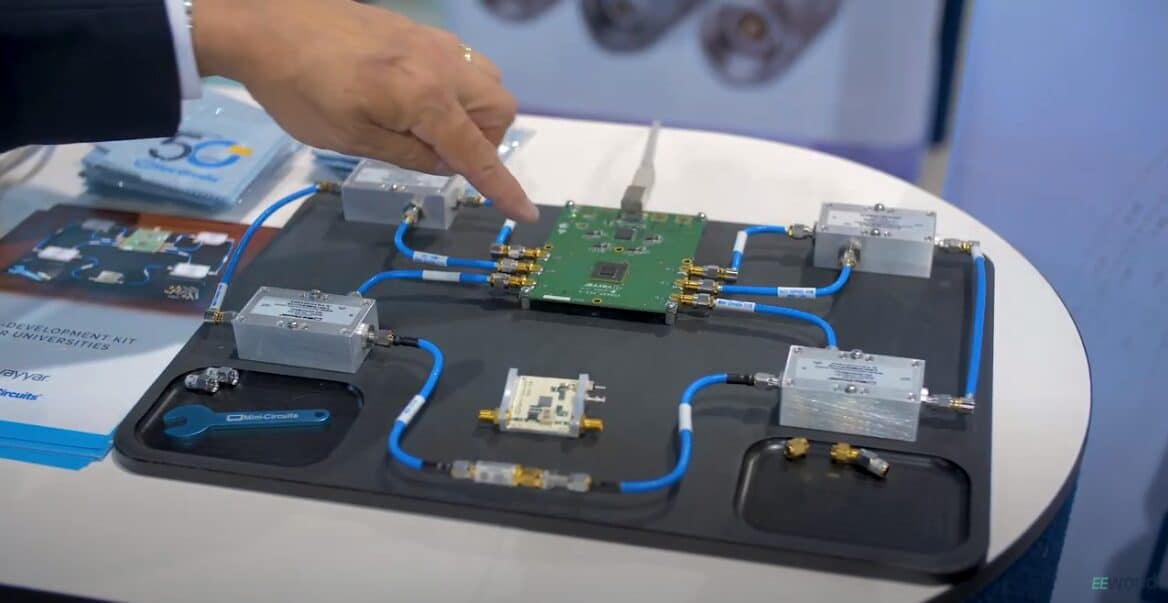

UVNA-63 DIY Vector Network Analyzer Kit | Mini-Circuits | MCDI

mq3
Play Video

IMAGEVK-74 | 4D Millimeter Wave Imaging Kit

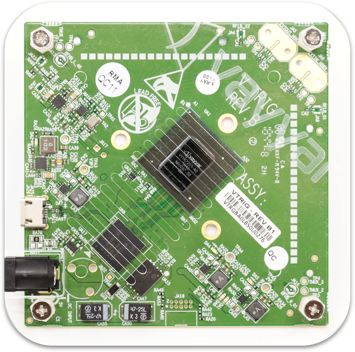

The IMAGEVK-74 is a revolutionary tool incorporating Vayyar’s highly integrated RFIC technology and radar IP into a compact evaluation kit. This kit enables researchers around the world to explore and realize millimeter wave imaging and sensing applications without the cost and overhead that would otherwise be associated with developing the required hardware.



Mini-Circuits and Vayyar bring 4D millimeter wave imaging and sensing to the global market.

RF/MW Research/Educational Kits

20 Tx and 20 Rx on-board antennas that can be configured to transmit and receive signals anywhere within the 62 to 69 GHz range.

RF/MW Research/Educational Kits

3 levels of transmit configuration and direct access to the radar returns (IQ and/or phasor).


RF/MW Research/Educational Kits

Impeccably accurate calculations. Operates on Windows. Compatible with Python or Matlab®.

RF/MW Research/Educational Kits

Kit Components

  • IMAGEVK-74 RF Sensor Unit
  • DC Power Supply
  • 3M Hanging Strips
  • Type A to micro USB cable v2.0

Need more information or RFQ about this product?

Please fill the form and we will contact you shortly.
