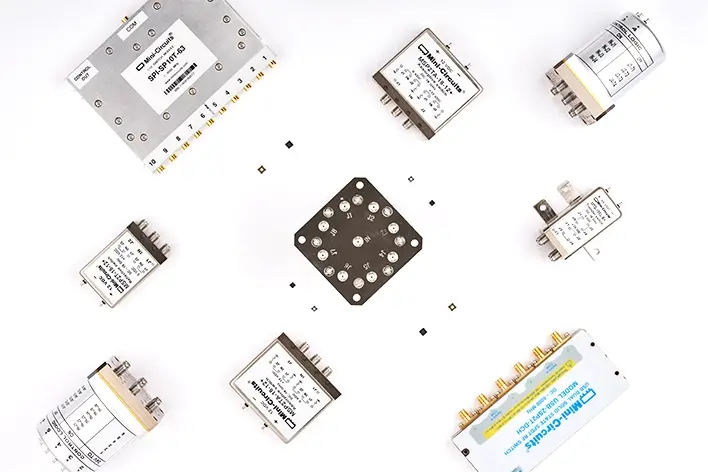

RF/MICROWAVE SWITCHES

DC to 67 GHz

SPDT, DPDT (transfer), SP4T, SP6T, SP8T, and SP10T mechanical and solid state RF switches for 50-ohm and 75-ohm systems spanning DC to 67 GHz!

Ultra-reliable mechanical switches capable of extended life up to 10-million switch cycles!
Solid-state switches with extremely fast switching times
USB, Ethernet, and SPI control interfaces available
Coaxial and surface mount formats available

RF/Microwave Switches Products Catalog

Full RF/Microwave Switches catalog in filterable table format

Catalog

RF Solid State Switch Matrix

View our selection of RF Solid State Switch Matrix

Test

RF Mechanical Switch Matrix

View our selection of RF Mechanical Switch Matrix

Test

New Switches

View our latest released Switches

NEW

Special & Custom Switches

Contact our Application Engineers

CUSTOM

RF/MICROWAVE SWITCHES CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

Surface Mount Switches

Connector Switches

Plug-in Switches

Die Switches

Surface Mount Switches

Surface-Mount, SPST/SPDT/SP4T/SP6T, 50 Ohms

Surface Mount, SPDT/SP6T, 75 Ohms

Attenuators / Switches / Bi-Phase, Surface Mount

Surface-Mount, SPST/SPDT/SP4T/SP6T, 50 Ohms

Switches, Surface-Mount, SPST/SPDT/SP4T/SP6T, 50 Ohms

P/N:

Type:

Freq. Low (GHz) :

Freq. Hi (GHz) :

Driver:

Config:

Insertion Loss (dB), Typ. :

Insertion Loss (dB), Max. :

1 dB Compression (dBm), Typ. :

Input IP3 (dBm) Typ. :

In-Out Isolation (dB), Typ. :

In-Out Isolation (dB), Min.:

P/N	Type	Freq. Low (GHz)	Freq. Hi (GHz)	Driver	Config	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.	1 dB Compression (dBm), Typ.	Input IP3 (dBm) Typ.	In-Out Isolation (dB), Typ.	In-Out Isolation (dB), Min.	IMPEDANCE	INTERFACE	SWI_TIME	TECHNOLOGY	TIMESTAMP
CSWA2-63DR+	SPDT	0.50	6.00	CMOS	Absorb	1.1	1.80	27	45	50	44	50	SMT	****	****	2023-07-18-01.01.15.606000
HSWA2-30DR+	SPDT	0.00	3.00	CMOS	Absorb	0.9	1.20	31	55	55	44	50	SMT	****	****	2023-07-18-01.01.15.606000
JSW2-63DR+	SPDT	0.01	6.00	CMOS	Reflect	0.33	0.80	35	59	35	18	50	SMT	****	****	2023-07-18-01.01.15.606000
JSW3-272DR+	SP3T	0.01	2.70	CMOS	Reflect	0.6	0.80	35	59	30	25	50	SMT	****	****	2023-07-18-01.01.15.606000
JSW4-272DR+	SP4T	0.01	2.70	CMOS	Reflect	0.6	0.80	35	59	30	25	50	SMT	****	****	2023-07-18-01.01.15.606000
JSW6-33DR+	SP6T	0.01	2.70	CMOS	Reflect	0.6	0.80	35	59	30	25	50	SMT	****	****	2023-07-18-01.01.15.606000
KSW-2-46+	SPDT	0.00	4.60	-	Reflect	1.0	2.80	20	-	50	28	50	SMT	****	****	2023-07-18-01.01.15.606000
KSWA-2-46+	SPDT	0.00	4.60	-	Absorb	0.9	2.60	20	-	50	25	50	SMT	****	****	2023-07-18-01.01.15.606000
MSW-2-20+	SPDT	0.00	2.00	-	Reflect	0.50	1.30	24	-	34	20	50	SMT	****	****	2023-07-18-01.01.15.606000
MSWA-2-20+	SPDT	0.00	2.00	-	Absorb	0.95	1.50	27	-	40	25	50	SMT	****	****	2023-07-18-01.01.15.606000
RSW-2-25PA+	SPDT	0.00	2.50	-	Reflect	0.7	1.80	28	39	44	26	50	SMT	****	****	2023-07-18-01.01.15.606000
VSW2-33-10W+	SPDT	0.05	3.00	-	Reflect	0.5	0.80	40	56	26	15	50	SMT	****	****	2023-07-18-01.01.15.606000
VSWA2-63DR+	SPDT	0.50	6.00	CMOS	Absorb	1.2	1.90	27	44	46	38	50	SMT	****	****	2023-07-18-01.01.15.606000
M3SWA-2-50DRA+	SPDT	0.50	4.50	CMOS	Absorb	1.2	1.90	27	46	51	0	50	SMT	****	****	2023-07-18-01.01.15.606000
JSW2-63VHDRG+	SPDT	0.01	6.00	CMOS	Reflect	0.36	1.25	37	75	33	15	50	SMT	****	****	2023-07-18-01.01.15.606000
HSWA2-63DR+	SPDT	0.10	6.00	CMOS	Absorb	1.0	1.60	35	65	68	44	50	SMT	****	****	2023-07-18-01.01.15.606000
HSWA4-63DR+	SP4T	0.03	6.00	CMOS	Absorb	1.15	2.50	35	58	52	29	50	SMT	****	****	2023-07-18-01.01.15.606000
MSW2-50+	SPDT	0.00	5.00	-	Reflect	0.70	2.20	23	54	53	24	50	SMT	****	****	2023-07-18-01.01.15.606000
MSWA2-50+	SPDT	0.00	5.00	-	Absorb	0.70	2.40	24	54	53	23	50	SMT	****	****	2023-07-18-01.01.15.606000
JSW2-63VHDRP+	SPDT	0.01	6.00	CMOS	Reflect	0.36	1.25	37	75	33	15	50	SMT	****	****	2023-07-18-01.01.15.606000
M3SWA-2-50DRB+	SPDT	0.00	4.50	CMOS	Absorb	0.6	2.50	25	46.5	56	30	50	SMT	****	****	2023-07-18-01.01.15.606000
M3SW-2-50DRA+	SPDT	0.00	4.50	CMOS	Reflect	0.6	2.50	25	47.3	48	30	50	SMT	****	****	2023-07-18-01.01.15.606000
M3SWA2-63DRC+	SPDT	0.00	6.00	CMOS	Absorb	0.6	2.20	26	46.3	56	30	50	SMT	****	****	2023-07-18-01.01.15.606000

Surface Mount, SPDT/SP6T, 75 Ohms

Switches, Surface Mount, SPDT/SP6T, 75 Ohms

P/N:

Type:

Freq. Low (GHz) :

Freq. Hi (GHz) :

Driver:

Config. :

Insertion Loss (dB), Typ. :

Insertion Loss (dB), Max. :

1 dB Compression (dBm), Typ. :

In-Out Isolation (dB), Typ. :

In-Out Isolation (dB), Min.:

P/N	Type	Freq. Low (GHz)	Freq. Hi (GHz)	Driver	Config.	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.	1 dB Compression (dBm), Typ.	In-Out Isolation (dB), Typ.	In-Out Isolation (dB), Min.	IMPEDANCE	INTERFACE	SWI_TIME	TECHNOLOGY	TIMESTAMP
JSW2-33DR-75+	SPDT	0.005	3.0	CMOS	Reflect	0.40	0.64	35	35	28	75	SMT	****	****	01/01/1970
JSW2-33HDR-75+	SPDT	0.005	3.0	CMOS	Reflect	0.30	0.64	35	35	28	75	SMT	****	****	01/01/1970
JSW4-23DR-75+	SP4T	0.005	2.0	CMOS	Reflect	0.80	1.30	35	32	22	75	SMT	****	****	01/01/1970
JSW5-23DR-75+	SP5T	0.005	2.0	CMOS	Reflect	0.80	1.30	35	32	22	75	SMT	****	****	01/01/1970
JSW6-23DR-75+	SP6T	0.005	2.0	CMOS	Reflect	0.80	1.30	35	32	22	75	SMT	****	****	01/01/1970

Attenuators / Switches / Bi-Phase, Surface Mount

Switches, Attenuators / Switches / Bi-Phase, Surface Mount

P/N:

Freq. Range In Low (MHz):

Freq. Range In Hi (MHz):

Freq. Range Con Low (MHz):

Freq. Range Con Hi (MHz):

Mid-Band Insertion Loss (dB) at ±20 mA, Typ.:

Mid-Band Insertion Loss (dB) at ±20 mA, Max.:

Total Range Insertion Loss (dB) at ±20 mA, Typ.:

Total Range Insertion Loss (dB) at ±20 mA, Max.:

Input Power (dBm) at 1 dB Compr., at ±20 mA:

No Damage Input Power (dBm) at ±20 mA:

In-Out Isolation (dB) at 0 mA, Low Range, Typ.:

In-Out Isolation (dB) at 0 mA, Mid Range, Typ.:

In-Out Isolation (dB) at 0 mA, Upper Range, Typ.:

Bi-Phase X (±20 mA), Amp (dB), Mid-Band, Typ.:

Bi-Phase X (±20 mA), Amp (dB), Total Range, Typ.:

Bi-Phase X (±20 mA), Phase (deg.) deviation from 180, Mid-Band, Typ.:

Bi-Phase X (±20 mA), Phase (deg.) deviation from 180, Total Range, Typ.:

Connector Switches

Coaxial, SPDT/SP4T with/without TTL Drivers

Mechanical Switches, SPDT/SP4T/SP6T/SP8T Transfer, Coaxial

Coaxial, PIN Diode, SPDT/SP4T with TTL Drivers

Coaxial, PIN Diode, SPST/SPDT

Attenuators/Switches/Bi-Phase, Coaxial

Mechanical Switches | USB / Ethernet

Solid State Switches | USB / SPI / I²C / TTL

Coaxial, SPDT/SP4T with/without TTL Drivers

Switches, Coaxial, SPDT/SP4T with/without TTL Drivers

P/N:

Freq. Low (GHz) :

Freq. High (GHz) :

TTL Driver :

Absorbitive :

Reflective :

Insertion Loss (dB), Typ. :

Insertion Loss (dB), Max. :

1 dB Compression (dBm), Typ. :

1 dB Compression (dBm), Min. :

In-Out Isolation (dB), Typ. :

In-Out Isolation (dB), Min.:

Mechanical Switches, SPDT/SP4T/SP6T/SP8T Transfer, Coaxial

Switches, Mechanical Switches, SPDT/SP4T/SP6T/SP8T Transfer

P/N:

Type:

Freq. Low (GHz) :

Freq. High (GHz) :

Insertion Loss (dB) Typ. :

Isolation (dB), Typ. :

VSWR (:1), Typ. :

DC Current (mA) Typ. @ +12V :

DC Current (mA) Typ. @ +24V :

RF Power (W) Max.:

Coaxial, PIN Diode, SPDT/SP4T with TTL Drivers

Switches, Coaxial, PIN Diode, SPDT/SP4T with TTL Drivers

P/N:

Type:

Freq. Low (MHz) :

Freq. High (MHz) :

Insertion Loss Low-Band Typ. (dB) :

Insertion Loss Low-Band Max. (dB) :

Insertion Loss Upper-Band Typ. (dB) :

Insertion Loss Upper-Band Max. (dB) :

In-Out Isolation Frequency Band (dB) 10-100 Typ. :

In-Out Isolation Frequency Band (dB) 10-100 Max. :

In-Out Isolation Frequency Band (dB) 100-1500 Typ. :

In-Out Isolation Frequency Band (dB) 100-1500 Min. :

In-Out Isolation Frequency Band (dB) 1500-3000 Typ. :

In-Out Isolation Frequency Band (dB) 1500-3000 Min.:

Coaxial, PIN Diode, SPST/SPDT

Switches, Coaxial, PIN Diode, SPST/SPDT

P/N:

Freq. Low (MHz) :

Freq. High (MHz) :

Insertion Loss Low-Band Typ. (dB) :

Insertion Loss Low-Band Max. (dB) :

Insertion Loss Upper-Band Typ. (dB) :

Insertion Loss Upper-Band Max. (dB) :

In-Out Isolation Frequency Band (dB) 10-100 Typ. :

In-Out Isolation Frequency Band (dB) 10-100 Min. :

In-Out Isolation Frequency Band (dB) 100-1250 Typ. :

In-Out Isolation Frequency Band (dB) 100-1250 Min. :

In-Out Isolation Frequency Band (dB) 1250-2500 Typ. :

In-Out Isolation Frequency Band (dB) 1250-2500 Min.:

Attenuators/Switches/Bi-Phase, Coaxial

Switches, Attenuators/Switches/Bi-Phase, Coaxial

P/N:

RF Freq. Low (MHz):

RF Freq. Hi (MHz):

Control Freq. Low (MHz) :

Control Freq. Hi (MHz) :

Mid-Band Insertion Loss (dB) at ±20 mA, Typ. :

Mid-Band Insertion Loss (dB) at ±20 mA, Max. :

Total-Band Insertion Loss (dB) at ±20 mA, Typ. :

Total-Band Insertion Loss (dB) at ±20 mA, Max. :

Input Pwr @ 1 dB Compr. at ±20 mA, Typ. :

Max. No Damage Input Pwr :

In-Out Isolation (dB) at 0 mA, Low Range Typ. :

In-Out Isolation (dB) at 0 mA, Low Range Max. :

In-Out Isolation (dB) at 0 mA, Mid-Range Typ. :

In-Out Isolation (dB) at 0 mA, Mid-Range Max. :

In-Out Isolation (dB) at 0 mA, Upper Range Typ. :

In-Out Isolation (dB) at 0 mA, Upper Range Max. :

Bi-Phase ?amp (dB) at ±20 mA, Total Range, Typ. :

Bi-Phase Phase Deviation from 180° at ±20 mA, Total Range, Typ.:

Mechanical Switches | USB / Ethernet

Switches, Mechanical Switches | USB / Ethernet

P/N:

Switch Type :

Number of Switches :

F. Low (GHz) :

F. High (GHz) :

Insertion Loss (dB), Typ. :

Isolation (dB), Typ. :

RF Power (W), Max. :

P/N	Switch Type	Control Interfaces	Number of Switches	F. High (GHz)	Insertion Loss (dB), Typ.	Isolation (dB), Typ.	VSWR_TYP	RL_TYP	RF Power (W), Max.	IMPEDANCE	INTERFACE	CONFIG	SWI_TIME	TECHNOLOGY	TIMESTAMP
RC-1SPDT-A18	SPDT	USB & Ethernet	1	18.00	0.25	85	1.20	20.83	40	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SPDT-A18	SPDT	USB & Ethernet	2	18.00	0.25	85	1.20	20.83	40	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-4SPDT-A18	SPDT	USB & Ethernet	4	18.00	0.25	85	1.20	20.83	40	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-8SPDT-A18	SPDT	USB & Ethernet	8	18.00	0.25	85	1.20	20.83	40	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SP4T-A18	SP4T	USB & Ethernet	1	18.00	0.25	80	1.20	20.83	20	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SP4T-A18	SP4T	USB & Ethernet	2	18.00	0.25	80	1.20	20.83	20	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SP6T-A12	SP6T	USB & Ethernet	2	12.00	0.20	90	1.20	20.83	20	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SP6T-A12	SP6T	USB & Ethernet	1	12.00	0.20	90	1.20	20.83	20	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2MTS-18	Transfer Switch	USB & Ethernet	2	18.00	0.20	86	1.15	23.13	10	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SP6T-26	SP6T	USB & Ethernet	2	26.50	0.25	90	1.35	16.54	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SP4T-40	SP4T	USB & Ethernet	2	40.00	0.30	80	1.30	17.69	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SP4T-26	SP4T	USB & Ethernet	2	26.50	0.20	80	1.35	16.54	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SP6T-40	SP6T	USB & Ethernet	2	40.00	0.40	80	1.70	11.73	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SP6T-26	SP6T	USB & Ethernet	1	26.50	0.25	90	1.35	16.54	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SP6T-40	SP6T	USB & Ethernet	1	40.00	0.40	80	1.70	11.73	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SP4T-40	SP4T	USB & Ethernet	1	40.00	0.30	80	1.30	17.69	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-4SPDT-A26	SPDT	USB & Ethernet	4	26.50	0.54	65	1.25	19.08	20	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SP4T-26	SP4T	USB & Ethernet	1	26.50	0.20	80	1.35	16.54	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-3MTS-18	Transfer Switch	USB & Ethernet	3	18.00	0.20	86	1.15	23.13	10	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SPDT-A26	SPDT	USB & Ethernet	2	26.50	0.6	65	1.25	19.08	20	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SP6T-A18	SP6T	USB & Ethernet	2	18.00	0.40	100	1.43	15.04	20	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SPDT-A26	SPDT	USB & Ethernet	1	26.50	0.6	65	1.25	19.08	20	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SP6T-50	SP6T	USB & Ethernet	1	50.00	0.40	75	1.40	15.56	3	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-1SP4T-50	SP4T	USB & Ethernet	1	50.00	0.40	75	1.30	17.69	3	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2MTS-26	Transfer Switch	USB & Ethernet	2	26.50	0.30	75	1.30	17.69	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2MTS-40	Transfer Switch	USB & Ethernet	2	40.00	0.40	70	1.30	17.69	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-2SPDT-40	SPDT	USB & Ethernet	2	40.00	0.6	65	1.50	13.98	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-3MTS-26	Transfer Switch	USB & Ethernet	3	26.50	0.50	70	1.70	11.73	5	50	CON	****	****	****	2022-01-24-01.01.15.240000
RC-3MTS-40	Transfer Switch	USB & Ethernet	3	40.00	0.50	70	1.50	13.98	5	50	CON	****	****	****	2022-01-24-01.01.15.241000
RCM-1SP8T-26	SP8T	USB & Ethernet	1	26.50	0.3	70	1.35	16.54	5	50	CON	****	****	****	2022-01-24-01.01.15.241000
RCM-2SP8T-26	SP8T	USB & Ethernet	2	26.50	0.3	70	1.35	16.54	5	50	CON	****	****	****	2022-01-24-01.01.15.241000
RCM-1SP8T-12	SP8T	USB & Ethernet	1	12.00	0.2	90	1.30	17.69	20	50	CON	****	****	****	2022-01-24-01.01.15.241000
RCM-2SP8T-12	SP8T	USB & Ethernet	2	12.00	0.2	90	1.30	17.69	20	50	CON	****	****	****	2022-01-24-01.01.15.241000
ZTRC-4SPDT-A18	SPDT	USB & Ethernet	4	18.00	0.25	80	1.20	20.83	20	50	CON	****	****	****	2022-01-24-01.01.15.241000
ZTRC-8SPDT-A18	SPDT	USB & Ethernet	8	18.00	0.25	80	1.20	20.83	20	50	CON	****	****	****	2022-01-24-01.01.15.241000
RC-2SPDT-50	SPDT	USB & Ethernet	2	50.00	0.4	80	1.35	16.54	3	50	CON	****	****	****	2022-01-24-01.01.15.241000
RC-2SP4T-50	SP4T	USB & Ethernet	2	50.00	0.4	75	1.30	17.69	3	50	CON	****	****	****	2022-01-24-01.01.15.241000
RC-2SP6T-50	SP6T	USB & Ethernet	2	50.00	0.40	75	1.30	17.69	3	50	CON	****	****	****	2022-01-24-01.01.15.241000
RC-8SPDT-50	SPDT	USB & Ethernet	8	50.00	0.4	80	1.35	16.54	3	50	CON	****	****	****	2022-01-24-01.01.15.241000
RC-4SPDT-40	SPDT	USB & Ethernet	4	40.00	0.6	65	1.50	13.98	5	50	CON	****	****	****	2022-01-24-01.01.15.241000
RC-4SPDT-50	SPDT	USB & Ethernet	4	50.00	0.4	80	1.35	16.54	3	50	CON	****	****	****	2022-01-24-01.01.15.241000
RC-2SP6T-40R	SP6T	USB & Ethernet	2	40.00	0.40	80	1.30	17.69	5	50	CON	****	****	****	2022-01-24-01.01.15.241000

Solid State Switches | USB / SPI / I²C / TTL

P/N:

Switch Type :

Control Interface :

Number of Switches :

F. Low (MHz) :

F. High (MHz) :

Insertion Loss (dB), Typ :

Isolation (dB), Typ :

VSWR (:1), Typ :

Transition Time (usec), Typ :

Supply Voltage (V), Typ :

Max Input Power (W):

P/N	Switch Type	Control Interface	Number of Switches	F. Low (MHz)	F. High (MHz)	Insertion Loss (dB), Typ	Isolation (dB), Typ	VSWR (:1), Typ	RL_TYP	Transition Time (usec), Typ	Supply Voltage (V), Typ	Max Input Power (W)	IMPEDANCE	INTERFACE	CONFIG	TECHNOLOGY	TIMESTAMP
USB-SP4T-63	SP4T	USB	1	1	6000	1.00	50	1.20	20.83	3.00	USB (5V)	0.50	50	CON	Absorptive	****	24/01/3000
USB-1SP8T-63H	SP8T	USB	1	10	6000	4.00	80	1.25	19.08	0.20	USB (5V)	1.00	50	CON	Absorptive	****	24/01/3000
USB-2SP2T-DCH	SPDT	USB	2	0	8000	1.40	50	1.20	20.83	10.00	USB (5V)	3.15	50	CON	Absorptive	****	24/01/3000
USB-4SP2T-63H	SPDT	USB	4	10	6000	2.00	80	1.25	19.08	0.20	USB (5V)	1.00	50	CON	Absorptive	****	24/01/3000
U2C-1SP4T-63H	SP4T	USB / I�C	1	2	6000	3.70	80	1.25	19.08	0.20	5	1.00	50	CON	Absorptive	****	24/01/4000
U2C-1SP2T-63VH	SPDT	USB / I�C / SPI	1	10	6000	4.00	110	1.30	17.69	0.70	USB (5V) or 12-24	2.00	50	CON	Absorptive	****	24/01/4000
USB-1SP16T-83H	SP16T	USB / TTL	1	1	8000	7.50	100	1.30	17.69	5.00	USB (5V)	1.00	50	CON	Absorptive	****	24/01/4000
USB-2SP4T-63H	SP4T	USB	2	10	6000	2.50	85	1.30	17.69	5.00	USB (5V)	1.00	50	CON	Absorptive	****	24/01/4000
USB-1SP2T-A44	SPDT	USB	1	100	43500	3.00	55	1.50	13.98	0.01	USB (5V)	0.25	50	CON	Absorptive	****	24/01/4000
USB-1SP2T-183	SPDT	USB	1	100	18000	2.50	65	1.20	20.83	0.01	USB (5V)	0.25	50	CON	Absorptive	****	24/01/4000
USB-1SP4T-183	SP4T	USB	1	100	18000	3.60	65	1.20	20.83	0.01	USB (5V)	0.25	50	CON	Absorptive	****	24/01/4000
USB-1SP8T-183	SP8T	USB	1	100	18000	4.50	65	1.35	16.54	0.03	USB (5V)	0.25	50	CON	Absorptive	****	24/01/4000
USB-1SP2T-34	SPDT	USB	1	100	30000	2.80	60	1.40	15.56	0.01	USB (5V)	0.25	50	CON	Absorptive	****	24/01/4000

Plug-in Switches

Plug-In, PIN Diode, SPDT/SP4T with TTL Drivers

Attenuator / Switches / Bi-Phase, Plug-In

Plug-In, PIN Diode, SPDT/SP4T with TTL Drivers

Switches, Plug-In, PIN Diode, SPDT/SP4T with TTL Drivers

P/N:

Type:

Freq. Low (MHz) :

Freq. Hi (MHz) :

Insertion Loss (dB), Low-Band, Typ. :

Insertion Loss (dB), Low-Band, Max. :

Insertion Loss (dB), Upper-Band, Typ. :

Insertion Loss (dB), Upper-Band, Max. :

In-Out Isolation Frequency Band (dB) 10-100 Typ. :

In-Out Isolation Frequency Band (dB) 10-100 Min. :

In-Out Isolation Frequency Band (dB) 100-1500 Typ. :

In-Out Isolation Frequency Band (dB) 100-1500 Min. :

In-Out Isolation Frequency Band (dB) 1500-3000 Typ. :

In-Out Isolation Frequency Band (dB) 1500-3000 Min.:

Attenuator / Switches / Bi-Phase, Plug-In

Switches, Attenuator / Switches / Bi-Phase, Plug-In

P/N:

RF Freq. Low (MHz) :

RF Freq. Hi (MHz) :

Control Freq. Low (MHz) :

Control Freq. Hi (MHz) :

Mid-Band Insertion Loss (dB) at ±20 mA, Typ. :

Mid-Band Insertion Loss (dB) at ±20 mA, Max. :

Total-Band Insertion Loss (dB) at ±20 mA, Typ. :

Total-Band Insertion Loss (dB) at ±20 mA, Max. :

Input Pwr @ 1 dB Compr. at ±20 mA, Typ. :

Max. No Damage Input Pwr :

In-Out Isolation (dB) at 0 mA, Low Range Typ. :

In-Out Isolation (dB) at 0 mA, Low Range Max. :

In-Out Isolation (dB) at 0 mA, Mid-Range Typ. :

In-Out Isolation (dB) at 0 mA, Mid-Range Max. :

In-Out Isolation (dB) at 0 mA, Upper-Range Typ. :

In-Out Isolation (dB) at 0 mA, Upper-Range Max. :

Bi-Phase Amp (dB) at ±20 mA, Total Range, Typ. :

Bi-Phase Phase Deviation from 180° at ±20 mA, Total Range, Typ.:

Die Switches

Switches, Die

P/N:

Freq. Low (GHz) :

Freq. Hi (GHz) :

Config. :

Insertion Loss (dB), Typ. :

Insertion Loss (dB), Max. :

1 dB Compression (dBm), Typ. :

Input IP3 (dBm) Typ. :

In-Out Isolation (dB), Typ. :

In-Out Isolation (dB), Min.:

Product Page:

P/N	TYPE	Freq. Hi (GHz)	Driver	Config.	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.	1 dB Compression (dBm), Typ.	Input IP3 (dBm) Typ.	In-Out Isolation (dB), Typ.	In-Out Isolation (dB), Min.	IMPEDANCE	INTERFACE	SWI_TIME	TECHNOLOGY	TIMESTAMP
M3SWA-250DRBDG+	SPDT	4.50	CMOS	Absorb	0.60	2.50	25.40	46.50	56	30	50	DIE	****	****	2022-01-24-01.01.15.964000
M3SW-250DRA-D+	SPDT	4.50	CMOS	Reflect	0.60	2.50	25.00	47.30	48	30	50	DIE	****	****	2022-01-24-01.01.15.964000
M3SWA263DRC-D+	SPDT	6.00	CMOS	Absorb	0.60	2.20	26.20	46.30	56	30	50	DIE	****	****	2022-01-24-01.01.15.964000

We're here to help!

Fill out the form if you need help choosing a part, need samples or if you have any questions, and we will get back to you as soon as possible.

Mini-Circuits Products

About MCDI & Mini-Circuits

Reference

Contact

Mini-Circuits Products

About MCDI & Mini-Circuits

Reference

Contact

RF/MICROWAVE SWITCHES

DC to 67 GHz

SPDT, DPDT (transfer), SP4T, SP6T, SP8T, and SP10T mechanical and solid state RF switches for 50-ohm and 75-ohm systems spanning DC to 67 GHz!

RF/Microwave Switches Products Catalog

RF Solid State Switch Matrix

RF Mechanical Switch Matrix

New Switches

Special & Custom Switches

RF/MICROWAVE SWITCHES CATALOG

Switches, Surface-Mount, SPST/SPDT/SP4T/SP6T, 50 Ohms

Switches, Surface Mount, SPDT/SP6T, 75 Ohms

Switches, Attenuators / Switches / Bi-Phase, Surface Mount

Switches, Coaxial, SPDT/SP4T with/without TTL Drivers

Switches, Mechanical Switches, SPDT/SP4T/SP6T/SP8T Transfer

Switches, Coaxial, PIN Diode, SPDT/SP4T with TTL Drivers

Switches, Coaxial, PIN Diode, SPST/SPDT

Switches, Attenuators/Switches/Bi-Phase, Coaxial

Switches, Mechanical Switches | USB / Ethernet

Solid State Switches | USB / SPI / I²C / TTL

Switches, Plug-In, PIN Diode, SPDT/SP4T with TTL Drivers

Switches, Attenuator / Switches / Bi-Phase, Plug-In

Switches, Die

We're here to help!

P/N	Freq. Range In Low (MHz)	Freq. Range In Hi (MHz)	Freq. Range Con Hi (MHz)	Mid-Band Insertion Loss (dB) at ±20 mA, Typ.	Mid-Band Insertion Loss (dB) at ±20 mA, Max.	Total Range Insertion Loss (dB) at ±20 mA, Typ.	Total Range Insertion Loss (dB) at ±20 mA, Max.	Input Power (dBm) at 1 dB Compr., at ±20 mA	No Damage Input Power (dBm) at ±20 mA	In-Out Isolation (dB) at 0 mA, Low Range, Typ.	In-Out Isolation (dB) at 0 mA, Mid Range, Typ.	In-Out Isolation (dB) at 0 mA, Upper Range, Typ.	Bi-Phase X (±20 mA), Amp (dB), Mid-Band, Typ.	Bi-Phase X (±20 mA), Amp (dB), Total Range, Typ.	Bi-Phase X (±20 mA), Phase (deg.) deviation from 180, Mid-Band, Typ.	Bi-Phase X (±20 mA), Phase (deg.) deviation from 180, Total Range, Typ.	INTERFACE	TIMESTAMP
RAS-1+	2	400	0.05	1.40	2.40	1.60	3.20	20	25	65	45	32	0.10	0.10	1.00	2.00	Smt	2023-07-18-01.01.11.724000
SYAS-1+	2	400	0.05	1.40	2.00	1.60	3.00	20	25	65	45	35	0.10	0.10	1.00	2.00	Smt	2023-07-18-01.01.11.725000
TFAS-1SM+	2	400	0.05	1.40	2.00	1.60	3.00	20	25	65	45	35	0.10	0.10	1.00	2.00	Smt	2023-07-18-01.01.11.725000

P/N	Freq. Low (GHz)	Freq. High (GHz)	TTL Driver	Absorbitive	Reflective	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.	1 dB Compression (dBm), Typ.	1 dB Compression (dBm), Min.	In-Out Isolation (dB), Typ.	In-Out Isolation (dB), Min.	CONFIG	CONTROL_INTERFACE	IMPEDANCE	INTERFACE	TYPE	SWI_TIME	TECHNOLOGY	TIMESTAMP
ZFSW-2-46	0.00	4.60	-	-	Y	1.00	1.8	17.00	-	50	28	Reflective	****	50	CON	****	****	****	2023-07-18-01.01.16.219000
ZFSWA-2-46	0.00	4.60	-	Y	-	0.90	2.6	17.00	-	50	25	Absorptive	****	50	CON	****	****	****	2023-07-18-01.01.16.219000
ZFSWA2-63DR+	0.50	6.00	Y	Y	-	1.70	2.4	27.00	-	50	35	Absorptive	****	50	CON	****	****	****	2023-07-18-01.01.16.219000
ZFSWA2R-63DR+	0.50	6.00	Y	Y	-	1.70	2.4	27.00	-	50	35	Absorptive	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZX80-DR230+	0.00	3.00	Y	Y	-	0.90	1.6	31.00	28	46	50	Absorptive	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZSW2-272VHDR+	0.03	2.70	Y	-	Y	0.50	1	45.50	-	35	21	Reflective	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZSWA4-63DR+	0.00	6.00	Y	Y	-	1.70	3	35.00	-	57	27	Absorptive	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZSW2-63DR+	0.01	6.00	-	-	Y	0.33	1.5	35.00	-	31	18	Reflective	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZYSW-2-50DR+	0.00	5.00	Y	-	Y	1.40	-	22.00	-	25	-	Reflective	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZYSWA-2-50DR+	0.00	5.00	Y	Y	-	1.40	-	22.00	-	28	17	Absorptive	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZASW-2-50DRA+	0.00	5.00	Y	-	Y	2.20	-	22.00	-	65	35	Reflective	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZASWA-2-50DRA+	0.00	5.00	Y	Y	-	2.20	-	22.00	-	70	40	Absorptive	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZASWA2-50DR-FA+	0.00	5.00	Y	Y	-	2.20	-	22.00	-	70	40	Absorptive	****	50	CON	****	****	****	2023-07-18-01.01.16.220000
ZSW4-E673+	0.01	67.00	Y	-	Y	6.00	-	0.00	-	45	28	Reflective	****	50	CON	****	****	****	2023-07-18-01.01.16.220000

P/N	Type	Freq. High (GHz)	Insertion Loss (dB) Typ.	Isolation (dB), Typ.	VSWR (:1), Typ.	RL_TYP	DC Current (mA) Typ. @ +12V	DC Current (mA) Typ. @ +24V	DC_CURRENT	RF Power (W) Max.	CONTROL_INTERFACE	IMPEDANCE	INTERFACE	CONFIG	SWI_TIME	TECHNOLOGY	TIMESTAMP
MSP2T-18-12+	SPDT Reflective	18	0.25	80	1.20	20.83	180	-	180	10	****	50	CON	****	****	****	2023-07-18-01.01.16.953000
MSP2T-18XL+	SPDT Reflective	18	0.20	80	1.20	20.83	-	80	80	10	****	50	CON	****	****	****	2023-07-18-01.01.16.954000
MSP2TA-18-12+	SPDT Absorptive	18	0.25	80	1.20	20.83	350	-	350	20	****	50	CON	****	****	****	2023-07-18-01.01.16.954000
MSP2TA-18XL+	SPDT Absorptive	18	0.25	80	1.20	20.83	-	175	175	20	****	50	CON	****	****	****	2023-07-18-01.01.16.954000
MSP4TA-18+	SP4T Absorptive	18	0.25	85	1.20	20.83	-	175	175	2	****	50	CON	****	****	****	2023-07-18-01.01.16.954000
MTS-18XL-B+	Transfer Switch	18	0.25	80	1.15	23.13	-	175	175	10	****	50	CON	****	****	****	2023-07-18-01.01.16.954000
MSP8TA-12D+	SP8T Absorptive	12	0.40	90	1.30	17.69	-	85	85	20	****	50	CON	****	****	****	2023-07-18-01.01.16.954000
MSP6TA-12+	SP6T Absorptive	12	0.25	90	1.20	20.83	-	85	85	20	****	50	CON	****	****	****	2023-07-18-01.01.16.954000

P/N	Type	Freq. Low (MHz)	Freq. High (MHz)	Insertion Loss Low-Band Typ. (dB)	Insertion Loss Low-Band Max. (dB)	Insertion Loss Upper-Band Typ. (dB)	Insertion Loss Upper-Band Max. (dB)	In-Out Isolation Frequency Band (dB) 10-100 Typ.	In-Out Isolation Frequency Band (dB) 10-100 Max.	In-Out Isolation Frequency Band (dB) 100-1500 Typ.	In-Out Isolation Frequency Band (dB) 100-1500 Min.	In-Out Isolation Frequency Band (dB) 1500-3000 Typ.	In-Out Isolation Frequency Band (dB) 1500-3000 Min.	ISO_TYP	CONTROL_INTERFACE	IMPEDANCE	INTERFACE	CONFIG	SWI_TIME	TECHNOLOGY	IL_TYP	TIMESTAMP	DataSheet	Product Page
ZSDR-230+	SPDT	10	3,000.00	1.30	1.90	1.80	2.70	60	40	40	28	35	22	0	****	50	CON	Reflective	****	****	0.00	01/01/1970
ZSDR-425+	SP4T	10	2,500.00	1.10	1.70	1.50	2.50	60	40	40	30	35	22	0	****	50	CON	Reflective	****	****	0.00	01/01/1970

P/N	RF Freq. Low (MHz)	RF Freq. Hi (MHz)	Control Freq. Low (MHz)	Control Freq. Hi (MHz)	Mid-Band Insertion Loss (dB) at ±20 mA, Typ.	Mid-Band Insertion Loss (dB) at ±20 mA, Max.	Total-Band Insertion Loss (dB) at ±20 mA, Typ.	Total-Band Insertion Loss (dB) at ±20 mA, Max.	Input Pwr @ 1 dB Compr. at ±20 mA, Typ.	Max. No Damage Input Pwr	In-Out Isolation (dB) at 0 mA, Low Range Typ.	In-Out Isolation (dB) at 0 mA, Low Range Max.	In-Out Isolation (dB) at 0 mA, Mid-Range Typ.	In-Out Isolation (dB) at 0 mA, Mid-Range Max.	In-Out Isolation (dB) at 0 mA, Upper Range Typ.	In-Out Isolation (dB) at 0 mA, Upper Range Max.	Bi-Phase ?amp (dB) at ±20 mA, Total Range, Typ.	Bi-Phase Phase Deviation from 180° at ±20 mA, Total Range, Typ.	ISO_TYP	INTERFACE	TIMESTAMP	DataSheet	Product Page
ZAS-3+	1	200	0	0.05	1.40	2	1.60	2.50	15	30	65	50	50	40	50	35	0.10	1.00	****	Connectorized	2023-07-18-01.01.11.292000
ZMAS-3	1	200	0	0.05	1.40	2	1.60	2.50	15	30	65	50	50	37	50	35	0.10	1.00	****	Connectorized	2023-07-18-01.01.11.292000

P/N	Type	Freq. Low (MHz)	Freq. Hi (MHz)	Insertion Loss (dB), Low-Band, Typ.	Insertion Loss (dB), Low-Band, Max.	Insertion Loss (dB), Upper-Band, Typ.	Insertion Loss (dB), Upper-Band, Max.	In-Out Isolation Frequency Band (dB) 10-100 Typ.	In-Out Isolation Frequency Band (dB) 10-100 Min.	In-Out Isolation Frequency Band (dB) 100-1500 Typ.	In-Out Isolation Frequency Band (dB) 100-1500 Min.	In-Out Isolation Frequency Band (dB) 1500-3000 Typ.	In-Out Isolation Frequency Band (dB) 1500-3000 Min.	IL_TYP	ISO_TYP	CONTROL_INTERFACE	IMPEDANCE	INTERFACE	CONFIG	SWI_TIME	TECHNOLOGY	TIMESTAMP	DataSheet	Product Page
TOSW-230+	SPDT	10	3000	1.30	1.90	1.80	2.70	60	40	40	28	35	22	****	****	****	50	PIN	Reflective	****	****	2022-01-24-01.01.15.612000
TOSW-425+	SP4T	10	2500	1.10	1.70	1.50	2.50	60	40	40	30	35	22	****	****	****	50	PIN	Reflective	****	****	2022-01-24-01.01.15.612000

P/N	RF Freq. Low (MHz)	RF Freq. Hi (MHz)	Control Freq. Hi (MHz)	Mid-Band Insertion Loss (dB) at ±20 mA, Typ.	Mid-Band Insertion Loss (dB) at ±20 mA, Max.	Total-Band Insertion Loss (dB) at ±20 mA, Typ.	Total-Band Insertion Loss (dB) at ±20 mA, Max.	Input Pwr @ 1 dB Compr. at ±20 mA, Typ.	Max. No Damage Input Pwr	In-Out Isolation (dB) at 0 mA, Low Range Typ.	In-Out Isolation (dB) at 0 mA, Low Range Max.	In-Out Isolation (dB) at 0 mA, Mid-Range Typ.	In-Out Isolation (dB) at 0 mA, Mid-Range Max.	In-Out Isolation (dB) at 0 mA, Upper-Range Typ.	In-Out Isolation (dB) at 0 mA, Upper-Range Max.	Bi-Phase Amp (dB) at ±20 mA, Total Range, Typ.	Bi-Phase Phase Deviation from 180° at ±20 mA, Total Range, Typ.	ISO_TYP	INTERFACE	TIMESTAMP
PAS-1+	5	450	0.05	3.50	4.00	3.50	4.70	20	29	65	50	45	35	35	25	0.10	1.20	****	Plugin	2023-07-18-01.01.11.542000
PAS-3+	1	200	0.05	1.40	2.00	1.60	2.50	15	29	65	50	50	40	50	35	0.10	1.00	****	Plugin	2023-07-18-01.01.11.542000
PAS-2000+	100	2,000	0.50	4.20	6.50	5.40	7.50	19	25	30	22	-	-	26	20	0.40	8.00	****	Plugin	2023-07-18-01.01.11.542000

Mini-Circuits Products

About MCDI & Mini-Circuits

Reference

Contact

RF/MICROWAVE SWITCHES

DC to 67 GHz

SPDT, DPDT (transfer), SP4T, SP6T, SP8T, and SP10T mechanical and solid state RF switches for 50-ohm and 75-ohm systems spanning DC to 67 GHz!

RF/Microwave Switches Products Catalog

RF Solid State Switch Matrix

RF Mechanical Switch Matrix

New Switches

Special & Custom Switches

RF/MICROWAVE SWITCHES CATALOG

Switches, Surface-Mount, SPST/SPDT/SP4T/SP6T, 50 Ohms

Switches, Surface Mount, SPDT/SP6T, 75 Ohms

Switches, Attenuators / Switches / Bi-Phase, Surface Mount

Switches, Coaxial, SPDT/SP4T with/without TTL Drivers

Switches, Mechanical Switches, SPDT/SP4T/SP6T/SP8T Transfer

Switches, Coaxial, PIN Diode, SPDT/SP4T with TTL Drivers

Switches, Coaxial, PIN Diode, SPST/SPDT

Switches, Attenuators/Switches/Bi-Phase, Coaxial

Switches, Mechanical Switches | USB / Ethernet

Solid State Switches | USB / SPI / I²C / TTL

Switches, Plug-In, PIN Diode, SPDT/SP4T with TTL Drivers

Switches, Attenuator / Switches / Bi-Phase, Plug-In

Switches, Die

We're here to help!

One last thing...
