RF MODULAR TEST SYSTEMS

Configured Your Way for Fast Delivery

Mini-Circuits’ modular switch systems offer flexibility, customizable functionality and fast turnaround for automated test setups. Choose one of our standard benchtop or rack-mount chassis structures and configure your system with our industry-leading range of rugged and high-performance mechanical switches. Mini-Circuits’ smart modular controller provides a single interface to your system, with complete software and applications support.

  • Built to order with fast turnaround
  • Three chassis options with customizable hardware windows
  • Your choice of switch modules from SPDT to SP8T
  • Frequency ranges up to 50 GHz
  • Configure your system online for a free quote!
RF MODULAR TEST SYSTEMS

RF MODULAR TEST SYSTEMS CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

ZTM SERIES

RF Modular Test Systems

Functional Description:

ZTM-series systems may be outfitted with your choice of mechanical SPDT, SP4T, SP6T, SP8T, and transfer switches as well as programmable attenuators (0-30, 60, 90, 110, and 120 dB) resulting in hundreds of possible configurations. All models are controlled via USB and Ethernet-TCP/IP (HTTP and Telnet protocols), allowing setup flexibility and easy remote test management.

Available Components:

RF Modular Test Systems

Mechanical SPDT

RF Modular Test Systems

Mechanical Transfer

RF Modular Test Systems

Mechanical SPDT

MECHANICAL SP4T

Mechanical SP4T​

MECHANICAL SP6T

Mechanical SP6T​

MECHANICAL SP8T

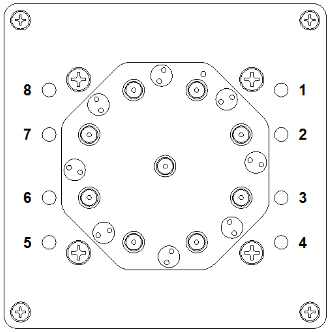

Mechanical SP8T​

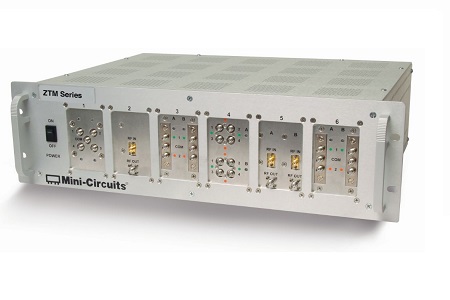

Mini-Circuits’ ZTM series modular switch & attenuator systems offer flexibility and fast turnaround for automated test setups. The design consists of a 19” rack chassis (3U height) comprising up to 12 open hardware slots on the front panel, customizable from a wide range of switch or attenuator options:

  • 6 customizable hardware windows, each of which can be populated with your choice of:

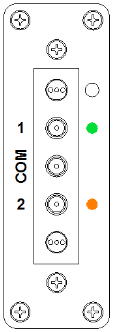

    • Up to 2 SPDT mechanical switches (DC to 18 GHz)

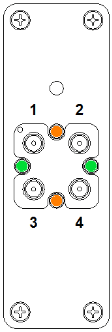

    • Up to 2 mechanical transfer (DPDT) switches (DC to 18 GHz)

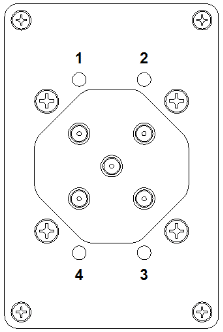

    • SP4T mechanical switch (DC to 18 GHz)

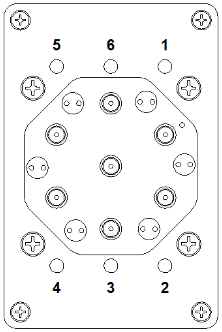

    • SP6T mechanical switch (DC to 12 GHz)
    • Up to 2 programmable attenuators (0 to 30, 60, 90, 110, and 120 dB)
  • Control via USB and Ethernet-TCP/IP (HTTP and Telnet Protocols)
  • User-friendly GUI software included
  • DLLs and complete programming instructions also included
  • Easy maintenance
  • Ultra-Fast Turnaround – Shipment within 2 weeks from order or less!

With the use of Mini-Circuits’ low cost Hand-Flex™ interconnect cables, multiple matrix configurations can be easily created by the user. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our userfriendly GUI application for Windows and a full API with programming instructions for Windows and
Linux environments (both 32-bit and 64-bit systems).


Included accessories:
  • AC power cord
  • USB control cable – 6.8 ft (USB-CBL-AB-7+)
  • Ethernet control cable – 5 ft (CBL-RJ45-MM-5+)
  • Full software & documentation (including GUI, DLL API files, user & programming manual)
  • HT-Series Tight Spot SMA Wrench

Documentation:

Quick Setup Guide  How to connect and get started with Mini-Circuits’ software controlled systems.

Program Examples & Troubleshooting Reference tables and worked examples in a range of programming environments.

App Note-AN-49-001 Summary of software support for Mini-Circuits test equipment.

App Note-VISA Control Instructions for controlling Mini-Circuits test equipment using VISA.



We're here to help!

Fill out the form if you need help choosing a part or if you have any questions, and we will get back to you as soon as possible.

ZTM2 SERIES

ZTM2

Functional Description:

ZTM2-series systems allow you to configure hundreds of possible combinations of mechanical SPDT, SP4T, SP6T, SP8T, and transfer switches, 2-way power splitter / combiners as well as custom component options available on request. All models are controlled via USB and Ethernet-TCP/IP (HTTP and Telnet protocols), allowing setup flexibility and easy remote test management.

Available Components:

SPDT mechanical switches (DC-18GHz)

SPDT mechanical switches (DC-18GHz)

Mechanical transfer switches(DC to 18GHz)

Mechanical transfer switches(DC to 18GHz)​

SP6T mechanical switches (DC to 12GHz)

SP4T mechanical switches (DC to 18GHz)​

SP4T mechanical switches (DC to 18GHz)

SP6T mechanical switches (DC to 12GHz)​

SP8T mechanical switches (DC to 12GHz)

SP8T mechanical switches (DC to 12GHz)​

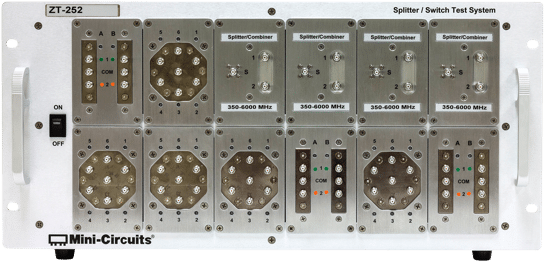

Mini-Circuits’ ZTM2 Series is a 19-inch rack-mountable (5U height), modular switch system with up to 24 customizable hardware slots on the front panel. The platform supports a wide range of high-reliability mechanical switch options and passive components. Choose from:

  • SPDT mechanical switches (DC to 18 or 26.5 GHz)
  • DPDT (transfer) mechanical switches (DC to 18 GHz)
  • SP4T mechanical switches (DC to 18 GHz)
  • SP6T mechanical switches (DC to 12 GHz)
  • SP8T mechanical switches (DC to 12 GHz)
  • 2-way power splitter / combiners (0.35 to 6 GHz)
  • Custom component options (including splitters, couplers and amplifiers) available on request
  • Switches up to 40 GHz available on request

The modular structure allows an extremely wide variety of custom configurations with exceptionally fast turnaround times.
The system can be controlled via USB or Ethernet (supporting both HTTP and Telnet network protocols).
Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).



Included accessories:
  • AC power cord
  • USB control cable – 6.8 ft (USB-CBL-AB-7+)
  • Ethernet control cable – 5 ft (CBL-RJ45-MM-5+)
  • Full software & documentation (including GUI, DLL API files, user & programming manual)
  • HT-Series Tight Spot SMA Wrench

Documentation:

Quick Setup Guide  How to connect and get started with Mini-Circuits’ software controlled systems.

Program Examples & Troubleshooting Reference tables and worked examples in a range of programming environments.

App Note-AN-49-001 Summary of software support for Mini-Circuits test equipment.

App Note-VISA Control Instructions for controlling Mini-Circuits test equipment using VISA.

We're here to help!

Fill out the form if you need help choosing a part or if you have any questions, and we will get back to you as soon as possible.

RCM SERIES

RCM

Functional Description:

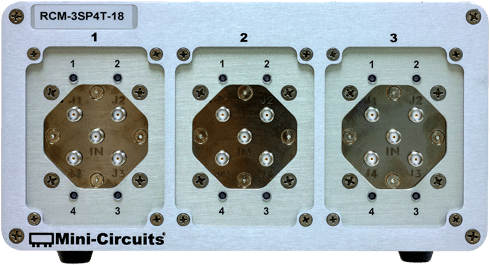

Mini-Circuits’ RCM series modular test systems offer flexibility and fast turnaround for compact test setups. The design consists of a small, light-weight chassis with up to three open hardware windows, each of which may be outfitted with your choice of programmable attenuators or switches.
The system can be controlled via USB or Ethernet (supporting both HTTP and Telnet network protocols). Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).

Available Components:

SPDT mechanical switches (DC-18GHz)

SPDT mechanical switches (DC-40GHz)

Mechanical transfer switches(DC to 18GHz)

SPDT mechanical switches (DC-40GHz)

SP6T mechanical switches (DC to 12GHz)

SP4T mechanical switches (DC to 40GHz)​

SP4T mechanical switches (DC to 18GHz)

SP6T mechanical switches (DC to 40GHz)​

SP8T mechanical switches (DC to 12GHz)

SP8T mechanical switches (DC to 40GHz)​

Included accessories:
  • AC power cord
  • USB control cable – 6.8 ft (USB-CBL-AB-7+)
  • Ethernet control cable – 5 ft (CBL-RJ45-MM-5+)
  • Full software & documentation (including GUI, DLL API files, user & programming manual)
Documentation:

Program Examples & Troubleshooting Reference tables and worked examples in a range of programming environments.

App Note-AN-49-001 Summary of software support for Mini-Circuits test equipment.

App Note-VISA Control Instructions for controlling Mini-Circuits test equipment using VISA.



RCM 100 Series

RF Modular Test Systems

Mini-Circuits’ RCM-100 series multi-channel programmable attenuator systems offer flexibility and fast turnaround for compact test setups. The design consists of a small, light-weight chassis comprising up to three open hardware windows, supporting a flexible choice of programmable attenuator options, with exceptionally fast turnaround time:

  • 4 – 6 programmable attenuator channels
  • 0 to 30, 60, 90 or 110 dB attenuation range per channel (1 – 6000 MHz)
  • 0 to 120 dB attenuation range per channel (1 – 4000 MHz)
  • Models up to 8 GHz also available on request


Datasheet | User Manual | Programming Manual


With the use of Mini-Circuits’ low cost Hand-Flex™ interconnect cables, multiple matrix configurations can be easily created by the user. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our userfriendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).


Current catalog range of RCM100 multi-channel attenuator systems:

RCM 100





We're here to help!

Fill out the form if you need help choosing a part or if you have any questions, and we will get back to you as soon as possible.

RCM 200 Series

RF Modular Test Systems
Mini-Circuits’ RCM-200 series multi-function switch systems offer flexibility and fast turnaround for compact test setups. The design consists of a small, light-weight chassis comprising up to three open hardware windows, supporting a flexible range of switch options up to 40 GHz:
  • Up to 6 mechanical SPDT or transfer switches
  • Up to 3 mechanical SP4T or SP6T switches
  • Up to 2 mechanical SP8T switches
  • Custom combinations of SPDT, SP4T, SP6T and transfer switches


Datasheet | User Manual | Programming Manual

With the use of Mini-Circuits’ low cost Hand-Flex™ interconnect cables, multiple matrix configurations can be easily created by the user. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our userfriendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).

Current catalog range of RCM200 multi-channel attenuator systems:

RCM200

We're here to help!

Fill out the form if you need help choosing a part or if you have any questions, and we will get back to you as soon as possible.
