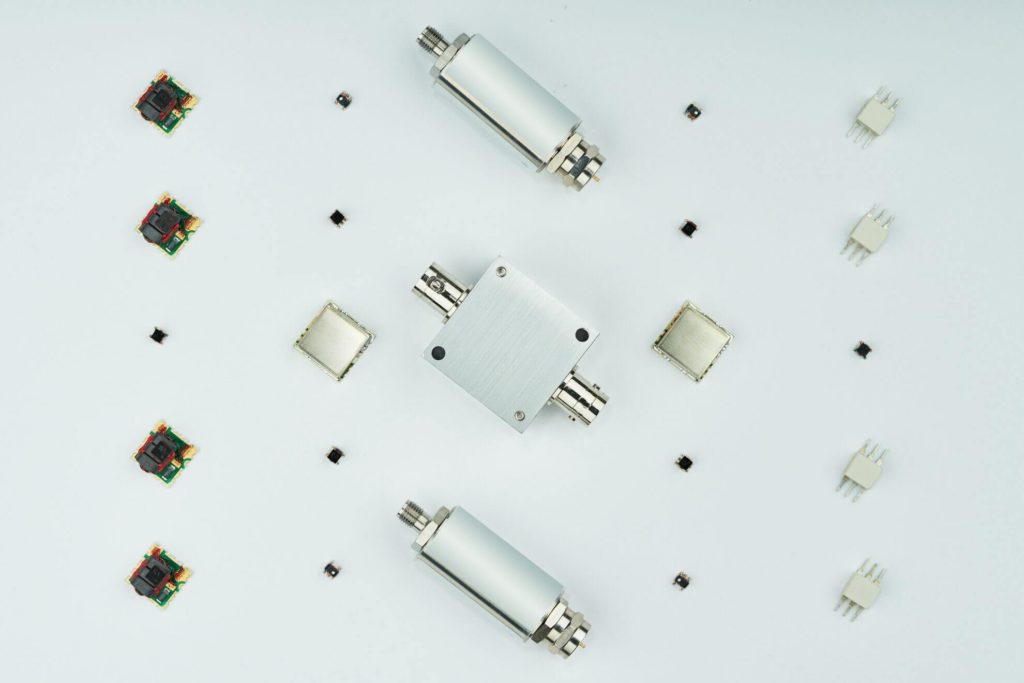

RF TRANSFORMERS AND BALUNS

DC TO 24 GHZ

Over 400 transformer and balun models in a wide variety of DC passing and DC isolated configurations for single-ended and balanced/differential transmission lines from dc to 24 GHz!

Wide selection of LTCC, core and wire and MMIC designs
Step-down and step-up impedance
ratios from 0.1 to 36
Connectorized, surface mount and
MMIC die formats

RF TRANSFORMERS AND BALUNS LIST

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

	Freq. Low (MHz)	Freq. High (MHz)	Impedance (Ω)	Impedance Ratio	Interface	Technology	Configuration
Model Number	Freq. Low (MHz)	Freq. High (MHz)	Impedance (Ω)	Impedance Ratio	Interface	Technology	Configuration	Datasheet	Product link
ADT1-1+	0.1500	400	50	1.0000	SMT	CORE & WIRE	C
ADT1-1WT+	0.4000	800	75	1.0000	SMT	CORE & WIRE	A
ADT1-1WT-1+	1.0000	400	75	1.0000	SMT	CORE & WIRE	A
ADT1-6T+	0.0300	125	50	1.0000	SMT	CORE & WIRE	A
ADT1.5-1+	0.5000	650	50	1.5000	SMT	CORE & WIRE	A
ADT1.5-2+	0.3000	225	50	1.5000	SMT	CORE & WIRE	C
ADT1.5-17+	0.5000	1,700	50	1.5000	SMT	CORE & WIRE	D
ADT1.5-122+	20.0000	1,200	50	1.5000	SMT	CORE & WIRE	K
ADT2-1T+	0.4000	450	50	2.0000	SMT	CORE & WIRE	A
ADT2-1T-1P+	8.0000	600	50	2.0000	SMT	CORE & WIRE	A
ADT3-1T+	1.0000	500	50	3.0000	SMT	CORE & WIRE	A
ADT3-1T-75+	1.0000	500	75	3.0000	SMT	CORE & WIRE	A
ADT3-6T+	0.0600	400	50	3.0000	SMT	CORE & WIRE	A
ADT4-1T+	9.0000	625	50	4.0000	SMT	CORE & WIRE	A
ADT4-1WT+	2.0000	775	50	4.0000	SMT	CORE & WIRE	A
ADT4-5WT+	0.3000	500	50	4.0000	SMT	CORE & WIRE	A
ADT4-6+	0.0700	250	50	4.0000	SMT	CORE & WIRE	C
ADT4-6T+	0.0600	300	50	4.0000	SMT	CORE & WIRE	A
ADT4-6WT+	0.5000	600	50	4.0000	SMT	CORE & WIRE	A
ADT8-1T+	0.1000	130	50	8.0000	SMT	CORE & WIRE	A
ADT9-1T+	1.0000	250	50	9.0000	SMT	CORE & WIRE	A
ADT16-1T+	1.5000	160	50	16.0000	SMT	CORE & WIRE	A
ADT16-6+	0.2500	105	50	16.0000	SMT	CORE & WIRE	C
ADT16-6T+	0.1000	70	50	16.0000	SMT	CORE & WIRE	A
ADTL1-4-75+	0.5000	1,000	75	1.0000	SMT	CORE & WIRE	G
ADTL1-12+	20.0000	1,200	50	1.0000	SMT	CORE & WIRE	G
ADTL1-15-75+	10.0000	1,500	75	1.0000	SMT	CORE & WIRE	K
ADTL1-18-75+	5.0000	1,800	75	1.0000	SMT	CORE & WIRE	G
ADTL2-18+	30.0000	1,800	50	2.0000	SMT	CORE & WIRE	G
ADTT1-1+	0.3000	300	50	1.0000	SMT	CORE & WIRE	B
ADTT1-6+	0.0150	100	50	1.0000	SMT	CORE & WIRE	B
ADTT1.5-1+	0.2500	300	50	1.5000	SMT	CORE & WIRE	B
ADTT3-2+	0.2000	210	50	3.0000	SMT	CORE & WIRE	B
ADTT4-1+	0.2000	120	50	4.0000	SMT	CORE & WIRE	B
FT-1.5-1 (+)	0.1000	400	50	1.5000	CON	CORE & WIRE	D
FT-1.5-232+	0.5000	2,350	50	1.5000	CON	CORE & WIRE	D
FTB-1-1+	0.2000	500	50	1.0000	CON	CORE & WIRE	E
FTB-1-1-75 (+)	0.5000	500	75	1.0000	CON	CORE & WIRE	E
FTB-1-6+	0.0100	125	50	1.0000	CON	CORE & WIRE	E
JT-1975+	0.0400	80	50	2.5000	SMT	CORE & WIRE	A
JTX-2-10T+	50.0000	1,000	75	2.0000	SMT	CORE & WIRE	A
JTX-2-10TA+	50.0000	1,000	75	2.0000	SMT	CORE & WIRE	A
JTX-4-10T+	50.0000	1,000	50	4.0000	SMT	CORE & WIRE	A
MTX2-73+	2,000.0000	7,000	50	2.0000	SMT	MMIC	J
MTX2-143+	5,500.0000	13,500	50	2.0000	SMT	MMIC	J
NCR2-113+	3,500.0000	11,000	50	2.0000	SMT	LTCC	J
NCR2-123+	4,700.0000	12,000	50	2.0000	SMT	LTCC	J
NCR2-183+	12,000.0000	18,000	50	2.0000	SMT	LTCC	E1
NCS1-23+	1,300.0000	2,000	50	1.0000	SMT	LTCC	R
NCS1-63+	4,900.0000	6,000	50	1.0000	SMT	LTCC	R
NCS1-112+	700.0000	1,100	50	1.0000	SMT	LTCC	J
NCS1-222-75+	950.0000	2,200	75	1.0000	SMT	LTCC	R
NCS1-292+	1,650.0000	2,850	50	1.0000	SMT	LTCC	J
NCS1-332+	700.0000	3,300	50	1.0000	SMT	LTCC	R
NCS1-422+	3,300.0000	4,000	50	1.0000	SMT	LTCC	R
NCS1.5-232+	400.0000	2,300	50	1.5000	SMT	LTCC	J
NCS2-33+	1,500.0000	3,100	50	2.0000	SMT	LTCC	J
NCS2-33D+	2,400.0000	2,500	50	2.0000	SMT	LTCC	J
NCS2-62+	390.0000	590	50	2.0000	SMT	LTCC	J
NCS2-83+	3,000.0000	8,000	50	2.0000	SMT	LTCC	R
NCS2-222+	1,275.0000	2,200	50	2.0000	SMT	LTCC	J
NCS2-222-2+	1,275.0000	2,200	50	2.0000	SMT	LTCC	J
NCS2-232+	900.0000	2,300	50	2.0000	SMT	LTCC	R
NCS2-392+	3,000.0000	3,900	50	2.0000	SMT	LTCC	R
NCS2-592+	4,900.0000	5,875	50	2.0000	SMT	LTCC	R
NCS2-622+	5,600.0000	6,200	50	2.0000	SMT	LTCC	R
NCS2-771+	240.0000	770	50	2.0000	SMT	LTCC	J
NCS2-771-75+	240.0000	770	75	2.0000	SMT	LTCC	J
NCS3-72+	250.0000	760	50	3.0000	SMT	LTCC	J
NCS3-272+	2,250.0000	2,725	50	3.0000	SMT	LTCC	J
NCS4-63+	4,500.0000	6,000	50	4.0000	SMT	LTCC	J
NCS4-102+	700.0000	1,000	50	4.0000	SMT	LTCC	J
NCS4-232+	1,600.0000	2,300	50	4.0000	SMT	LTCC	J
NCS4-272+	2,300.0000	2,700	50	4.0000	SMT	LTCC	J
NCS4-442+	3,300.0000	4,200	50	2.0000	SMT	LTCC	R
SCTX1-83-2W+	10.0000	8,000	50	1.0000	SMT	CORE & WIRE	G
SCTX1.33-33-2W+	10.0000	3,000	75	1.3300	SMT	CORE & WIRE	G
SCTX2-93-2W+	10.0000	9,000	50	2.0000	SMT	CORE & WIRE	G
SCTX4-32HP-20W+	1.0000	310	50	4.0000	SMT	CORE & WIRE	D1
SFMP-5075+	0.0000	2,500	50	1.5000	CON	CORE & WIRE	D
SYTX1-52HP-15W+	20.0000	520	50	1.0000	SMT	CORE & WIRE	G
SYTX2-52HP-20W+	30.0000	520	50	2.0000	SMT	CORE & WIRE	D
SYTX2-61HP+	10.0000	60	50	0.5000	SMT	CORE & WIRE	C
SYTX4-13HP+	30.0000	1,000	50	4.0000	SMT	CORE & WIRE	H
T-622+	0.1000	200	50	1.0000	SMT	CORE & WIRE	F
T-622-KK81+	0.1000	200	50	1.0000	SMT	CORE & WIRE	F
T-622-X65	0.1000	200	50	1.0000	PIN	CORE & WIRE	F
T-626+	0.0100	10	50	1.0000	SMT	CORE & WIRE	F
T-626-KK81+	0.0100	10	50	1.0000	SMT	CORE & WIRE	F
T-626-X65	0.0100	10	50	1.0000	PIN	CORE & WIRE	F
T-626-X65+	0.0100	10	50	1.0000	SMT	CORE & WIRE	F
T1-1+	0.1500	400	50	1.0000	SMT	CORE & WIRE	C
T1-1-KK81+	0.1500	400	50	1.0000	SMT	CORE & WIRE	C
T1-1-X65+	0.1500	400	50	1.0000	PIN	CORE & WIRE	C
T1-1T+	0.0800	200	50	1.0000	SMT	CORE & WIRE	A
T1-1T-KK81+	0.0800	200	50	1.0000	SMT	CORE & WIRE	A
T1-1T-X65 (+)	0.0800	200	50	1.0000	PIN	CORE & WIRE	A
T1-6+	0.0100	150	50	1.0000	SMT	CORE & WIRE	C
T1-6-KK81+	0.0100	150	50	1.0000	SMT	CORE & WIRE	C
T1-6-X65+	0.0100	150	50	1.0000	PIN	CORE & WIRE	C
T1-6T+	0.0150	300	50	1.0000	SMT	CORE & WIRE	A
T1-6T-KK81+	0.0150	300	50	1.0000	SMT	CORE & WIRE	A
T1-6T-X65+	0.0150	300	50	1.0000	PIN	CORE & WIRE	A
T1.5-1+	0.1000	300	50	1.5000	SMT	CORE & WIRE	C
T1.5-1-KK81+	0.1000	300	50	1.5000	SMT	CORE & WIRE	C
T1.5-1-X65+	0.1000	300	50	1.5000	PIN	CORE & WIRE	C
T1.5-6+	0.0200	100	50	1.5000	SMT	CORE & WIRE	C
T1.5-6-KK81+	0.0200	100	50	1.5000	SMT	CORE & WIRE	C
T1.5-6-X65+	0.0200	100	50	1.5000	PIN	CORE & WIRE	C
T2-1+	0.0500	600	50	2.0000	SMT	CORE & WIRE	D
T2-1-2W+	5.0000	120	50	2.0000	SMT	CORE & WIRE	C
T2-1-2W-KK81+	5.0000	120	50	2.0000	SMT	CORE & WIRE	C
T2-1-2W-X65 (+)	5.0000	120	50	2.0000	PIN	CORE & WIRE	C
T2-1-KK81+	0.0500	600	50	2.0000	SMT	CORE & WIRE	D
T2-1-X65 (+)	0.0500	600	50	2.0000	PIN	CORE & WIRE	D
T2-1T+	0.0700	200	50	2.0000	SMT	CORE & WIRE	A
T2-1T-KK81+	0.0700	200	50	2.0000	SMT	CORE & WIRE	A
T2-1T-X65 (+)	0.0700	200	50	2.0000	PIN	CORE & WIRE	A
T2-613-1+	0.0700	200	50	1.0000	SMT	CORE & WIRE	F
T2-613-1-KK81+	0.0700	200	50	1.0000	SMT	CORE & WIRE	F
T2-613-1-X65 (+)	0.0700	200	50	1.0000	PIN	CORE & WIRE	F
T2.5-6-KK81+	0.0100	100	50	2.5000	SMT	CORE & WIRE	C
T2.5-6T+	0.0100	100	50	2.5000	SMT	CORE & WIRE	A
T2.5-6T-KK81+	0.0100	100	50	2.5000	SMT	CORE & WIRE	A
T2.5-6T-X65 (+)	0.0100	100	50	2.5000	PIN	CORE & WIRE	A
T3-1+	0.5000	800	50	3.0000	SMT	CORE & WIRE	D
T3-1-KK81+	0.5000	800	50	3.0000	SMT	CORE & WIRE	D
T3-1-X65+	0.5000	800	50	3.0000	PIN	CORE & WIRE	D
T3-1T+	0.0500	250	50	3.0000	SMT	CORE & WIRE	A
T3-1T-KK81+	0.0500	250	50	3.0000	SMT	CORE & WIRE	A
T3-1T-X65+	0.0500	250	50	3.0000	PIN	CORE & WIRE	A
T4-1+	0.2000	350	50	4.0000	SMT	CORE & WIRE	A
T4-1-2W+	10.0000	250	50	4.0000	SMT	CORE & WIRE	C
T4-1-2W-KK81+	10.0000	250	50	4.0000	SMT	CORE & WIRE	C
T4-1-2W-X65 (+)	10.0000	250	50	4.0000	PIN	CORE & WIRE	C
T4-1-KK81+	0.2000	350	50	4.0000	SMT	CORE & WIRE	A
T4-1-X65 (+)	0.2000	350	50	4.0000	PIN	CORE & WIRE	A
T4-1H+	10.0000	350	50	4.0000	SMT	CORE & WIRE	A
T4-1H-KK81+	10.0000	350	50	4.0000	SMT	CORE & WIRE	A
T4-2+	0.2000	600	50	4.0000	SMT	CORE & WIRE	D
T4-2-KK81+	0.2000	600	50	4.0000	SMT	CORE & WIRE	D
T4-2-X65 (+)	0.2000	600	50	4.0000	PIN	CORE & WIRE	D
T4-6+	0.0200	200	50	4.0000	SMT	CORE & WIRE	C
T4-6-KK81+	0.0200	200	50	4.0000	SMT	CORE & WIRE	C
T4-6-X65 (+)	0.0200	200	50	4.0000	PIN	CORE & WIRE	C
T4-6T+	0.0200	250	50	4.0000	SMT	CORE & WIRE	A
T4-6T-KK81+	0.0200	250	50	4.0000	SMT	CORE & WIRE	A
T4-6T-X65 (+)	0.0200	250	50	4.0000	PIN	CORE & WIRE	A
T5-1T+	0.3000	300	50	5.0000	SMT	CORE & WIRE	A
T5-1T-KK81+	0.3000	300	50	5.0000	SMT	CORE & WIRE	A
T5-1T-X65 (+)	0.3000	300	50	5.0000	PIN	CORE & WIRE	A
T8-1+	0.1500	250	50	8.0000	SMT	CORE & WIRE	D
T8-1-KK81+	0.1500	250	50	8.0000	SMT	CORE & WIRE	D
T8-1-X65 (+)	0.1500	250	50	8.0000	PIN	CORE & WIRE	D
T8-1T+	0.3000	140	50	8.0000	SMT	CORE & WIRE	A
T8-1T-KK81+	0.3000	140	50	8.0000	SMT	CORE & WIRE	A
T8-1T-X65 (+)	0.3000	140	50	8.0000	PIN	CORE & WIRE	A
T9-1+	0.1500	200	50	9.0000	SMT	CORE & WIRE	C
T9-1-KK81+	0.1500	200	50	9.0000	SMT	CORE & WIRE	C
T9-1-X65 (+)	0.1500	200	50	9.0000	PIN	CORE & WIRE	C
T13-1T+	0.3000	120	50	13.0000	SMT	CORE & WIRE	A
T13-1T-KK81+	0.3000	120	50	13.0000	SMT	CORE & WIRE	A
T13-1T-X65+	0.3000	120	50	13.0000	PIN	CORE & WIRE	A
T14-1+	0.2000	150	50	14.0000	SMT	CORE & WIRE	D
T14-1-KK81+	0.2000	150	50	14.0000	SMT	CORE & WIRE	D
T14-1-X65+	0.2000	150	50	14.0000	PIN	CORE & WIRE	D
T16-1+	0.3000	120	50	16.0000	SMT	CORE & WIRE	C
T16-1-KK81+	0.3000	120	50	16.0000	SMT	CORE & WIRE	C
T16-1-X65 (+)	0.3000	120	50	16.0000	PIN	CORE & WIRE	C
T16-6T+	0.0300	75	50	16.0000	SMT	CORE & WIRE	A
T16-6T-KK81+	0.0300	75	50	16.0000	SMT	CORE & WIRE	A
T16-6T-X65 (+)	0.0300	75	50	16.0000	PIN	CORE & WIRE	A
T36-1+	0.0300	20	50	36.0000	SMT	CORE & WIRE	C
T36-1-KK81+	0.0300	20	50	36.0000	SMT	CORE & WIRE	C
T36-1-X65 (+)	0.0300	20	50	36.0000	PIN	CORE & WIRE	C
TC1-1+	1.5000	500	50	1.0000	SMT	CORE & WIRE	C
TC1-1-13M+	4.5000	3,000	50	1.0000	SMT	CORE & WIRE	G
TC1-1-13M-75+	4.5000	3,000	75	1.0000	SMT	CORE & WIRE	G
TC1-1-13M-75X+	4.5000	3,000	75	1.0000	SMT	CORE & WIRE	G
TC1-1-13MG2+	4.5000	3,000	50	1.0000	SMT	CORE & WIRE	G
TC1-1-13MX+	4.5000	3,000	50	1.0000	SMT	CORE & WIRE	G
TC1-1-43+	650.0000	4,000	50	1.0000	SMT	CORE & WIRE	G
TC1-1-43X+	650.0000	4,000	50	1.0000	SMT	CORE & WIRE	G
TC1-1G2+	1.5000	500	50	1.0000	SMT	CORE & WIRE	C
TC1-1T+	0.4000	500	50	1.0000	SMT	CORE & WIRE	A
TC1-1T-75X+	5.0000	120	75	1.0000	SMT	CORE & WIRE	A
TC1-1TG2+	0.4000	500	50	1.0000	SMT	CORE & WIRE	A
TC1-1TX+	0.4000	500	50	1.0000	SMT	CORE & WIRE	A
TC1-1X+	1.5000	500	50	1.0000	SMT	CORE & WIRE	C
TC1-6+	0.1500	350	50	1.0000	SMT	CORE & WIRE	C
TC1-6X+	0.1500	350	50	1.0000	SMT	CORE & WIRE	C
TC1-15+	350.0000	1,500	50	1.0000	SMT	CORE & WIRE	G
TC1-15G2+	350.0000	1,500	50	1.0000	SMT	CORE & WIRE	G
TC1-15X+	350.0000	1,500	50	1.0000	SMT	CORE & WIRE	G
TC1-33-75G2+	5.0000	3,000	75	1.0000	SMT	CORE & WIRE	K
TC1-42+	0.2500	400	50	1.0000	SMT	CORE & WIRE	C
TC1-42X+	0.2500	400	50	1.0000	SMT	CORE & WIRE	C
TC1.33-1T-75+	3.0000	500	75	1.3300	SMT	CORE & WIRE	A
TC1.33-1T-75X+	3.0000	500	75	1.3300	SMT	CORE & WIRE	A
TC1.33-282+	5.0000	2,800	50	1.3300	SMT	CORE & WIRE	K
TC1.33-282X+	5.0000	2,800	50	1.3300	SMT	CORE & WIRE	K
TC1.5-1+	0.5000	2,200	50	1.5000	SMT	CORE & WIRE	D
TC1.5-1G2+	0.5000	2,200	50	1.5000	SMT	CORE & WIRE	D
TC1.5-1X+	0.5000	2,200	50	1.5000	SMT	CORE & WIRE	D
TC1.5-52T+	0.5000	550	50	1.5000	SMT	CORE & WIRE	A
TC1.5-52TG2+	0.5000	550	50	1.5000	SMT	CORE & WIRE	A
TC1.5-52TX+	0.5000	550	50	1.5000	SMT	CORE & WIRE	A
TC2-1T+	3.0000	300	50	2.0000	SMT	CORE & WIRE	A
TC2-1TG2+	3.0000	300	50	2.0000	SMT	CORE & WIRE	A
TC2-1TX+	3.0000	300	50	2.0000	SMT	CORE & WIRE	A
TC2-72T+	10.0000	700	50	2.0000	SMT	CORE & WIRE	A
TC2-112G2+	2.0000	1,100	50	0.5000	SMT	CORE & WIRE	D
TC3-1T+	5.0000	300	50	3.0000	SMT	CORE & WIRE	A
TC3-1TG2+	5.0000	300	50	3.0000	SMT	CORE & WIRE	A
TC3-1TX+	5.0000	300	50	3.0000	SMT	CORE & WIRE	A
TC4-1T+	0.5000	300	50	4.0000	SMT	CORE & WIRE	A
TC4-1TG2+	0.5000	300	50	4.0000	SMT	CORE & WIRE	A
TC4-1TX+	0.5000	300	50	4.0000	SMT	CORE & WIRE	A
TC4-1W+	3.0000	800	50	4.0000	SMT	CORE & WIRE	A
TC4-1W-7A+	125.0000	135	50	4.0000	SMT	CORE & WIRE	A
TC4-1WA+	3.0000	800	50	4.0000	SMT	CORE & WIRE	A
TC4-1WG2+	3.0000	800	50	4.0000	SMT	CORE & WIRE	A
TC4-1WX+	3.0000	800	50	4.0000	SMT	CORE & WIRE	A
TC4-6T+	1.5000	600	50	4.0000	SMT	CORE & WIRE	A
TC4-6T-75X+	0.6000	600	75	4.0000	SMT	CORE & WIRE	A
TC4-6TG2+	1.5000	600	50	4.0000	SMT	CORE & WIRE	A
TC4-6TX+	1.5000	600	50	4.0000	SMT	CORE & WIRE	A
TC4-11+	2.0000	1,100	50	0.2500	SMT	CORE & WIRE	D
TC4-11G2+	2.0000	1,100	50	0.2500	SMT	CORE & WIRE	D
TC4-11X+	2.0000	1,100	50	0.2500	SMT	CORE & WIRE	D
TC4-13TX+	100.0000	1,000	50	4.0000	SMT	CORE & WIRE	A
TC4-14+	200.0000	1,400	50	4.0000	SMT	CORE & WIRE	A
TC4-14G2+	200.0000	1,400	50	4.0000	SMT	CORE & WIRE	A
TC4-14X+	200.0000	1,400	50	4.0000	SMT	CORE & WIRE	A
TC4-19+	10.0000	1,900	50	4.0000	SMT	CORE & WIRE	H
TC4-19G2+	10.0000	1,900	50	4.0000	SMT	CORE & WIRE	H
TC4-19X+	10.0000	1,900	50	4.0000	SMT	CORE & WIRE	H
TC4-25+	500.0000	2,500	50	4.0000	SMT	CORE & WIRE	H
TC4-25G2+	500.0000	2,500	50	4.0000	SMT	CORE & WIRE	H
TC4-25X+	500.0000	2,500	50	4.0000	SMT	CORE & WIRE	H
TC4-122-75X+	40.0000	1,250	75	4.0000	SMT	CORE & WIRE	H
TC8-1+	2.0000	500	50	8.0000	SMT	CORE & WIRE	A
TC8-1G2+	2.0000	500	50	8.0000	SMT	CORE & WIRE	A
TC8-1X+	2.0000	500	50	8.0000	SMT	CORE & WIRE	A
TC9-1+	2.0000	200	50	9.0000	SMT	CORE & WIRE	A
TC9-1-75+	0.3000	475	75	0.1100	SMT	CORE & WIRE	D
TC9-1-75G2+	0.3000	475	75	0.1100	SMT	CORE & WIRE	D
TC9-1-75X+	0.3000	475	75	0.1100	SMT	CORE & WIRE	D
TC9-1G2+	2.0000	200	50	9.0000	SMT	CORE & WIRE	A
TC9-1X+	2.0000	200	50	9.0000	SMT	CORE & WIRE	A
TC16-1T+	20.0000	300	50	16.0000	SMT	CORE & WIRE	A
TC16-1TG2+	20.0000	300	50	16.0000	SMT	CORE & WIRE	A
TC16-1TX+	20.0000	300	50	16.0000	SMT	CORE & WIRE	A
TC16-161T+	0.6000	160	50	16.0000	SMT	CORE & WIRE	A
TC16-161TG2+	0.6000	160	50	16.0000	SMT	CORE & WIRE	A
TC16-161TX+	0.6000	160	50	16.0000	SMT	CORE & WIRE	A
TCL1-11+	600.0000	1,100	50	1.0000	SMT	CORE & WIRE	G
TCL1-19+	800.0000	1,900	50	1.0000	SMT	CORE & WIRE	G
TCL1-19G2+	800.0000	1,900	50	1.0000	SMT	CORE & WIRE	G
TCM1-1+	1.5000	500	50	1.0000	SMT	CORE & WIRE	C
TCM1-1X+	1.5000	500	50	1.0000	SMT	CORE & WIRE	C
TCM1-43X+	10.0000	4,000	50	1.0000	SMT	CORE & WIRE	K
TCM1-63AX+	10.0000	6,000	50	1.0000	SMT	CORE & WIRE	K
TCM1-83X+	10.0000	8,000	50	1.0000	SMT	CORE & WIRE	K
TCM2-1T+	3.0000	300	50	2.0000	SMT	CORE & WIRE	A
TCM2-33WX+	10.0000	3,000	50	2.0000	SMT	CORE & WIRE	N
TCM2-33X+	30.0000	3,000	50	2.0000	SMT	CORE & WIRE	N
TCM2-43X+	10.0000	4,000	50	2.0000	SMT	CORE & WIRE	K
TCM2-142-75X+	10.0000	1,400	75	2.0000	SMT	CORE & WIRE	K
TCM2-672X+	1,700.0000	6,700	50	2.0000	SMT	CORE & WIRE	G
TCM3-1T+	2.0000	500	50	3.0000	SMT	CORE & WIRE	A
TCM3-1TX+	2.0000	500	50	3.0000	SMT	CORE & WIRE	A
TCM3-452X+	20.0000	4,500	50	3.0000	SMT	CORE & WIRE	H
TCM4-1W+	3.0000	800	50	4.0000	SMT	CORE & WIRE	A
TCM4-1WX+	3.0000	800	50	4.0000	SMT	CORE & WIRE	A
TCM4-6T+	1.5000	600	50	4.0000	SMT	CORE & WIRE	A
TCM4-14+	200.0000	1,400	50	4.0000	SMT	CORE & WIRE	A
TCM4-19+	10.0000	1,900	50	4.0000	SMT	CORE & WIRE	H
TCM4-25+	500.0000	2,500	50	4.0000	SMT	CORE & WIRE	H
TCM4-452X+	20.0000	4,500	50	4.0000	SMT	CORE & WIRE	H
TCM8-1+	2.0000	500	50	8.0000	SMT	CORE & WIRE	A
TCM9-1+	2.0000	280	50	9.0000	SMT	CORE & WIRE	A
TCML1-11+	600.0000	1,100	50	1.0000	SMT	CORE & WIRE	G
TCML1-11X+	600.0000	1,100	50	1.0000	SMT	CORE & WIRE	G
TCML1-19+	800.0000	1,900	50	1.0000	SMT	CORE & WIRE	G
TCML1-19X+	800.0000	1,900	50	1.0000	SMT	CORE & WIRE	G
TCN1-10+	680.0000	1,050	50	1.0000	SMT	LTCC	G
TCN1-23+	1,300.0000	2,300	50	1.0000	SMT	LTCC	G
TCN1-152-75+	950.0000	1,450	75	1.0000	SMT	LTCC	J
TCN2-14+	700.0000	1,400	50	2.0000	SMT	LTCC	G
TCN2-26+	1,600.0000	2,600	50	2.0000	SMT	LTCC	G
TCN2-45+	3,300.0000	4,500	50	2.0000	SMT	LTCC	H
TCN2-122+	600.0000	1,200	50	2.0000	SMT	LTCC	J
TCN3-11+	600.0000	1,100	50	3.0000	SMT	LTCC	G
TCN4-13+	650.0000	1,250	50	4.0000	SMT	LTCC	G
TCN4-22+	1,200.0000	2,200	50	4.0000	SMT	LTCC	J
TCN4-162+	720.0000	1,600	50	4.0000	SMT	LTCC	J
TCW1-33+	2,300.0000	3,000	50	1.0000	SMT	LTCC	R
TCW1-272+	1,700.0000	2,700	50	1.0000	SMT	LTCC	G
TCW1-3901+	3,300.0000	3,900	50	1.0000	SMT	LTCC	G
TCW2-63+	4,900.0000	5,875	50	2.0000	SMT	LTCC	R
TCW2-272+	2,100.0000	2,700	50	2.0000	SMT	LTCC	J
TCW2-392+	3,300.0000	3,900	50	2.0000	SMT	LTCC	R
TMO-1-1+	0.1500	400	50	1.0000	PIN	CORE & WIRE	C
TMO-1-1T+	0.0500	200	50	1.0000	PIN	CORE & WIRE	A
TMO-1-02+	1.0000	800	50	1.0000	PIN	CORE & WIRE	C
TMO-2-1+	0.0500	600	50	2.0000	PIN	CORE & WIRE	D
TMO-2-1T+	0.0700	200	50	2.0000	PIN	CORE & WIRE	A
TMO-2.5-6T+	0.0100	100	50	2.5000	PIN	CORE & WIRE	A
TMO-2.5-6+	0.0100	100	50	2.5000	PIN	CORE & WIRE	C
TMO-3-1T+	0.0500	250	50	3.0000	PIN	CORE & WIRE	A
TMO-4-1+	0.2000	350	50	4.0000	PIN	CORE & WIRE	A
TMO-4-2+	0.2000	600	50	4.0000	PIN	CORE & WIRE	D
TMO-4-6+	0.0200	200	50	4.0000	PIN	CORE & WIRE	C
TMO-5-1T+	0.3000	300	50	5.0000	PIN	CORE & WIRE	A
TMO-9-1+	0.1500	200	50	9.0000	PIN	CORE & WIRE	C
TMO-13-1T+	0.3000	120	50	13.0000	PIN	CORE & WIRE	A
TMO-14-1+	0.2000	150	50	14.0000	PIN	CORE & WIRE	D
TMO-16-1+	0.3000	120	50	16.0000	PIN	CORE & WIRE	C
TO-75+	10.0000	500	50	1.0000	PIN	CORE & WIRE	C
TRS1-23-75+	10.0000	2,200	75	1.0000	SMT	CORE & WIRE	G
TRS1-182-75+	10.0000	1,800	75	1.0000	SMT	CORE & WIRE	K
TRS1.33-1T-75+	1.0000	400	75	1.3300	SMT	CORE & WIRE	A
TRS1.33-132-75+	25.0000	1,300	75	1.3300	SMT	CORE & WIRE	P
TRS2-1T-75+	5.0000	1,200	75	2.0000	SMT	CORE & WIRE	P1
TRS2-32-75+	1.0000	300	75	0.5000	SMT	CORE & WIRE	J1
TRS2-252+	4.0000	2,500	50	2.0000	SMT	CORE & WIRE	D
TT1-6+	0.0040	300	50	1.0000	SMT	CORE & WIRE	B
TT1-6-KK81+	0.0040	300	50	1.0000	SMT	CORE & WIRE	B
TT1-6-X65 (+)	0.0040	300	50	1.0000	PIN	CORE & WIRE	B
TT1.5-1+	0.0750	500	50	1.5000	SMT	CORE & WIRE	B
TT1.5-1-KK81+	0.0750	500	50	1.5000	SMT	CORE & WIRE	B
TT1.5-1-X65 (+)	0.0750	500	50	1.5000	PIN	CORE & WIRE	B
TT2.5-6+	0.0100	50	50	2.5000	SMT	CORE & WIRE	B
TT2.5-6-KK81+	0.0100	50	50	2.5000	SMT	CORE & WIRE	B
TT2.5-6-X65 (+)	0.0100	50	50	2.5000	PIN	CORE & WIRE	B
TT4-1+	0.0500	200	50	3.0000	SMT	CORE & WIRE	B
TT4-1-KK81+	0.0500	200	50	3.0000	SMT	CORE & WIRE	B
TT4-1-X65 (+)	0.0500	200	50	3.0000	PIN	CORE & WIRE	B
TT4-1A+	0.1000	300	50	4.0000	SMT	CORE & WIRE	B
TT4-1A-KK81+	0.1000	300	50	4.0000	SMT	CORE & WIRE	B
TT4-1A-X65 (+)	0.1000	300	50	4.0000	PIN	CORE & WIRE	B
TT16-1-KK81+	0.1000	45	50	16.0000	SMT	CORE & WIRE	B
TT25-1+	0.0200	30	50	25.0000	SMT	CORE & WIRE	B
TT25-1-KK81+	0.0200	30	50	25.0000	SMT	CORE & WIRE	B
TT25-1-X65 (+)	0.0200	30	50	25.0000	PIN	CORE & WIRE	B
TTCM4-4+	0.5000	400	50	4.0000	SMT	CORE & WIRE	B
TTCM4-4X+	0.5000	400	50	4.0000	SMT	CORE & WIRE	B
TTMO-1-1+	0.0050	100	50	1.0000	PIN	CORE & WIRE	B
TTMO-4-1A+	0.1000	300	50	4.0000	PIN	CORE & WIRE	B
TX-2-5-1+	20.0000	1,250	75	2.0000	SMT	CORE & WIRE	A
TX1-1+	0.3000	400	50	1.0000	SMT	CORE & WIRE	C
TX1-R5+	0.8000	500	50	1.0000	SMT	CORE & WIRE	C
TX1.5-1+	0.2500	300	50	1.5000	SMT	CORE & WIRE	C
TX4-62HP+	20.0000	600	50	4.0000	SMT	CORE & WIRE	H
TX9-1+	1.0000	200	50	9.0000	SMT	CORE & WIRE	C
TX16-R3T+	40.0000	300	50	16.0000	SMT	CORE & WIRE	A
TXA4-512HP+	30.0000	512	50	4.0000	SMT	CORE & WIRE	H
Z7550-BFNF+	0.0000	2,500	50	1.5000	CON	CORE & WIRE	Q
Z7550-BMNF+	0.0000	2,500	50	1.5000	CON	CORE & WIRE	Q
Z7550-FFNM+	0.0000	2,300	50	1.5000	CON	CORE & WIRE	Q
Z7550-FFSF+	0.0000	2,500	50	1.5000	CON	CORE & WIRE	Q
Z7550-FMSF+	0.0000	2,300	50	1.5000	CON	CORE & WIRE	Q
Z7550-FMSFDC+	1.0000	2,500	50	1.5000	CON	CORE & WIRE	Q
Z7550-NMNF+	0.0000	2,300	50	1.5000	CON	CORE & WIRE	Q
ADT2-162T+	20.0000	1,600	50	2.0000	SMT	CORE & WIRE	P1
MTX2-73-D+	2,000.0000	7,000	50	2.0000	Die	MMIC	J
MTX2-143-D+	5,500.0000	13,500	50	2.0000	Die	MMIC	J
FT-1.5-1	0.1000	400	50	1.5000	CON	CORE & WIRE	D
FT-1.5-1+	0.1000	400	50	1.5000	CON	CORE & WIRE	D
FTB-1-1-75	0.5000	500	75	1.0000	CON	CORE & WIRE	E
FTB-1-1-75+	0.5000	500	75	1.0000	CON	CORE & WIRE	E
T1-1T-X65	0.0800	200	50	1.0000	PIN	CORE & WIRE	A
T1-1T-X65+	0.0800	200	50	1.0000	PIN	CORE & WIRE	A
T2-1-2W-X65	5.0000	120	50	2.0000	PIN	CORE & WIRE	C
T2-1-2W-X65+	5.0000	120	50	2.0000	PIN	CORE & WIRE	C
T2-1-X65	0.0500	600	50	2.0000	PIN	CORE & WIRE	D
T2-1-X65+	0.0500	600	50	2.0000	PIN	CORE & WIRE	D
T2-1T-X65	0.0700	200	50	2.0000	PIN	CORE & WIRE	A
T2-1T-X65+	0.0700	200	50	2.0000	PIN	CORE & WIRE	A
T2-613-1-X65	0.0700	200	50	1.0000	PIN	CORE & WIRE	F
T2-613-1-X65+	0.0700	200	50	1.0000	PIN	CORE & WIRE	F
T2.5-6T-X65	0.0100	100	50	2.5000	PIN	CORE & WIRE	A
T2.5-6T-X65+	0.0100	100	50	2.5000	PIN	CORE & WIRE	A
T4-1-2W-X65	10.0000	250	50	4.0000	PIN	CORE & WIRE	C
T4-1-2W-X65+	10.0000	250	50	4.0000	PIN	CORE & WIRE	C
T4-1-X65	0.2000	350	50	4.0000	PIN	CORE & WIRE	A
T4-1-X65+	0.2000	350	50	4.0000	PIN	CORE & WIRE	A
T4-2-X65	0.2000	600	50	4.0000	PIN	CORE & WIRE	D
T4-2-X65+	0.2000	600	50	4.0000	PIN	CORE & WIRE	D
T4-6-X65	0.0200	200	50	4.0000	PIN	CORE & WIRE	C
T4-6-X65+	0.0200	200	50	4.0000	PIN	CORE & WIRE	C
T4-6T-X65	0.0200	250	50	4.0000	PIN	CORE & WIRE	A
T4-6T-X65+	0.0200	250	50	4.0000	PIN	CORE & WIRE	A
T5-1T-X65	0.3000	300	50	5.0000	PIN	CORE & WIRE	A
T5-1T-X65+	0.3000	300	50	5.0000	PIN	CORE & WIRE	A
T8-1-X65	0.1500	250	50	8.0000	PIN	CORE & WIRE	D
T8-1-X65+	0.1500	250	50	8.0000	PIN	CORE & WIRE	D
T8-1T-X65	0.3000	140	50	8.0000	PIN	CORE & WIRE	A
T8-1T-X65+	0.3000	140	50	8.0000	PIN	CORE & WIRE	A
T9-1-X65	0.1500	200	50	9.0000	PIN	CORE & WIRE	C
T9-1-X65+	0.1500	200	50	9.0000	PIN	CORE & WIRE	C
T16-1-X65	0.3000	120	50	16.0000	PIN	CORE & WIRE	C
T16-1-X65+	0.3000	120	50	16.0000	PIN	CORE & WIRE	C
T16-6T-X65	0.0300	75	50	16.0000	PIN	CORE & WIRE	A
T16-6T-X65+	0.0300	75	50	16.0000	PIN	CORE & WIRE	A
T36-1-X65	0.0300	20	50	36.0000	PIN	CORE & WIRE	C
T36-1-X65+	0.0300	20	50	36.0000	PIN	CORE & WIRE	C
TRC1-1-122-75+	5.0000	1,250	75	1.0000	SMT	CORE & WIRE	G
TT1-6-X65	0.0040	300	50	1.0000	PIN	CORE & WIRE	B
TT1-6-X65+	0.0040	300	50	1.0000	PIN	CORE & WIRE	B
TT1.5-1-X65	0.0750	500	50	1.5000	PIN	CORE & WIRE	B
TT1.5-1-X65+	0.0750	500	50	1.5000	PIN	CORE & WIRE	B
TT2.5-6-X65	0.0100	50	50	2.5000	PIN	CORE & WIRE	B
TT2.5-6-X65+	0.0100	50	50	2.5000	PIN	CORE & WIRE	B
TT4-1-X65	0.0500	200	50	3.0000	PIN	CORE & WIRE	B
TT4-1-X65+	0.0500	200	50	3.0000	PIN	CORE & WIRE	B
TT4-1A-X65	0.1000	300	50	4.0000	PIN	CORE & WIRE	B
TT4-1A-X65+	0.1000	300	50	4.0000	PIN	CORE & WIRE	B
TT25-1-X65	0.0200	30	50	25.0000	PIN	CORE & WIRE	B
TT25-1-X65+	0.0200	30	50	25.0000	PIN	CORE & WIRE	B
BLGE1-252R+	2,400.0000	2,500	50	1.0000	SMT	LTCC	J
BLGE4-542R+	4,900.0000	5,875	50	4.0000	SMT	LTCC	J
BLJC2-252R+	2,400.0000	2,500	50	2.0000	SMT	LTCC	J
BLJC2-542R+	4,900.0000	5,875	50	2.0000	SMT	LTCC	R
BLJC4-252R+	2,400.0000	2,500	50	4.0000	SMT	LTCC	J
BLJC4-542R+	4,900.0000	5,950	50	4.0000	SMT	LTCC	J
BLNK1-252R+	2,400.0000	2,500	50	1.0000	SMT	LTCC	S
BLNK1-542R+	4,900.0000	5,950	50	1.0000	SMT	LTCC	G
BLNK2-252R+	2,400.0000	2,500	50	2.0000	SMT	LTCC	S
BLNK2-542R+	4,900.0000	5,950	50	2.0000	SMT	LTCC	G
TCW1-392+	3,300.0000	3,900	50	1.0000	SMT	LTCC	J
BLGE2-542R+	4,900.0000	5,875	50	2.0000	SMT	LTCC	R
BLGE4-252R+	2,400.0000	2,500	50	4.0000	SMT	LTCC	J
BLJC1-252R+	2,400.0000	2,500	50	1.0000	SMT	LTCC	R
Z7550-BMBF+	0.0000	2,300	50	1.5000	CON	CORE & WIRE	D1
NCS1-521+	223.0000	520	50	1.0000	SMT	LTCC	S
NCS4-521+	223.0000	520	50	4.0000	SMT	LTCC	R
SYTX2-451-5W+	10.0000	450	50	2.0000	SMT	CORE & WIRE	C
BLGE2-252R+	2,400.0000	2,500	50	2.0000	SMT	LTCC	J
TC1-1T-152X+	5.0000	1,500	50	1.0000	SMT	CORE & WIRE	M1
BLJC1-542R+	4,900.0000	5,950	50	1.0000	SMT	LTCC	J
TCM2-63WX+	30.0000	6,000	50	2.0000	SMT	CORE & WIRE	K
BLGE1-542R+	4,900.0000	5,875	50	1.0000	SMT	LTCC	R
TC1.33-182X-75+	5.0000	1,800	75	1.3300	SMT	CORE & WIRE	M1
TRC1-1K122-75+	20.0000	1,250	75	1.0000	SMT	CORE & WIRE	K
T-622-KK81	0.1000	200	50	1.0000	SMT	CORE & WIRE	F
T-622-X65+	0.1000	200	50	1.0000	PIN	CORE & WIRE	F
T5-1T-KK81	0.3000	300	50	5.0000	SMT	CORE & WIRE	A
MTY2-243+	10,000.0000	24,000	50	2.0000	SMT	MMIC	J
SBTX2-113-2W+	2,600.0000	11,000	50	2.0000	SMT	CORE & WIRE	G
MTY2-243-D+	10,000.0000	24,000	50	2.0000	Die	MMIC	J
SERT4-62HP-50W+	20.0000	600	12	0.2500	SMT	CORE & WIRE	D
TCW1-2700+	700.0000	2,700	50	1.0000	SMT	LTCC	R
TCW1-6000+	3,200.0000	6,000	50	1.0000	SMT	LTCC	R
TCW2-282+	700.0000	2,800	50	2.0000	SMT	LTCC	R
TCW2-6000+	3,100.0000	6,000	50	2.0000	SMT	LTCC	R
TTC1-33W+	4.5000	3,000	50	1.0000	SMT	CORE & WIRE	G
TTC1-33W-75+	30.0000	3,000	75	1.0000	SMT	CORE & WIRE	G
TTC2-63W+	100.0000	6,000	50	2.0000	SMT	CORE & WIRE	G
TRS1.5-182+	10.0000	1,800	50	1.5000	SMT	CORE & WIRE	K
NCS2-282+	625.0000	2,815	50	2.0000	SMT	LTCC	R
TCW4-262+	2,300.0000	2,600	50	4.0000	SMT	LTCC	J
TCW4-582+	5,000.0000	5,800	50	4.0000	SMT	LTCC	R
TCW2-722+	2,400.0000	7,125	50	2.0000	SMT	LTCC	J
TCO1-462+	3,300.0000	5,900	50	1.0000	SMT	LTCC	G
TCO2-532+	4,600.0000	5,900	50	2.0000	SMT	LTCC	G
SCTX4-52HP-20W+	30.0000	512	12	4.0000	SMT	CORE & WIRE	D
TCW2-2700+	500.0000	2,700	50	2.0000	SMT	LTCC	R
Z7550-NFNF+	0.0000	2,500	50	1.5000	CON	CORE & WIRE	D1

COMPANION PRODUCT

Precise break-over Torque Wrench

RELATED ARTICLE

RF Transformers and Baluns

Demystifying Transformers: Baluns and Ununs

NEW RF TRANSFORMERS AND BALUNS

RF Transformers and Baluns

Transformers

TCW2-2700+

Mini-Circuits’ TCW2-2700+ is a tiny ceramic RF balun transformer with

RF Transformers and Baluns

Transformers

TC1-33-75-5+

RF Transformers and Baluns

Transformers

TT1-6-20-X65+

ALL PRODUCT FAMILIES

Menu

Not Sure which model you need?

Just fill your details so we may contact you and assist you in your search for the perfect RF products.
