RF PHASE SHIFTERS

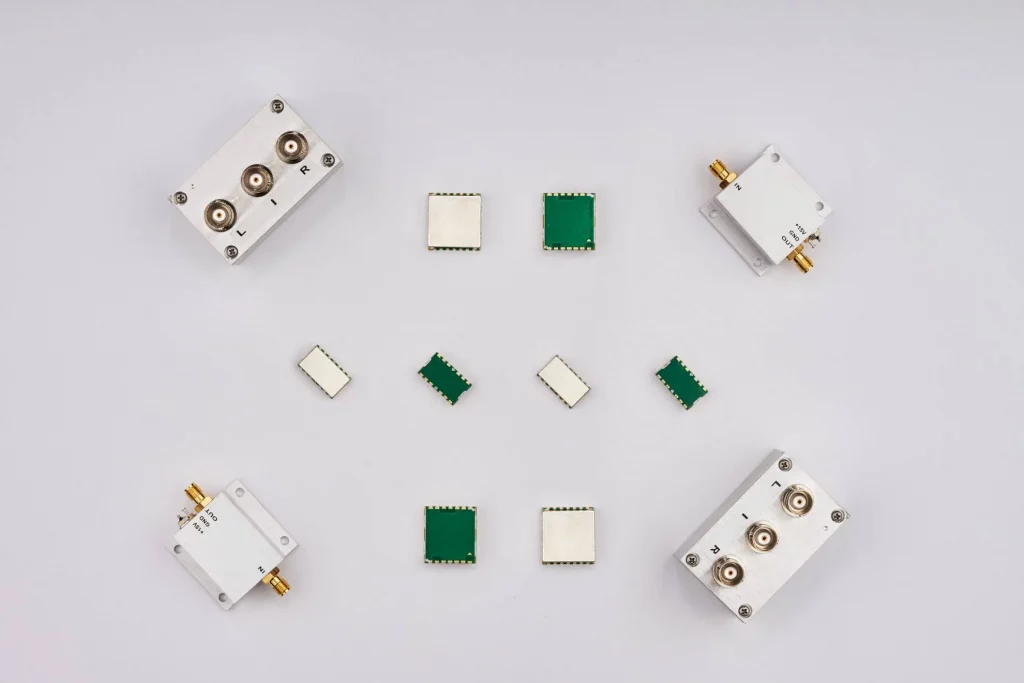

Mini-Circuits’ broad selection of surface-mount and coaxial voltage-variable phase shifters gives you precise phase control up to 360 degrees for a wide range of applications including cellular, radar, test and measurement and more!

Precise 180-degree and 360-degree phase control
Low insertion loss
Rugged coaxial and miniature surface-mount formats available

Phase Shifters Products Catalog

Full Phase Shifters catalog in filterable table format

Catalog

New Phase Shifters

View our latest released Phase Shifters

NEW

Special & Custom Phase Shifters

Contact our Application Engineers

CUSTOM

RF PHASE SHIFTERS CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

Surface Mount, 180 Degree Voltage Variable

Surface Mount, 360 Degree Voltage Variable

Coaxial, 360 Degree Voltage Variable

Surface Mount, 180 Degree Voltage Variable

PHASE SHIFTERS, Surface Mount, 180 Degree Voltage Variable

P/N:

Freq. Low (MHz) :

Freq. Hi (MHz) :

Phase Range (deg.) Min. :

Insertion Loss (dB), Typ. :

Insertion Loss (dB), Max. :

Control Voltage (V) :

Control Bandwidth (kHz), Typ, :

VSWR (:1), Typ. :

VSWR (:1), Max. :

PCB:

P/N	Freq. Low (MHz)	Freq. Hi (MHz)	Phase Range (deg.) Min.	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.	Control Voltage (V)	Control Bandwidth (kHz), Typ,	VSWR (:1), Typ.	VSWR (:1), Max.	RL_TYP	PCB	INTERFACE	TIMESTAMP
JSPHS-23+	1700	2000	180	2.00	3.50	0-15	DC-50	1.50	2.90	13.98	030	SMT	2023-07-18-01.01.14.497000
JSPHS-42+	300	400	180	1.40	2.80	0-12	DC-50	1.30	1.90	17.69	214	SMT	2023-07-18-01.01.14.497000
JSPHS-51+	36	54	180	1.20	2.50	0-12	DC-50	1.20	1.80	20.83	030	SMT	2023-07-18-01.01.14.497000
JSPHS-150+	100	150	180	1.20	2.50	0-12	DC-30	1.20	1.70	20.83	214	SMT	2023-07-18-01.01.14.497000
JSPHS-446+	366	446	180	1.20	2.50	0-12	DC-50	1.20	1.70	20.83	214	SMT	2023-07-18-01.01.14.497000
JSPHS-661+	400	660	180	1.20	2.50	0-12	DC-50	1.20	2.20	20.83	030	SMT	2023-07-18-01.01.14.497000
JSPHS-1000+	700	1000	160	1.20	2.30	0-15	DC-50	1.20	2.60	20.83	030	SMT	2023-07-18-01.01.14.497000
JSPHS-2484+	2150	2484	180	2.00	5.60	0-15	DC-50	1.50	2.00	13.98	030	SMT	2023-07-18-01.01.14.497000
SPHSA-251+	150	250	180	1.50	2.50	0-15	DC-30	1.30	2.50	17.69	408	SMT	2023-07-18-01.01.14.497000

Surface Mount, 360 Degree Voltage Variable

PHASE SHIFTERS, Surface Mount, 360 Degree Voltage Variable

P/N:

Freq. Low (MHz) :

Freq. Hi (MHz) :

Phase Range (deg.) Min. :

Insertion Loss (dB), Typ. :

Insertion Loss (dB), Max. :

Control Voltage (V) :

Control Bandwidth (kHz), Typ, :

VSWR (:1), Typ. :

VSWR (:1), Max. :

PCB Layout:

P/N	Freq. Low (MHz)	Freq. Hi (MHz)	Phase Range (deg.) Min.	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.	Control Voltage (V)	Control Bandwidth (kHz), Typ,	VSWR (:1), Typ.	VSWR (:1), Max.	RL_TYP	PCB Layout	INTERFACE	TIMESTAMP
SPHSA-152+	800	1500	360	2.80	4.50	0-15	DC-50	1.20	2.20	20.83	408	SMT	2023-07-18-01.01.14.680000
SCPHS-13.6+	10	16	360	2.00	3.50	0-12	DC-30	1.20	1.60	20.83	690	SMT	2023-07-18-01.01.14.680000
SCPHS-51+	25	48	360	2.00	5.00	0-15	DC-30	1.30	2.80	17.69	690	SMT	2023-07-18-01.01.14.680000
SCPHS-180+	90	180	360	2.20	5.00	0-15	DC-30	1.70	3.00	11.73	690	SMT	2023-07-18-01.01.14.680000

Coaxial, 360 Degree Voltage Variable

PHASE SHIFTERS, Surface Mount, 360 Degree Voltage Variable

P/N:

Freq. Low (MHz) :

Freq. Hi (MHz) :

Phase Range (deg.) Min. :

Insertion Loss (dB), Typ. :

Insertion Loss (dB), Max. :

Control Voltage (V) :

Control Bandwidth (kHz), Typ, :

VSWR (:1), Typ. :

VSWR (:1), Max.:

P/N	Freq. Low (MHz)	Freq. Hi (MHz)	Phase Range (deg.) Min.	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.	Control Voltage (V)	Control Bandwidth (kHz), Typ,	VSWR (:1), Typ.	VSWR (:1), Max.	RL_TYP	INTERFACE	TIMESTAMP	DataSheet	Product Page
ZXPHS-431-S+	250	430	360	3	5.50	0-15	DC-50	1.50	-	13.98	Connectorized	01/01/1970
