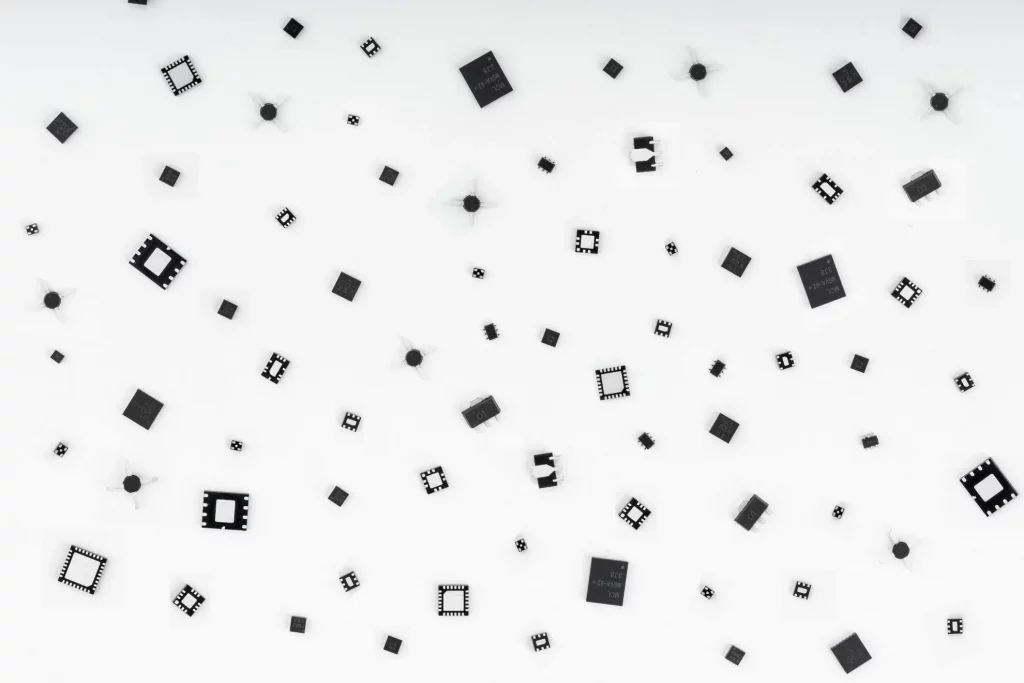

RF MMIC Chips Available in Die Form

Mini-Circuits offers a broad selection of MMIC components in bare die format for your chip and wire integration, including amplifiers, attenuators, couplers, filters, mixers, multipliers, and splitter/combiners.

Wide selection of models spanning DC to mmWave
Available in small quantity gel-paks, partial and full wafers
More models available as unpackaged die on request

MMIC Chips Available in Die Form Products Catalog

Full MMIC Chips Available in Die Form catalog in filterable table format

Catalog

RF MMIC Chips Available in Die Form CATALOG

RF MMIC Amplifiers Die CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

F Low (MHz):

F High (MHz):

Gain (dB) Typ.:

Power Out (dBm) @ 1dB Comp. Typ.:

NF (dB) Typ.:

IP3 (dBm) Typ.:

Input VSWR (:1) Typ.:

Output VSWR (:1) Typ.:

DC Voltage (V):

DC Current (mA):

Features:

P/N	F Low (MHz)	F High (MHz)	Gain (dB) Typ.	Power Out (dBm) @ 1dB Comp. Typ.	NF (dB) Typ.	IP3 (dBm) Typ.	Input VSWR (:1) Typ.	Output VSWR (:1) Typ.	DC Voltage (V)	DC Current (mA)	Features
AVA-5R183-DG+	500	18000	13.30	18.60	2.80	23.30	1.33	1.12	5.00	85.00	Wideband
AVA-24A-DG+	5000	22000	13.00	19.20	5.80	25.00	1.30	1.90	5.00	126.00	Ultra Wideband
AVA-054-DG+	DC	50000	16.10	19.30	4.00	26.90	1.32	1.37	5.00	160.00	Wideband
AVA-183A-DG+	5000	20000	14.50	18.20	4.30	25.00	1.60	1.70	5.00	131.00	Ultra Wideband
AVA-183P-DG+	500	18000	8.10	11.70	4.80	21.50	1.67	1.92	5.00	46.00	Wideband
AVA-183MP-DG+	DC	18000	14.50	23.20	2.80	29.50	1.49	1.25	8.00	160.00	Wideband
AVA-0233LN-DG+	2000	30000	17.00	13.50	2.20	25.70	1.33	1.22	5.00	65.20	Wideband, Low Noise
AVA-2183-DG+	2000	18000	17.20	19.60	5.50	27.40	1.49	1.25	4.00	210.00	Wideband
AVA-20453BL-DG+	20000	45000	23.50	23.00	9.70	30.00	1.30	1.30	5.00	480.00	Wideband
AVA-20453MP-DG+	20000	45000	20.80	20.50	9.20	27.70	1.67	1.28	4.50	300.00	Wideband
AVA-26453LN-DG+	26000	45000	22.20	11.10	2.90	19.20	1.68	1.49	3.00	80.00	Wideband
EHA-24L-DG+	DC	20000	13.40	6.80	5.10	16.60	1.43	1.38	5.00	19.10	Low Current, Wideband
ERA-51SM-DG+	DC	4000	16.60	18.10	4.10	33.00	1.10	1.20	4.50	65.00	Wideband
GALI-39-DG+	DC	7000	19.70	10.50	2.40	22.90	1.79	2.30	3.50	35.00	Wideband
GALI-S66-DG+	DC	3000	18.20	3.30	2.40	19.10	1.10	1.20	3.50	16.00	Low Noise
GVA-60-DG+	10	6000	19.30	18.20	3.90	29.00	1.45	2.20	5.00	93.00	Wideband
GVA-62-DG+	10	6000	15.70	19.40	5.00	32.80	1.40	1.40	5.00	82.00	Ultra Flat Gain
GVA-63-DG+	10	6000	20.50	18.20	3.70	31.90	1.18	1.50	5.00	69.00	Wideband
GVA-84-DG+	DC	7000	16.00	21.00	5.50	35.80	1.28	2.58	5.00	108.00	Wideband, Hi IP3
GVA-123-DG+	10	12000	16.70	15.90	3.90	29.10	1.20	1.20	5.00	48.00	Ultra Wideband
MAR-8A-DG+	DC	1000	31.50	12.50	3.10	25.00	1.40	1.79	3.70	36.00	High Gain
MNA-2A-DG+	500	4500	14.70	17.50	5.40	29.00	1.30	1.50	2.80	79.00	High Directivity
MNA-3A-DG+	500	2500	16.80	10.30	3.90	22.00	1.30	1.20	2.80	32.60	High Directivity
MNA-4A-DG+	500	4500	17.00	16.80	4.50	27.90	1.50	1.50	2.80	70.60	High Directivity
MNA-5A-DG+	500	4500	19.20	8.70	3.20	19.10	1.30	1.60	2.80	32.00	High Directivity
MNA-6A-DG+	500	5500	23.20	19.20	2.70	30.00	1.40	1.20	2.80	92.00	High Directivity
MNA-7A-DG+	1500	6000	17.70	17.10	5.70	28.50	1.80	1.20	2.80	77.00	High Directivity
PGA-103-DG+	50	4000	11.30	22.30	0.80	41.60	1.50	1.40	3.00	60.00	Low Noise
PGA-105-DG+	40	2600	15.10	18.40	1.90	36.90	1.20	1.20	5.00	65.00	Low Noise
PHA-1-DG+	50	6000	13.60	22.50	2.10	39.00	1.60	1.30	5.00	155.00	High IP3
PHA-1H-DG+	50	6000	13.80	22.60	2.20	41.00	1.39	1.23	5.00	132.00	Ultra High Dynamic Range
PHA-13HLN-DG+	1	1000	23.00	19.00	1.10	33.00	1.34	1.30	3.00	71.00	Ultra High Dynamic Range
PHA-23HLN-DG+	30	2000	21.00	19.00	1.20	31.00	1.94	1.48	3.00	72.00	Ultra High Dynamic Range
PHA-83W-DG+	50	8000	15.70	23.30	3.30	35.50	1.57	1.28	5.00	41.00	Ultra High Dynamic Range
PHA-101-DG+	50	1500	15.20	25.80	4.00	45.00	1.82	1.89	9.00	182.00	Medium Power, High IP3
PHA-102-DG+	50	6000	14.50	26.40	3.40	50.00	1.50	1.32	9.00	192.00	Ultra High Dynamic Range
PHA-202-DG+	30	2700	17.00	30.40	3.50	46.10	1.23	1.24	11.00	350.00	Ultra High Dynamic Range
PMA-183PLN-DG+	6000	18000	27.50	9.60	1.20	22.40	1.50	1.50	2.60	57.00	Low Noise
PMA-545G1-DG+	400	2200	31.10	23.40	1.00	36.10	1.92	1.33	5.00	158.00	Low Noise, High Gain and IP3
PMA2-33LN-DG+	400	3000	18.40	17.60	0.47	33.80	1.50	1.10	3.00	58.00	Low Noise
PMA2-43LN-DG+	1100	4000	19.40	20.40	0.60	32.90	1.30	1.70	5.00	53.00	Low Noise
PMA2-63LN-DG+	400	6000	19.30	16.40	0.40	30.10	1.57	1.91	5.00	36.40	Low Noise
PMA2-123LN5-DG+	500	12000	15.10	12.20	1.20	23.40	1.90	1.30	5.00	30.00	Low Noise
PMA2-133LN-DG+	10000	13000	15.30	13.50	1.30	28.60	1.24	1.08	3.00	13.00	Low Noise
PMA2-153LN-DG+	500	15000	16.80	14.80	2.60	26.80	1.97	1.15	5.00	50.00	Ultra Wideband, Low Noise
PMA2-162LN-DG+	700	1600	22.70	20.00	0.50	30.00	1.30	1.30	4.00	55.00	Low Noise
PMA2-183LN-DG+	4000	18000	10.40	14.20	2.50	25.60	1.79	1.43	5.00	48.20	Low Noise
PMA3-14LN-DG+	50	10000	22.60	22.00	1.80	30.40	1.49	1.28	6.00	67.00	Low Noise
PMA3-63GLN-DG+	1800	6000	27.90	14.10	0.70	26.60	1.78	1.92	5.00	69.00	Low Noise
PMA3-83LN-DG+	500	8000	21.90	21.20	1.20	35.00	1.40	1.80	5.00	60.00	Low Noise
PMA3-83LNW-DG+	400	8000	22.60	21.70	1.20	37.00	1.32	1.50	5.00	58.00	Low Noise
PMA3-83MP-DG+	400	8000	21.00	27.80	3.20	37.90	1.78	1.43	8.00	144.00	Wideband
PMA3-453-DG+	10000	45000	25.50	11.70	2.40	23.40	1.92	1.43	4.00	68.00	Wideband
PSA-0012-DG+	50	6000	15.60	22.20	2.40	35.00	1.51	1.34	5.00	92.00	Low Noise High IP3
PSA4-5043-DG+	50	4000	18.40	19.00	0.80	34.00	1.70	1.50	3.00	33.00	Low Noise
SAV-541-DG+	450	6000	19.10	21.00	0.38	33.10	0.00	0.00	3.00	15.00	Low Noise
TAV2-14LN-DG+	50	10000	16.40	18.80	0.70	30.90	2.62	1.58	2.00	20.00	Low Noise
TAV2-501-DG+	400	3900	15.10	27.70	1.30	42.90	0.00	0.00	4.50	280.00	Low Noise
TSS-13HLN-DG+	1	1000	23.00	28.40	1.40	42.90	1.43	1.37	8.00	234.00	Low Noise
TSS-23HLN-DG+	30	2000	21.80	28.50	1.40	42.60	1.92	1.67	8.00	236.00	Low Noise
TSS-44-DG+	22000	43500	17.60	6.90	3.20	12.70	1.37	1.28	4.00	22.00	Wideband
TSS-53LNB-DG+	500	6000	21.40	20.70	1.30	35.00	1.20	1.40	5.00	82.00	Bypass
TSY-172LNB-DG+	30	1700	13.10	17.50	1.40	24.70	1.90	1.50	2.70	7.70	Wideband
TSY-173LN-DG+	13500	17000	16.50	8.70	1.10	24.20	1.28	1.19	3.00	13.20	Low Noise

RF MMIC Attenuators Die CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

F High (GHz):

Nom. Attenuation (dB):

Flatness (dB) DC-5 GHz Typ.:

Flatness (dB) 5 - 15 GHz Typ.:

Flatness (dB) 15 - 18 GHz Typ.:

Flatness (dB) 18 - 26.5 GHz Typ.:

Flatness (dB) 26.5 - 43.5 GHz Typ.:

VSWR (:1) DC-5 GHz Typ.:

VSWR (:1) 5 - 15 GHz Typ.:

VSWR (:1) 15 - 18 GHz Typ.:

VSWR (:1) 18 - 26.5 GHz Typ.:

VSWR (:1) 26.5 - 43.5 GHz Typ.:

Max Input Power (W) @ 25°C:

wdt_ID	P/N	F Low (GHz)	F High (GHz)	Nom. Attenuation (dB)	Flatness (dB) DC-5 GHz Typ.	Flatness (dB) 5 - 15 GHz Typ.	Flatness (dB) 15 - 18 GHz Typ.	Flatness (dB) 18 - 26.5 GHz Typ.	Flatness (dB) 26.5 - 43.5 GHz Typ.	VSWR (:1) DC-5 GHz Typ.	VSWR (:1) 5 - 15 GHz Typ.	VSWR (:1) 15 - 18 GHz Typ.	VSWR (:1) 18 - 26.5 GHz Typ.	VSWR (:1) 26.5 - 43.5 GHz Typ.	Max Input Power (W) @ 25°C	Features
1	KAT-0-DG+	DC	50.0000	0	0.10	0.10	0.10	0.20	0.50	1.10	1.10	1.10	1.20	1.50	2	Wideband
2	KAT-1-DG+	DC	50.0000	1	0.10	0.10	0.10	0.10	0.30	1.10	1.10	1.10	1.10	1.30	2	Wideband
3	KAT-2-DG+	DC	50.0000	2	0.10	0.10	0.10	0.20	0.60	1.10	1.10	1.10	1.10	1.30	2	Wideband
4	KAT-3-DG+	DC	50.0000	3	0.10	0.10	0.10	0.10	0.60	1.10	1.10	1.10	1.10	1.30	2	Wideband
5	KAT-4-DG+	DC	50.0000	4	0.10	0.10	0.10	0.20	0.70	1.10	1.20	1.20	1.20	1.20	2	Wideband
6	KAT-5-DG+	DC	50.0000	5	0.10	0.10	0.10	0.10	0.50	1.10	1.10	1.10	1.10	1.20	1	Wideband
7	KAT-6-DG+	DC	50.0000	6	0.10	0.10	0.10	0.10	0.40	1.10	1.10	1.10	1.10	1.20	2	Wideband
8	KAT-7-DG+	DC	50.0000	7	0.10	0.10	0.10	0.20	0.50	1.10	1.10	1.10	1.10	1.20	1	Wideband
9	KAT-8-DG+	DC	50.0000	8	0.10	0.10	0.10	0.10	0.50	1.10	1.10	1.10	1.10	1.20	1	Wideband
10	KAT-9-DG+	DC	50.0000	9	0.10	0.10	0.10	0.10	0.50	1.20	1.20	1.20	1.20	1.20	1	Wideband

RF Bias Tee Die CATALOG

Best viewed on desktop.

P/N	F Low (MHz)	F High (MHz)	Insertion Loss (dB) Typ.	Input Current (mA) Max.	DC port Isolation (dB) Typ.	VSWR (:1) Typ.	Datasheet	Link
MBT-44-DG+	10,000	40,000	1.00	500	46	1.16
MBT-283-DG+	1,500	20,000	0.70	500	47	1.22

RF MMIC Couplers Die CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

F Low (MHz):

F High (MHz):

Coupling (dB) Nom.:

Mainline Loss (dB) Typ.:

Directivity (dB) Typ.:

VSWR (:1) Typ.:

Power Input Max. (W):

Feature:

Type:

P/N	F Low (MHz)	F High (MHz)	Coupling (dB) Nom.	Mainline Loss (dB) Typ.	Directivity (dB) Typ.	VSWR (:1) Typ.	Power Input Max. (W)	Construction	Feature	Type
EBDC19-KA-DG+	5000	43,500	18.70	0.60	10	1.45	1.45	MMIC	1W	Bi-Directional
EDC10-273-DG+	6000	26,500	10.00	1.40	15	1.33	0.63	MMIC	-	Directional
EDC14-553-DG+	22000	55,000	12.70	0.80	9	1.32	1.50	MMIC	1.5W	Directional
EDC19-KA-DG+	5000	43,500	18.30	0.50	9.6	1.40	1.47	MMIC	1W	Directional
EDC21-24-DG+	4000	20,000	21.00	0.70	19	1.37	1.77	MMIC	0.89W	Directional
HK-PT54-DG+	DC	50,000	26.50	0.80	-	1.27	1.00	MMIC	-	Power Tap

RF MMIC Equalizers Die CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

Freq. High (MHz):

Insertion Loss (dB) @ Freq. Low:

Insertion Loss (dB) @ Freq. High:

VSWR(:1) Typ. Input:

VSWR(:1) Typ. Output:

Max Input Power (dBm):

P/N	Freq. Low (MHz)	Freq. High (MHz)	Impedance (Ω)	Insertion Loss (dB) @ Freq. Low	Insertion Loss (dB) @ Freq. High	VSWR(:1) Typ. Input	VSWR(:1) Typ. Output	Max Input Power (dBm)
EQY-1-63-DG+	DC	6,000	50	1.60	0.40	1.24	1.24	31
EQY-2-24-DG+	DC	20,000	50	3.00	0.90	1.26	1.26	31
EQY-2-63-DG+	DC	6,000	50	2.50	0.40	1.29	1.29	31
EQY-3-24-DG+	DC	20,000	50	3.80	0.80	1.24	1.24	34
EQY-3-63-DG+	DC	6,000	50	3.80	0.60	1.29	1.29	31
EQY-3-283-DG+	DC	28,000	50	4.00	0.60	1.15	1.15	31
EQY-3-453-DG+	DC	45,000	50	1.10	4.60	1.22	1.22	30
EQY-4-63-DG+	DC	6,000	50	4.80	0.60	1.25	1.25	31
EQY-4-283-DG+	DC	28,000	50	4.90	0.60	1.14	1.14	30
EQY-4-453-DG+	DC	45,000	50	1.10	5.60	1.23	1.23	29
EQY-5-24-DG+	DC	20,000	50	5.70	0.80	1.34	1.34	34
EQY-5-63-DG+	DC	6,000	50	6.00	1.00	1.24	1.24	31
EQY-5-283-DG+	DC	28,000	50	6.50	0.60	1.12	1.12	30
EQY-5-453-DG+	DC	45,000	50	1.10	6.60	1.26	1.26	28
EQY-6-24-DG+	DC	20,000	50	6.80	0.70	1.30	1.30	31
EQY-6-63-DG+	DC	6,000	50	7.00	0.50	1.20	1.20	32
EQY-6-283-DG+	DC	28,000	50	7.20	0.60	1.15	1.15	30
EQY-6-453-DG+	DC	45,000	50	1.10	7.60	1.25	1.25	28
EQY-7-453-DG+	DC	45,000	50	1.30	8.70	1.26	1.26	27
EQY-8-24-DG+	DC	20,000	50	9.10	1.10	1.31	1.31	34
EQY-8-63-DG+	DC	6,000	50	8.70	0.50	1.21	1.21	31
EQY-8-453-DG+	DC	45,000	50	1.20	9.40	1.14	1.14	27
EQY-9-453-DG+	DC	45,000	50	1.60	10.60	1.21	1.21	28
EQY-10-24-DG+	DC	20,000	50	11.10	1.10	1.28	1.28	33
EQY-10-63-DG+	DC	6,000	50	11.20	1.00	1.12	1.12	31
EQY-10-453-DG+	DC	45,000	50	1.80	12.00	1.22	1.22	28
EQY-12-24-DG+	DC	20,000	50	13.40	1.50	1.17	1.17	30

RF MMIC Filters Die CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

Reflectionless Band Pass Filters, MMIC Die, 2750 to 20000 MHz

Reflectionless Low Pass Filters, MMIC Die, DC to 17000 MHz

Reflectionless High Pass Filters, MMIC Die, 2010 to 40000 MHz

Reflectionless Band Pass Filters, MMIC Die, 2750 to 20000 MHz

P/N	F Center (MHz) Fc	Passband F Low (MHz)	Passband F High (MHz)	Stopband F (MHz) loss 14 dB Typ.	Stopband F (MHz) loss 50 dB Typ.	Passband VSWR (:1) Max.	Stopband VSWR (:1) Typ.	Features
XBF-24-D+	20,000	19,500	20,500	-	DC-10000 & 30000-40000	1.80	1.50	REFLECTIONLESS
XBF-163-D+	16,000	15,500	16,500	-	DC-8000 & 24000-40000	1.50	1.40	REFLECTIONLESS
XBF-183-D+	18,000	17,500	18,500	-	DC-9000 & 27000-40000	1.90	1.50	REFLECTIONLESS
XBF-282-D+	2,750	2,350	3,150	DC-1810 & 3800-20000	-	1.20	1.50	REFLECTIONLESS

Reflectionless Low Pass Filters, MMIC Die, DC to 17000 MHz

	Passband Freq. (MHz)	fco, MHz Nom. (loss 3 dB)	Stopband Freq. (MHz) (loss 14 dB) Typ.	Stopband Freq. (MHz) (loss 20 dB) Typ.	Stopband Freq. (MHz) (loss 30 dB) Typ.	Stopband Freq. (MHz) (loss 40 dB) Typ.	Stopband Freq. (MHz) (loss 50 dB) Typ.	Passband VSWR (:1) Typ.	Stopband VSWR (:1) Typ.	Passband Max Input Power (W)	Stopband Max Input Power (W)	Features
P/N	Passband Freq. (MHz)	fco, MHz Nom. (loss 3 dB)	Stopband Freq. (MHz) (loss 14 dB) Typ.	Stopband Freq. (MHz) (loss 20 dB) Typ.	Stopband Freq. (MHz) (loss 30 dB) Typ.	Stopband Freq. (MHz) (loss 40 dB) Typ.	Stopband Freq. (MHz) (loss 50 dB) Typ.	Passband VSWR (:1) Typ.	Stopband VSWR (:1) Typ.	Passband Max Input Power (W)	Stopband Max Input Power (W)	Features	Datasheet
XLF-13H-D+	DC-1000	1,150	-	-	1850-2500	2500-10000	10000-19000	1.30	2.10	7.90	1.58	HIGH REJECTION, REFLECTIONLESS
XLF-14-D+	DC-10000	13,200	15800-17000	17000-24200	-	-	-	1.30	2.20	2.00	0.05	REFLECTIONLESS
XLF-63-D+	DC-6000	8,100	9600-17800	-	-	-	-	1.30	1.50	2.00	0.15	REFLECTIONLESS
XLF-63H-D+	DC-6820	10,500	-	-	14500-16300	16300-26000	-	1.20	2.00	4.00	1.60	HIGH REJECTION, REFLECTIONLESS
XLF-73-D+	DC-7000	9,900	11700-21300	-	-	-	-	1.30	2.20	2.00	0.10	REFLECTIONLESS
XLF-112H-D+	DC-1050	1,200	-	-	2000-2200	2200-10000	10000-19000	1.30	2.10	7.90	1.58	HIGH REJECTION, REFLECTIONLESS
XLF-122-D+	DC-1150	1,510	2190-10000	10000-21000	-	-	-	1.20	1.50	2.00	0.50	REFLECTIONLESS
XLF-122H-D+	DC-1200	1,400	-	-	2300-2500	2500-9500	-	1.30	1.30	7.90	1.58	HIGH REJECTION, REFLECTIONLESS
XLF-123-D+	DC-12200	15,000	18100-19000	19000-29000	-	-	-	1.30	2.50	2.00	0.05	REFLECTIONLESS
XLF-132H-D+	DC-1300	1,680	-	-	2700-3000	3000-19000	-	1.30	2.30	7.90	1.58	HIGH REJECTION, REFLECTIONLESS
XLF-133-D+	DC-13100	15,800	19500-20000	20000-30000	-	-	-	1.30	2.70	2.00	0.05	REFLECTIONLESS
XLF-151-D+	DC-150	280	460-2800	2800-16000	-	-	-	1.20	1.80	2.00	0.50	REFLECTIONLESS
XLF-172H-D+	DC-2000	2,350	-	-	3600-3800	3800-11000	-	1.30	2.30	7.90	1.58	HIGH REJECTION, REFLECTIONLESS
XLF-173-D+	DC-17000	18,000	23900-26000	26000-33000	-	-	-	1.20	2.70	2.00	0.05	REFLECTIONLESS
XLF-192-D+	DC-1900	2,400	3480-11200	11200-30000	-	-	-	1.20	2.10	2.00	0.20	REFLECTIONLESS
XLF-221-DG+	DC-220	370	570-3500	3500-12000	-	-	-	1.20	1.70	2.00	0.50	REFLECTIONLESS
XLF-252-D+	DC-2500	3,220	4550-16000	16000-30000	-	-	-	1.30	1.80	2.00	0.50	REFLECTIONLESS
XLF-252H-D+	DC-2500	3,800	-	-	-	7000-17000	-	1.20	2.10	7.90	1.58	HIGH REJECTION, REFLECTIONLESS
XLF-312H-D+	DC-3530	5,600	-	-	7900-9300	9300-18500	18500-22000	1.30	2.20	4.00	1.60	HIGH REJECTION, REFLECTIONLESS
XLF-332-D+	DC-3250	4,120	5900-17000	17000-30000	-	-	-	1.20	2.00	2.00	0.20	REFLECTIONLESS
XLF-362H-D+	DC-3910	6,300	-	-	9200-10700	10700-18500	18500-22000	1.30	2.20	4.00	1.60	HIGH REJECTION, REFLECTIONLESS
XLF-421-D+	DC-420	610	900-5200	5200-18000	-	-	-	1.20	1.70	2.00	0.50	REFLECTIONLESS
XLF-551-D+	DC-550	770	1140-5800	5800-18500	-	-	-	1.20	1.60	2.00	0.20	REFLECTIONLESS
XLF-662M-D+	DC-6600	7,100	-	-	9200-18000	18000-43500	-	1.20	1.50	5.00	1.30	REFLECTIONLESS
XLF-732-D+	DC-7300	9,800	14300-34000	-	-	-	-	1.20	3.00	2.00	0.20	REFLECTIONLESS
XLF-762-D+	DC-7600	11,000	13100-20000	-	-	-	-	1.30	2.70	2.00	0.10	REFLECTIONLESS
XLF-861-D+	DC-860	1,150	1700-7500	7500-25000	-	-	-	1.20	2.30	2.00	0.20	REFLECTIONLESS
XLF-962-D+	DC-9600	12,400	14800-16000	16000-25200	-	-	-	1.20	2.40	2.00	0.08	REFLECTIONLESS
XLF-982-D+	DC-9800	13,100	19000-22000	22000-32500	-	-	-	1.20	3.40	2.00	0.20	REFLECTIONLESS

Reflectionless High Pass Filters, MMIC Die, 2010 to 40000 MHz

	Stopband F (MHz) loss 50 dB Typ.	Stopband F (MHz) loss 30 dB Typ.	Stopband F (MHz) loss 20 dB Typ.	Stopband F (MHz) loss 14 dB Typ.	Stopband F (MHz) loss 9 dB Typ.	F Center (MHz) Fc loss 3 dB Typ.	Passband F (MHz) loss 1dB Typ.	Stopband VSWR (:1) Typ.	Passband VSWR (:1) Typ.	Stopband Max Input Power (W)	Passband Max Input Power (W)	Features
P/N	Stopband F (MHz) loss 50 dB Typ.	Stopband F (MHz) loss 30 dB Typ.	Stopband F (MHz) loss 20 dB Typ.	Stopband F (MHz) loss 14 dB Typ.	Stopband F (MHz) loss 9 dB Typ.	F Center (MHz) Fc loss 3 dB Typ.	Passband F (MHz) loss 1dB Typ.	Stopband VSWR (:1) Typ.	Passband VSWR (:1) Typ.	Stopband Max Input Power (W)	Passband Max Input Power (W)	Features	Datasheet
XHF-14M-D+	-	DC-7000	-	-	-	8,800	9900-26000	1.40	1.40	1.25	1.00	REFLECTIONLESS
XHF-23-D+	-	-	-	DC-1210	-	1,650	2010-10100	1.20	2.00	0.50	2.00	REFLECTIONLESS
XHF-53H-D+	DC-3100	-	-	-	-	4,300	5000-11000	1.30	1.30	0.79	1.26	HI REJECTION, REFLECTIONLESS
XHF-63M-D+	-	DC-4100	-	-	-	5,000	5900-26000	1.30	1.50	1.25	1.00	REFLECTIONLESS
XHF-73M-D+	-	DC-5200	-	-	-	6,200	7000-21700	1.20	1.10	1.30	1.30	REFLECTIONLESS
XHF-143M-D+	-	DC-9000	-	-	-	11,200	13900-26000	1.50	1.60	1.25	1.00	REFLECTIONLESS
XHF-153-D+	-	-	2400-12000	-	DC-2400	14,400	15000-40000	1.40	1.20	0.16	1.26	REFLECTIONLESS
XHF-252-D+	-	-	-	DC-1520	-	2,030	2460-10400	1.20	1.70	0.50	2.00	REFLECTIONLESS
XHF-392-D+	-	-	-	DC-2450	-	3,220	3940-11500	1.40	1.70	0.50	2.00	REFLECTIONLESS
XHF-482M-D+	-	DC-3500	-	-	-	4,260	4800-17800	1.20	1.20	1.60	1.30	REFLECTIONLESS
XHF-652M-D+	-	DC-5000	-	-	-	5,990	6500-21110	1.20	1.10	1.60	1.30	REFLECTIONLESS
XHF-912-D+	-	-	1400-7300	-	DC-1400	8,400	9100-40000	1.40	1.20	0.25	1.26	REFLECTIONLESS
XHF-1162-D+	-	-	2500-9100	-	DC-2500	10,500	11600-40000	1.40	1.30	0.25	1.26	REFLECTIONLESS
XHF-1352-D+	-	-	3000-10500	-	DC-3000	12,700	13500-40000	1.30	1.30	0.15	1.00	REFLECTIONLESS
XHF-1832-D+	-	-	9000-14600	-	DC-9000	17,400	18300-40000	1.30	1.60	0.09	0.32	REFLECTIONLESS

RF MMIC Mixers Die CATALOG

Best viewed on desktop.

You may sort each column (alphabetic or numeric) by clicking on their header.

P/N	RF in @ 1 dB Comp. (dBm), Typ.	LO/RF Freq. Low (MHz)	LO/RF Freq. High (MHz)	IF Freq. Low (MHz)	IF Freq. High (MHz)	Conversion Loss (dB) Typ.	LO-RF Isolation (dB) Typ.	LO-IF Isolation (dB) Typ.	IP3 (dBm) at Center Band, Typ.	Features
MDB-24H-DG+	10	5,000	21,500	DC	5,000	7.90	35	44.00	23.00	High L-R & L-I Isolation
MDB-44H-DG+	10	10,000	40,000	DC	15,000	8.40	37	37.00	20.00	High L-R & L-I Isolation
MDB-73H-DG+	10	2,200	7,000	DC	1,600	8.50	40	51.60	18.20	High L-R & L-I Isolation
MDB-653H-DG+	10	20,000	65,000	DC	20,000	11.00	45	30.00	20.00	High L-R & L-I Isolation

RF MMIC Multipliers Die CATALOG

Best viewed on desktop.

You may sort each column (alphabetic or numeric) by clicking on their header.

P/N	Input Freq. Low (MHz)	Input Freq. High (MHz)	Output Freq. Low (MHz)	Output Freq. High (MHz)	RF Input Power (dBm) Min.	RF Input Power (dBm) Max.	Conv. Loss (dB) Typ.	F1 Harmonic Output Below F2 (dBc) Typ.	F3 Harmonic Output Below F2 (dBc) Typ.	F4 Harmonic Output Below F2 (dBc) Typ.	Features
CY2-44-D+	7,000	20,000	14,000	40,000	12	18	13	30	30	10	High Harmonics Rejection
CY2-143-D+	2,000	7,000	4,000	14,000	12	18	12	30	32	17	High Harmonics Rejection
CY2-283-D+	3,500	14,000	7,000	28,000	12	18	13	35	34	23	High Harmonics Rejection

RF MMIC Splitters/Combiners Die CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

Power Splitters/Combiners, Die, 2 Way, 0 Degree, 500 MHz to 43.5 GHz

Power Splitters/Combiners, Die, 2 Way, 90 Degree

Power Splitters/Combiners, Die, 4 Way, 0 Degree

Power Splitters/Combiners, Die, 2 Way, 0 Degree, 500 MHz to 43.5 GHz

P/N	Freq. Low (MHz)	Freq. Hi (MHz)	Isolation (dB), Typ.	Insertion Loss (dB) above 3 dB, Typ.	Phase Unbalance (deg), Typ.	Amplitude Unbalance (dB), Typ.	Features
EP2C-D+	1,800	12,500	19.70	0.90	3.20	0.09	High Power, DC Passing
EP2K-D+	2,000	26,500	18.90	1.60	6.00	0.20	High Power, DC Passing
EP2W-D+	500	9,500	19.40	1.80	1.70	0.10	High Power, DC Passing
EP2KA-D+	10,000	43,500	22.00	0.90	6.10	0.22	Wideband, DC Passing

Power Splitters/Combiners, Die, 2 Way, 90 Degree

P/N	Freq. Low (MHz)	Freq. Hi (MHz)	Isolation (dB), Typ.	Insertion Loss (dB) above 3 dB, Typ.	Phase Unbalance (deg), Typ.	Amplitude Unbalance (dB), Typ.	Features	Datasheet	Link
EPQ-113-DG+	5,000	11,000	19	0.60	1.40	1.50	High Power
EPQ-133-DG+	6,000	14,000	20	0.60	8.80	1.60	Wideband

Power Splitters/Combiners, Die, 4 Way, 0 Degree

P/N	Freq. Low (MHz)	Freq. Hi (MHz)	Isolation (dB), Typ.	Insertion Loss (dB) above 3 dB, Typ.	Phase Unbalance (deg), Typ.	Amplitude Unbalance (dB), Typ.	Features	Datasheet	Link
WP4P1-DG+	1,525	2,375	26	0.90	2	0.20	Wideband
WP4R-DG+	2,000	3,000	24	0.70	2	0.10	Wideband

RF MMIC Switches Die CATALOG

Best viewed on desktop.

You may sort each column (alphabetic or numeric) by clicking on their header.

wdt_ID	Model Number	Type	Freq. Low (GHz)	Freq. Hi (GHz)	Driver	Config.	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.	1 dB Compression (dBm), Typ.	Input IP3 (dBm) Typ.	In-Out Isolation (dB), Typ.	In-Out Isolation (dB), Min.
1	M3SW-250DRA-D+	SPDT	DC	4.50	CMOS	Reflect	0.60	2.50	25.00	47.30	48	30
2	M3SWA-250DRBDG+	SPDT	DC	4.50	CMOS	Absorb	0.60	2.50	25.40	46.50	56	30
3	M3SWA263DRC-D+	SPDT	DC	6.00	CMOS	Absorb	0.60	2.20	26.20	46.30	56	30

RF MMIC Transformers Die CATALOG

Best viewed on desktop.

You may sort each column (alphabetic or numeric) by clicking on their header.

P/N	Frequency Low (MHz)	Frequency High (MHz)	Impedance (Ω)	Impedance Ratio	Technology	Configuration
MTX2-73-DG+	2,000	7,000	50	2	MMIC	J
MTX2-133-DG+	1,500	13,500	50	2	MMIC	J
MTX2-143-DG+	5,500	13,500	50	2	MMIC	J
MTX2-183-DG+	2,000	18,000	50	2	MMIC	J
MTY2-243-DG+	10,000	24,000	50	2	MMIC	J

We're here to help!

Fill out the form if you need help choosing a part or if you have any questions, and we will get back to you as soon as possible.

Mini-Circuits Products

About MCDI & Mini-Circuits

Reference

Contact

Mini-Circuits Products

About MCDI & Mini-Circuits

Reference

Contact

RF MMIC Chips Available in Die Form

Mini-Circuits offers a broad selection of MMIC components in bare die format for your chip and wire integration, including amplifiers, attenuators, couplers, filters, mixers, multipliers, and splitter/combiners.

MMIC Chips Available in Die Form Products Catalog

RF MMIC Chips Available in Die Form CATALOG

RF MMIC Amplifiers Die CATALOG

RF MMIC Attenuators Die CATALOG

RF Bias Tee Die CATALOG

RF MMIC Couplers Die CATALOG

RF MMIC Equalizers Die CATALOG

RF MMIC Filters Die CATALOG

Reflectionless Band Pass Filters, MMIC Die, 2750 to 20000 MHz

Reflectionless Low Pass Filters, MMIC Die, DC to 17000 MHz

Reflectionless High Pass Filters, MMIC Die, 2010 to 40000 MHz

RF MMIC Mixers Die CATALOG

RF MMIC Multipliers Die CATALOG

RF MMIC Splitters/Combiners Die CATALOG

Power Splitters/Combiners, Die, 2 Way, 0 Degree, 500 MHz to 43.5 GHz

Power Splitters/Combiners, Die, 2 Way, 90 Degree

Power Splitters/Combiners, Die, 4 Way, 0 Degree

RF MMIC Switches Die CATALOG

RF MMIC Transformers Die CATALOG

We're here to help!

Mini-Circuits Products

About MCDI & Mini-Circuits

Reference

Contact

RF MMIC Chips Available in Die Form

Mini-Circuits offers a broad selection of MMIC components in bare die format for your chip and wire integration, including amplifiers, attenuators, couplers, filters, mixers, multipliers, and splitter/combiners.

MMIC Chips Available in Die Form Products Catalog

RF MMIC Chips Available in Die Form CATALOG

RF MMIC Amplifiers Die CATALOG

RF MMIC Attenuators Die CATALOG

RF Bias Tee Die CATALOG

RF MMIC Couplers Die CATALOG

RF MMIC Equalizers Die CATALOG

RF MMIC Filters Die CATALOG

Reflectionless Band Pass Filters, MMIC Die, 2750 to 20000 MHz

Reflectionless Low Pass Filters, MMIC Die, DC to 17000 MHz

Reflectionless High Pass Filters, MMIC Die, 2010 to 40000 MHz

RF MMIC Mixers Die CATALOG

RF MMIC Multipliers Die CATALOG

RF MMIC Splitters/Combiners Die CATALOG

Power Splitters/Combiners, Die, 2 Way, 0 Degree, 500 MHz to 43.5 GHz

Power Splitters/Combiners, Die, 2 Way, 90 Degree

Power Splitters/Combiners, Die, 4 Way, 0 Degree

RF MMIC Switches Die CATALOG

RF MMIC Transformers Die CATALOG

We're here to help!

One last thing...
