RF CHOKES

50 MHz to 10 GHz

RF Chokes with effective parallel resistance over wide bandwidths from 50 MHz to 10 GHz!

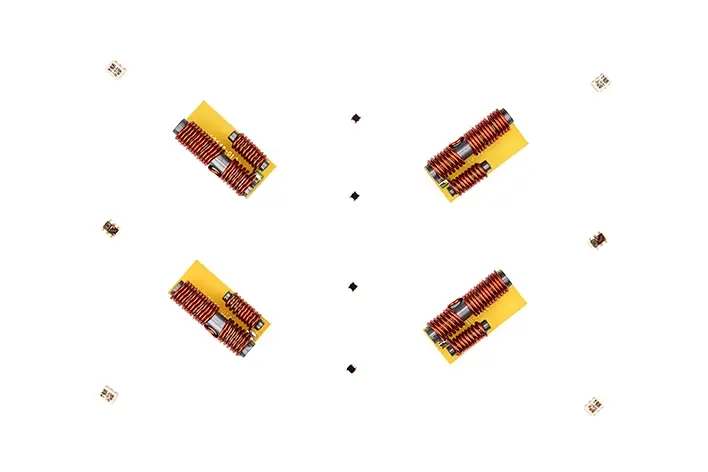

Tiny surface mount packages, as small as 0.15 x 0.15 x 0.15″
Low DC resistance
Low parasitic capacitance
DC current handling up to 200 mA

NEW RF CHOKES

Need more information about these products?

Fill the form and our RF Engineers will contact you to discuss how Mini-Circuits’ products can shorten your development time while lowering your costs.

Companion Product

Precise break-over Torque Wrench

All RF Chokes

Press on the “+” sign to expand the product details.

You may reorder the table by selecting the arrows on each column, use filters for selected columns or search for specific terms or part number.

		Freq. Hi (MHz)	Insertion Loss (dB), Typ.	Insertion Loss (dB), Max.		VSWR (:1), Max.	DC Current (mA)	Inductance (µH) @ 0 mA	Inductance (µH) @ 100 mA	Inductance (µH) @ 200 mA
ADCH-80+	50	10,000	0.3000	2.0000	1.1000	1.6000	100.0000	7.0000	1.0000	0.0000
ADCH-80A+	50	10,000	0.3000	2.0000	1.1000	1.6000	100.0000	7.0000	1.0000	0.0000
TCCH-80+	50	8,200	0.5000	1.1000	1.1000	1.7000	200.0000	4.0000	0.9000	0.5000
	0	0	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000	0.0000
