90-Degree and 180-Degree HYBRID SPLITTERS / COMBINERS

Up to 250W

10 to 0 KHz

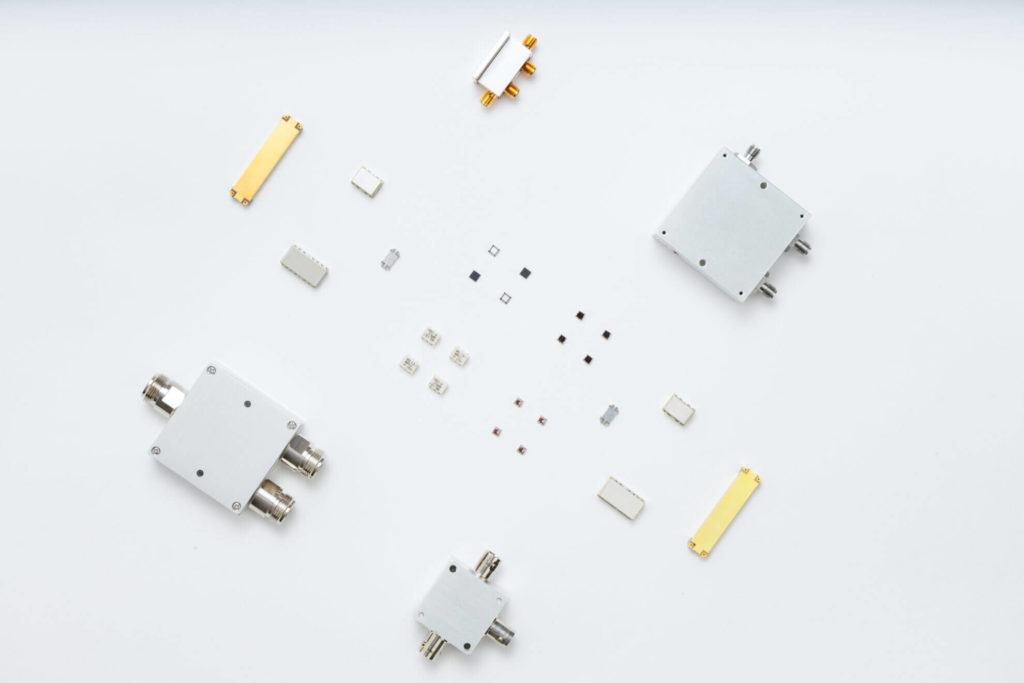

A broad selection of quadrature (90-degree) and 180-degree hybrids in coaxial connectorized and surface-mount packages as well as MMIC die.

90°, 180°, and quadrifilar phase shifts
Power handling up to 250W
Low phase and amplitude unbalance
Choose from LTCC, MMIC, core and wire, and microstrip/stripline designs

90-Degree and 180-Degree HYBRID SPLITTERS / COMBINERS CATALOG

Best viewed on desktop.

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

Model Number:

Interface:

Description:

F Low (MHz):

F High (MHz):

Isolation (dB), Typ.:

Insertion Loss (dB) above 3 dB, Typ.:

Phase Unbalance (deg), Typ.:

Amplitude Unbalance (dB), Typ.:

Input Power, Max.:

Technology:

Impedance (Ω):

Model Number	Interface	Description	F Low (MHz)	F High (MHz)	Isolation (dB), Typ.	Insertion Loss (dB) above 3 dB, Typ.	Phase Unbalance (deg), Typ.	Amplitude Unbalance (dB), Typ.	Input Power, Max.	Technology	Impedance (Ω)
ADPQ-2-250+	SMT	90° Hybrid	150	250	24	0.20	4.00	1.40	1.00	Core & Wire	50
ADQ-22+	SMT	90° Hybrid	95	200	28	0.30	6.00	1.60	0.50	Core & Wire	50
ADQ-32+	SMT	90° Hybrid	160	327	22	0.30	5.00	1.60	0.50	Core & Wire	50
ADQ-32W+	SMT	90° Hybrid	104	340	20	0.60	8.00	1.80	0.50	Core & Wire	50
ADQ-90+	SMT	90° Hybrid	55	90	26	0.20	4.00	1.20	0.50	Core & Wire	50
ADQ-180+	SMT	90° Hybrid	120	180	35	0.20	6.00	1.50	0.50	Core & Wire	50
AMT-2+	SMT	0°/180° Hybrid	50	200	35	0.80	2.00	0.30	0.50	Core & Wire	50
AMT-32+	SMT	0°/180° Hybrid	1	300	35	0.90	2.00	0.30	0.50	Core & Wire	50
EPQ-113+	SMT	90° Hybrid	5,000	11,000	19	0.60	8.80	1.50	1.59	MMIC	50
EPQ-113-D+	Die	90° Hybrid	5,000	11,000	19	0.60	1.40	1.50	1.60	MMIC	50
EPQ-133+	SMT	90° Hybrid	6,000	14,000	20	0.60	8.80	1.60	1.58	MMIC	50
EPQ-133-D+	Die	90° Hybrid	6,000	14,000	20	0.60	8.80	1.60	1.60	MMIC	50
JSPQ-65W+	SMT	90° Hybrid	5	65	33	0.70	5.00	0.70	1.00	Core & Wire	50
JSPQ-80+	SMT	90° Hybrid	10	80	44	0.45	6.00	0.60	1.00	Core & Wire	50
JSPQ-350+	SMT	90° Hybrid	150	350	20	0.50	5.00	1.50	1.00	Core & Wire	50
JSPQW-100+	SMT	90° Hybrid	40	100	24	0.20	3.00	1.20	1.00	Core & Wire	50
JSPQW-100A+	SMT	90° Hybrid	30	100	41	0.50	4.00	0.60	1.00	Core & Wire	50
JYPQ-30+	SMT	90° Hybrid	16	30	28	0.20	3.00	1.50	1.00	Core & Wire	50
JYPQ-160+	SMT	90° Hybrid	105	160	24	0.25	3.00	1.50	1.00	Core & Wire	50
LRPQ-70	SMT	90° Hybrid	65	75	30	0.10	3.00	1.00	1.00	Core & Wire	50
LRPQ-70J	SMT	90° Hybrid	65	75	30	0.10	3.00	1.00	1.00	Core & Wire	50
PQW-2-90+	Plug-In	90° Hybrid	30	90	27	0.30	3.00	1.00	1.00	Core & Wire	50
PSCJ-2-1+	Plug-In	180° Hybrid	1	200	35	0.50	2.50	0.15	1.00	Core & Wire	50
PSCJ-2-1W	Plug-In	180° Hybrid	100	600	30	1.00	6.00	0.50	0.50	Core & Wire	50
PSCQ-2-8+	Plug-In	90° Hybrid	2	8	36	0.30	6.00	0.50	0.50	Core & Wire	50
PSCQ-2-50+	Plug-In	90° Hybrid	25	50	30	0.30	3.00	1.50	1.00	Core & Wire	50
PSCQ-2-51W+	Plug-In	90° Hybrid	5	50	41	0.50	5.00	0.50	0.50	Core & Wire	50
PSCQ-2-70+	Plug-In	90° Hybrid	40	70	30	0.30	3.00	1.50	1.00	Core & Wire	50
PSCQ-2-90+	Plug-In	90° Hybrid	55	90	30	0.30	3.00	1.20	1.00	Core & Wire	50
PSCQ-2-120+	Plug-In	90° Hybrid	80	120	25	0.30	3.00	1.50	1.00	Core & Wire	50
QBA-07+	SMT	90° Hybrid	340	680	22	0.80	7.00	2.00	21.00	LTCC	50
QBA-12+	SMT	90° Hybrid	800	1,200	23	0.25	6.00	1.20	50.00	LTCC	50
QBA-24W+	SMT	90° Hybrid	1,700	2,400	21	0.49	6.00	1.20	20.00	LTCC	50
QCC-20+	SMT	90° Hybrid	1,200	2,200	35	0.40	5.00	1.00	17.50	LTCC	50
QCC-22+	SMT	90° Hybrid	1,500	2,500	28	0.80	4.00	1.30	17.50	LTCC	50
QCH-153+	SMT	90° Hybrid	3,000	14,500	13	1.00	0.00	1.50	25.00	Microstrip / Stripline	50
QCN-3+	SMT	90° Hybrid	220	470	24	0.60	8.00	1.70	15.00	LTCC	50
QCN-5+	SMT	90° Hybrid	330	580	20	0.30	8.00	1.30	15.00	LTCC	50
QCN-5D+	SMT	90° Hybrid	330	580	20	0.30	8.00	1.30	15.00	LTCC	50
QCN-7+	SMT	90° Hybrid	425	675	17	0.40	8.00	1.00	15.00	LTCC	50
QCN-7D+	SMT	90° Hybrid	425	675	17	0.40	8.00	1.00	15.00	LTCC	50
QCN-8+	SMT	90° Hybrid	450	750	16	0.60	8.00	1.00	15.00	LTCC	50
QCN-12+	SMT	90° Hybrid	800	1,375	19	0.40	12.00	0.90	15.00	LTCC	50
QCN-12A+	SMT	90° Hybrid	800	1,250	17	0.30	5.00	0.80	15.00	LTCC	50
QCN-12AD+	SMT	90° Hybrid	800	1,250	17	0.30	5.00	0.80	15.00	LTCC	50
QCN-12D+	SMT	90° Hybrid	800	1,375	19	0.40	12.00	0.90	15.00	LTCC	50
QCN-13D+	SMT	90° Hybrid	675	1,300	20	0.40	8.00	1.30	15.00	LTCC	50
QCN-19+	SMT	90° Hybrid	1,100	1,925	25	0.40	4.00	1.10	15.00	LTCC	50
QCN-19D+	SMT	90° Hybrid	1,100	1,925	25	0.40	4.00	1.10	15.00	LTCC	50
QCN-25+	SMT	90° Hybrid	1,350	2,450	25	0.40	5.00	1.10	15.00	LTCC	50
QCN-25D+	SMT	90° Hybrid	1,350	2,450	25	0.40	5.00	1.10	15.00	LTCC	50
QCN-27+	SMT	90° Hybrid	1,700	2,700	26	0.40	6.00	1.00	15.00	LTCC	50
QCN-27D+	SMT	90° Hybrid	1,700	2,700	26	0.40	6.00	1.00	15.00	LTCC	50
QCN-34+	SMT	90° Hybrid	2,500	3,400	32	0.40	4.00	1.20	15.00	LTCC	50
QCN-34D+	SMT	90° Hybrid	2,500	3,400	32	0.40	4.00	1.20	15.00	LTCC	50
QCN-45+	SMT	90° Hybrid	2,500	4,500	19	0.50	6.00	2.50	15.00	LTCC	50
QCN-45D+	SMT	90° Hybrid	2,500	4,500	19	0.50	6.00	2.50	15.00	LTCC	50
QCS-83+	SMT	90° Hybrid	4,000	8,000	16	0.70	6.00	1.10	15.00	LTCC	50
QCS-152+	SMT	90° Hybrid	820	1,600	20	0.50	6.00	0.80	15.00	LTCC	50
QCS-162+	SMT	90° Hybrid	1,550	1,620	15	0.90	5.00	1.00	3.00	LTCC	50
QCS-312+	SMT	90° Hybrid	1,700	3,100	25	0.50	7.00	1.20	15.00	LTCC	50
QCS-332+	SMT	90° Hybrid	1,800	3,300	18	0.50	5.00	1.20	15.00	LTCC	50
QCS-442+	SMT	90° Hybrid	2,800	4,400	23	0.50	7.00	1.10	15.00	LTCC	50
QCS-592+	SMT	90° Hybrid	3,100	5,900	25	0.70	5.00	1.40	15.00	LTCC	50
QCS-722+	SMT	90° Hybrid	4,000	7,200	23	0.60	10.00	1.40	15.00	LTCC	50
QCS-981+	SMT	90° Hybrid	540	980	20	0.50	4.00	0.80	15.00	LTCC	50
QCV-151+	SMT	90° Hybrid	90	150	15	0.90	5.00	1.60	10.00	LTCC	50
QCV-211+	SMT	90° Hybrid	130	210	18	0.60	5.00	1.40	10.00	LTCC	50
QCV-271+	SMT	90° Hybrid	150	265	17	0.50	8.00	1.40	10.00	LTCC	50
SBTCJ-1W+	SMT	180° Hybrid	1	750	22	0.60	7.00	0.40	0.50	Core & Wire	50
SBTCJ-1WX+	SMT	180° Hybrid	1	750	22	0.60	7.00	0.40	0.50	Core & Wire	50
SBTCJ-13-75+	SMT	180° Hybrid	5	1,000	26	1.50	2.80	0.80	1.00	Core & Wire	75
SCPJ-2-9+	SMT	180° Hybrid	200	900	24	1.00	6.00	0.70	1.00	Core & Wire	50
SCPJ-2-30W-32+	SMT	180° Hybrid	110	330	18	0.50	5.00	0.40	30.00	Core & Wire	50
SCPQ-10.5+	SMT	90° Hybrid	9	11	31	0.15	3.00	1.20	1.00	Core & Wire	50
SCPQ-50+	SMT	90° Hybrid	25	50	25	0.15	3.00	1.50	1.00	Core & Wire	50
SCPQ-60+	SMT	90° Hybrid	30	60	30	0.15	3.00	1.50	1.00	Core & Wire	50
SCPQ-85C+	SMT	90° Hybrid	55	85	30	0.30	3.00	0.60	1.00	Core & Wire	50
SCPQ-90+	SMT	90° Hybrid	55	90	26	0.20	3.00	1.20	1.00	Core & Wire	50
SCPQ-180+	SMT	90° Hybrid	120	180	20	0.30	3.00	1.20	1.00	Core & Wire	50
SCPQ-400+	SMT	90° Hybrid	250	400	20	0.30	3.00	1.20	1.00	Core & Wire	50
SYMT-122-75+	SMT	0°/180° Hybrid	5	1,218	20	3.20	7.00	0.60	0.50	Core & Wire	75
SYPJ-2-5W-52+	SMT	180° Hybrid	10	520	23	0.90	2.00	0.10	5.00	Core & Wire	50
SYPJ-2-13+	SMT	180° Hybrid	10	1,000	22	1.50	6.00	0.30	0.50	Core & Wire	50
SYPJ-2-33+	SMT	180° Hybrid	500	3,000	16	1.70	4.00	0.50	0.50	Core & Wire	50
SYPJ-2-222+	SMT	180° Hybrid	500	2,250	25	1.70	3.00	0.50	0.50	Core & Wire	50
SYPQ-70+	SMT	90° Hybrid	65	75	31	0.10	3.00	1.10	1.00	Core & Wire	50
SYPQ-181+	SMT	90° Hybrid	120	180	20	0.30	3.00	0.80	1.00	Core & Wire	50
ZAPDJ-2-S+	Connector	180° Hybrid	1,000	2,000	22	1.30	6.00	0.80	1.00	Core & Wire	50
ZAPDJ2-5W-521+	Connector	180° Hybrid	10	520	23	0.90	2.00	0.10	5.00	Core & Wire	50
ZAPDJ2-5W-521N+	Connector	180° Hybrid	10	520	23	0.90	2.00	0.10	5.00	Core & Wire	50
ZAPDJ2-5W-521S+	Connector	180° Hybrid	10	520	23	0.90	2.00	0.10	5.00	Core & Wire	50
ZAPDQ-2	Connector	90° Hybrid	1,000	2,000	22	0.40	6.00	0.80	1.00	Microstrip / Stripline	50
ZAPDQ-4+	Connector	90° Hybrid	2,000	4,200	22	0.40	8.00	1.00	1.00	Microstrip / Stripline	50
ZFSCJ-2-1	Connector	180° Hybrid	1	500	33	1.00	4.00	0.20	1.00	Core & Wire	50
ZFSCJ-2-1+	Connector	180° Hybrid	1	500	33	1.00	4.00	0.20	1.00	Core & Wire	50
ZFSCJ-2-2	Connector	180° Hybrid	0	20	30	0.20	2.00	0.10	1.00	Core & Wire	50
ZFSCJ-2-3+	Connector	180° Hybrid	5	300	33	1.00	4.00	0.20	1.00	Core & Wire	50
ZFSCJ-2-4+	Connector	180° Hybrid	50	1,000	25	1.70	6.00	0.60	1.00	Core & Wire	50
ZFSCJ-2-232+	Connector	180° Hybrid	5	2,300	4	1.90	3.00	0.20	1.00	Core & Wire	50
ZMSCJ-2-2	Connector	180° Hybrid	0	20	30	0.20	2.00	0.10	1.00	Core & Wire	50
ZMSCQ-2-50+	Connector	90° Hybrid	25	50	27	0.30	3.00	1.50	1.00	Core & Wire	50
ZMSCQ-2-90	Connector	90° Hybrid	55	90	30	0.30	3.00	1.20	1.00	Core & Wire	50
ZMSCQ-2-120+	Connector	90° Hybrid	80	120	21	0.30	3.00	1.50	1.00	Core & Wire	50
ZMSCQ-2-180+	Connector	90° Hybrid	120	180	23	0.30	4.00	1.20	1.00	Core & Wire	50
ZSCJ-2-1+	Connector	180° Hybrid	1	200	35	0.60	2.50	0.15	1.00	Core & Wire	50
ZSCJ-2-2+	Connector	180° Hybrid	0	20	30	0.20	2.00	0.10	1.00	Core & Wire	50
ZX10Q-2-3-S+	Connector	90° Hybrid	220	470	24	0.60	8.00	1.70	15.00	LTCC	50
ZX10Q-2-5-S+	Connector	90° Hybrid	330	580	20	0.40	5.00	1.30	20.00	LTCC	50
ZX10Q-2-7-S+	Connector	90° Hybrid	425	675	17	0.40	8.00	1.00	20.00	LTCC	50
ZX10Q-2-12-S+	Connector	90° Hybrid	800	1,250	17	0.35	5.00	0.80	25.00	LTCC	50
ZX10Q-2-13-S+	Connector	90° Hybrid	675	1,300	20	0.40	8.00	1.30	15.00	LTCC	50
ZX10Q-2-19-S+	Connector	90° Hybrid	1,100	1,925	26	0.40	4.00	1.10	20.00	LTCC	50
ZX10Q-2-25-S+	Connector	90° Hybrid	1,350	2,450	25	0.40	5.00	1.10	20.00	LTCC	50
ZX10Q-2-27-S+	Connector	90° Hybrid	1,700	2,700	23	0.40	3.00	1.00	20.00	LTCC	50
ZX10Q-2-34-S+	Connector	90° Hybrid	2,500	3,400	29	0.40	4.00	1.20	20.00	LTCC	50
