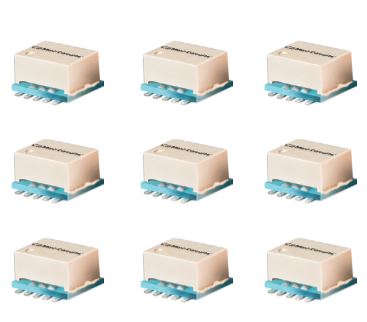

Frequency Mixers DESIGNER’S KIT, 50Ω, 500 to 5000 MHz

Data, Drawings & Downloads


• Triple balanced, wide bandwidth
• Excellent isolation, 30dB
• Large selection of models, LO levels 10,13 and 17dBm
• Low conversion loss, 7dB
• Very good matching, 2:1 VSWR typ.
• Small size 0.25”x 0.3”x 0.19”
