1.35 mm RF ADAPTERS

DC to 90 GHz

1.35 mm RF ADAPTERS

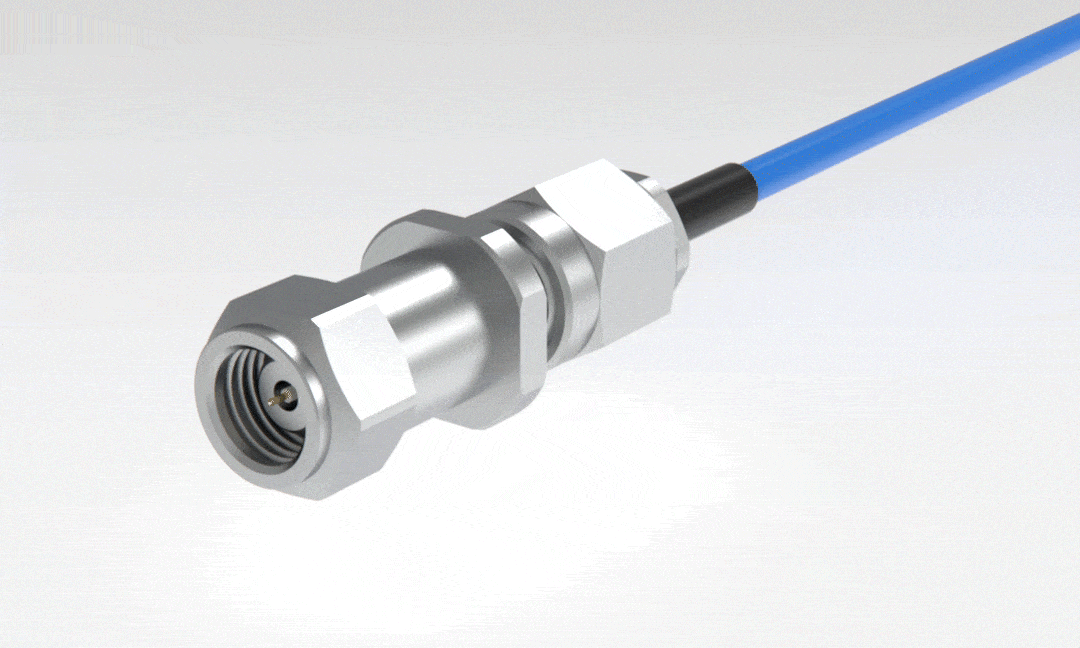

Wideband 1.35mm Adapters

Mini-Circuits’ 1.35mm to 1.35mm RF/mmWave adapter series offers three mating adaptations to meet all possible interface configurations. Ultra-wideband, 90 GHz capability allows these units to be integrated into a variety of system types, while low insertion loss and exceptional VSWR result in minimal impact to interconnections. Adapters feature passivated stainless steel construction and a rugged, compact design.

Key Features:

  • DC to 90 GHz frequency range
  • Insertion Loss of 0.24 dB typ. (M-M and F-M)
  • Insertion Loss of 0.29 dBm typ. (F-F)
  • VSWR of 1.07:1 (M-M), 1.08:1 (F-M), 1.05:1 (F-F)
  • Straight body, rugged construction

1.35 mm RF ADAPTERS CATALOG

135M-135M+

RF Adapter Straight 1.35mm Male to 1.35mm Male DC – 90 GHz 50Ω
135M-135M+
  • 1.35mm, Adapters, New product

135F-135M+

RF Adapter Straight 1.35mm Female to 1.35mm Male DC – 90 GHz 50Ω
135F-135M+
  • 1.35mm, Adapters, New product

135F-135F+

RF Adapter Straight 1.35mm Female to 1.35mm Female DC – 90GHz 50Ω
135F-135F+
  • 1.35mm, Adapters, New product
