USB-1SP8T-852H

Absorptive SP8T, Solid State Switch, 10 MHz - 8.5 GHz, 50Ω

USB-1SP8T-852H

FEATURES

• Solid-state SP8T absorptive switch
• High-speed switch transition, 200 ns
• Very high isolation, 60 dB
• High power handling, +30 dBm max
• Daisy-chain control of up to 35 modules

PRODUCT OVERVIEW

Mini-Circuits’ USB-1SP8T-852H is a low cost, fast switching SP8T switch covering a wide bandwidth from 10 to 8500 MHz. The solid-state design features an impressive combination of high isolation (60 dB typical) and high linearity (+50 dBm typ IP3) allowing the model to be used for a wide variety of RF applications.

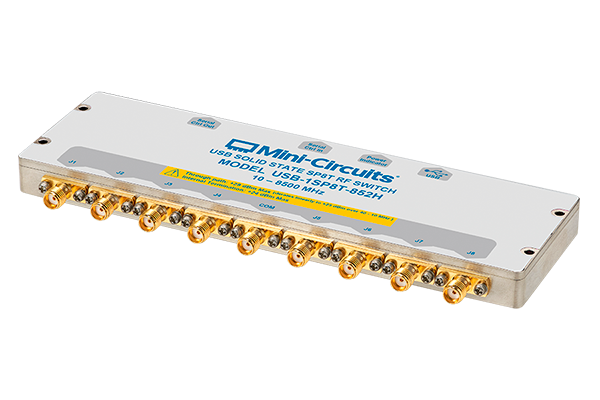

The USB-1SP8T-852H is housed in a compact, low profile, rugged metal case (6.5” x 2.0” x 0.475”) with 9 SMA (F) connectors (COM, and J1 to J8), a USB Mini-B port for power and control, and two data bus connectors for Master / Slave connections to other modules.

Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
