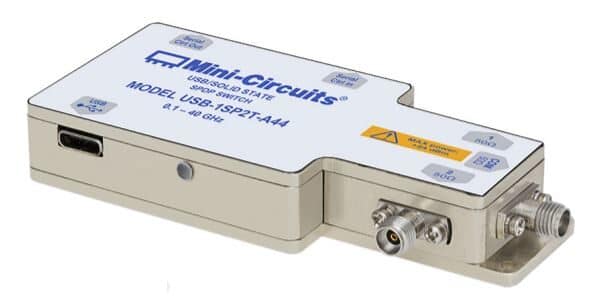

USB-1SP2T-A44

USB / Daisy Chain RF SPDT Switch, 50Ω, 0.1 to 43.5 GHz

FEATURES

• Ultra wide bandwidth 0.1 to 43.5 GHz
• High Isolation, 50 dB @ 40 GHz
• USB control and automation
• Daisy-chain control of up to 25 switches

PRODUCT OVERVIEW

Mini-Circuits’ USB-1SP2T-A44 is a fast switching solid-state SPDT covering an ultra-wide bandwidth, from 0.1 to 43.5 GHz. The solid-state design features an impressive combination of high isolation, low insertion loss and good linearity across the entire band. The switch is supplied in a low profile package with precision 2.92 mm RF connectors.
Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems). Download the software from our website at https://www.minicircuits.com/softwaredownload/solidstate.html.
The daisy-chain control interface with “dynamic addressing” simplifies control integration, allowing multiple switches to be combined into a Master / Slave chain. Simply connect, then power on and the whole chain of up to 25 compatible switches can be controlled independently through a single USB and software interface.
