SLC-1M-SMSM+

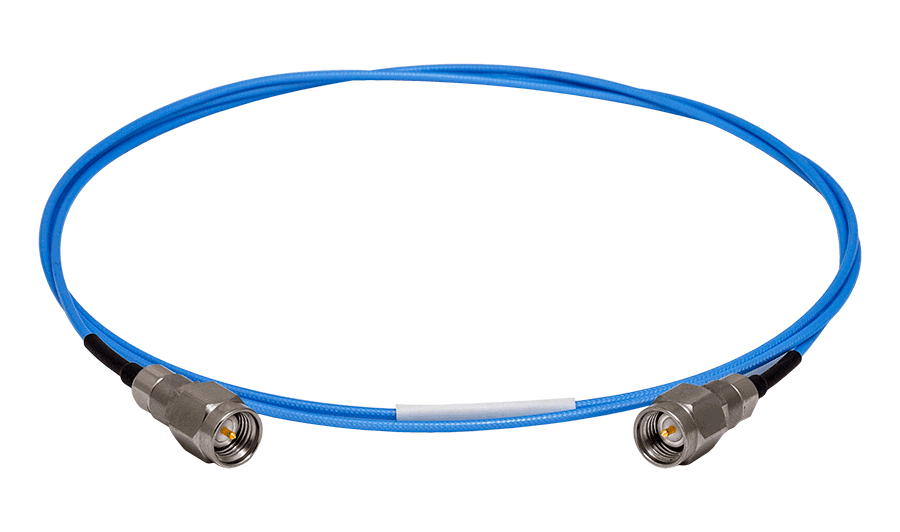

Wideband, Super-Flexible Test Cable, SMA-Male to SMA-Male, DC to 18 GHz

Description

Mini-Circuits’ SLC-SMSM+ Series are super-flexible cables which provide wideband performance from DC to 18 GHz with low insertion loss and excellent VSWR. The cable is designed for stability of phase and amplitude versus flexure while offering tremendous durability and reliability. Its unique construction of a double shielded cable allows the cable to have the greatest of flexibility and yet handle the demanding lab environments where constant bending and flexing are required. In addition, they feature straight SMA to straight SMA stainless steel connectors. Available from stock in a variety of lengths to support many different requirements.

Features

Ultra-thin spaghetti cable, 0.064″ diameter • Tight minimum bend radius, 0.25″ • Minimal performance change versus flexure
