RCM-1SP8T-26

USB & Ethernet Controlled RF SP8TSwitch Matrix, DC - 26.5 GHz, 50Ω

PRODUCT DESCRIPTION

Mini-Circuits’ RCM-1SP8T-26 is a software controlled, electro-mechanical SP8T switch. It operates over an extremely wide bandwidth, from DC to 26.5 GHz with high isolation and low insertion loss. The absorptive switch is of a failsafe and breakbefore-make-configuration, with a minimum lifetime of 2 million switching cycles per switch position, when used within the noted specifications.

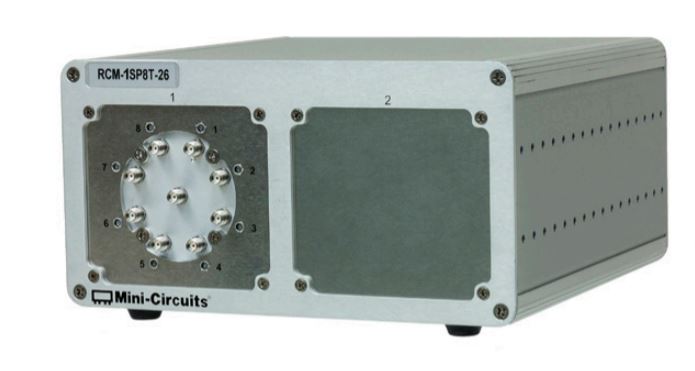

The switch box is constructed in a compact, rugged metal case (8.25 x 8.25 x 4.25”) with all SMA (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).

PRODUCT FEATURES

• Mechanical SP8T switch
• Excellent performance to 26.5 GHz
• High reliability, 2 million switch cycles
• 5W power rating (cold switching)
