USB & Ethernet Controlled RF SPDT Switch Matrix, 50Ω DC to 40 GHz


Mini-Circuits’ RC-2SPDT-40 comprises of two independently controlled, electro-mechanical SPDT switches. Each switch operates over an extremely wide bandwidth, from DC to 40 GHz with high isolation and low insertion loss. The reflective switches are of a failsafe and break-before-make-configuration, with a minimum lifetime of 2 million switching cycles per switch when used within the noted specifications.

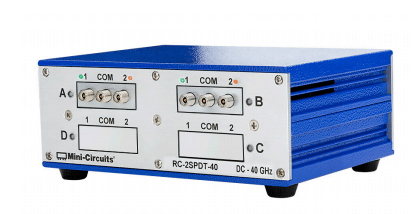

The switch box is constructed in a compact, rugged metal case (4.5 x 6.0 x 2.25”) with all 2.92mm (f) RF connectors on the front panel. The switches are controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network.
Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).


• Dual independent mechanical SPDT switches
• Excellent performance to 40 GHz
• High reliability, 2 million switch cycles
• 5W power rating (cold switching)
