ZB2PD-62-50W+

High Power, Power Splitter/Combiner, 2 Way-0°, 50Ω, Up to 50W, 30 to 610 MHz

Local Israeli Support

Hebrew & English

Fast Quotation

Get a quote quickly

Application Engineers

We're here to help

Overview

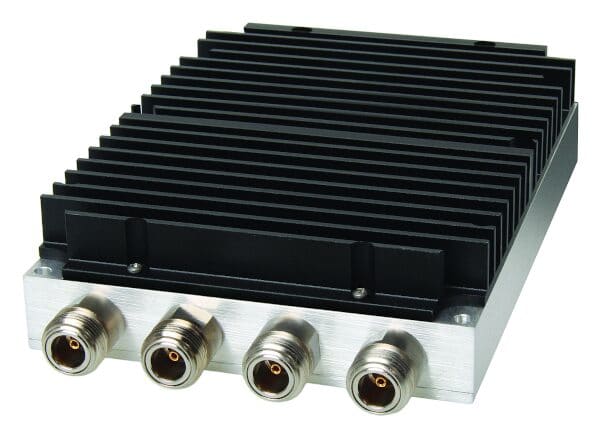

Mini-Circuits’ ZB2PD-62-50W+ is a 2-way 0˚ splitter/combiner providing very high power handling and low insertion loss across 30 to 610 MHz, covering the communications bands for receiver and transmitter as well as VHF and UHF. Its outstanding combination of high power and low loss, provide excellent signal fidelity from input to output or output to input. This model also provides high port-to-port isolation and very low amplitude and phase unbalance. It comes housed in a rugged aluminum alloy case with your choice N-Type connectors and a heat sink.

Features

• usable, 30 to 610 MHz
• low insertion loss, 0.5 dB typ.
• low amplitude unbalance, 0.3 dB typ.
• excellent output VSWR, 1.15:1 typ.
