TSY-83LN-DG+
In Stock Inquiry

TSY-83LN-DG+

Enquire about this product

Die MMIC, Low Noise Amplifier, 400 - 8000 MHz, 50Ω

Local Israeli Support

Hebrew & English

Fast Quotation

Get a quote quickly

Application Engineers

We're here to help

Download Datasheet

Overview

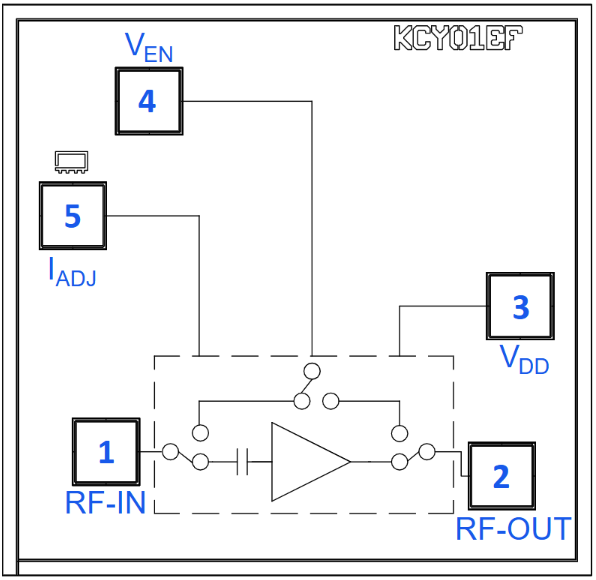

Mini-Circuits’ TSY-83LN-DG+ is a GaAs pHEMT-based wideband, bypass mode-capable, low noise MMIC amplifier with a combination of high IP3 and flat gain. Operating from 400 to 8000 MHz, this amplifier features high dynamic range with 1.4 dB noise figure, 23 dB gain, +22.8 dBm P1dB, and +34.6 dBm OIP3. This combination of characteristics makes it ideal for sensitive, high dynamic range receiver applications where a gain stage may need to be quickly bypassed and shut down in the presence of high-power RF signals. TSY-83LN-DG+ operates on a single +5 V or +6 V supply and is well-matched to 50Ω.

Features

• Low Loss Bypass Mode Feature
• Low Noise Figure, Typ. 1.4 dB
• High OIP3, Typ. +34.6 dBm
• High P1dB, Typ. +22.8 dBm
