This week I have selected for you 5 Mini-Circuits products and a new article "Wideband Amplifiers – Variable and Temperature-Compensated Gain" for you to discover.
|
I hope you will enjoy the read and look forward to be of further assistance to you.
|
As always, please feel free to contact us with any questions you may have.
|
|
|
|
|
|
|
|
|
|
|
|

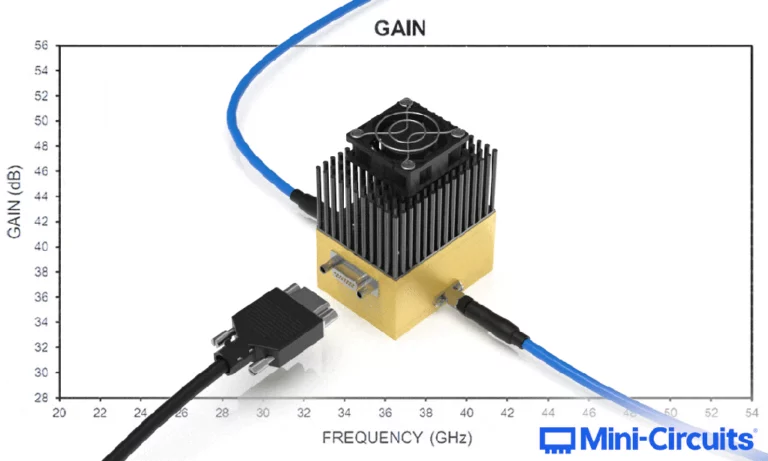

Wideband Amplifiers – Variable and Temperature-Compensated Gain
|
Many types of RF systems and applications that span from the upper end of microwave frequencies to the lower end of mmWave have arisen in recent years. Meeting system requirements over such a wide bandwidth and high frequency range, or even a broad sub-band requires that system performance parameters be stable, and the parameter that most often concerns microwave/mmWave system designers is gain. Mini-Circuits addresses these concerns with two amplifier types from our ZVA-series of wideband microwave/mmWave amplifiers that equip the system designer with either variable gain, or temperature-compensated, stable gain. Not only can gain be temperature-stable or variable, but at approximately 50 dB, it is also plentiful. Combine this with a low NF, high linearity and interactive telemetry, and Mini-Circuits’ wideband, variable and temperature-compensated gain amplifiers prove to be one of the highest-performing and most flexible amplifier solutions on the market today. Read on to find out how adjustable or temperature-stable gain and the ability to monitor output power can be beneficial when it comes to designing a system for any one of a number of applications.
|
|
|
|
|
|
|
|
|
Connectorized SMA Female, Wideband Amplifier
2 to 20 GHz, 50Ω
|
|
Mini-Circuits’ ZVA-02203LN(X)+ is a coaxial, wideband amplifier offering flat gain across a wide frequency range from 2 to 20 GHz. This model operates on a single +12 V supply with 290 mA typical current consumption and is capable of delivering up to 60 mW output power at 1 dB compression. The amplifier comes in a rugged, compact case (1.2” x …
|
|
|
|
|
|
|
|
Cavity Band Pass Filter
773 - 783 MHz, 50Ω
|
|
Mini-Circuits’ ZVBP-778-S+ is a coaxial cavity filter designed by implementing resonant structures with very high Q and are ideal for narrow-band, high-selectivity applications. Mini-Circuits’ coaxial cavity filters feature a special protective assembly to prevent accidental de-tuning that would otherwise require expensive replacement or return to factory for re-tuning. Precise machining allows realization of cavity filters with small form factors for …
|
|
|
|
|
|
|
|
Suspended Substrate Diplexer
902-928 / 2400-2500 MHz, 50Ω
|
|
Categories: Diplexer, Filters
|
Mini-Circuits’ ZVDP-902-252-S+ is a coaxial cavity diplexer designed by implementing resonant structures with very high Q and are ideal for narrow-band, high-selectivity applications. Bandpass, diplexer, and multiplexer designs can be realized with this technology with passband, up to 50GHz, and stopband width greater than 3x cut-off frequency. Mini-Circuits’ coaxial cavity filters feature a special protective assembly to prevent accidental de-tuning …
|
|
|
|
|
|
|
|
Reflectionless Low Pass Filter
DC - 1200 MHz
|
|
|
|
|
|
|
|
|
|
Reflectionless Low Pass Filter
DC - 1200 MHz
|
|
Mini-Circuits’ ZXLF Series reflectionless filters employs a novel filter topology which absorbs and terminates stop band signals internally rather than reflecting them back to the source. Reflectionless filters eliminate stopband reflections, allowing them to be paired with sensitive devices and used in applications that otherwise require circuits such as isolation amplifiers or attenuators. This is developed in a new broadband, stable …
|
|
|
|
|
|
|
|
|
