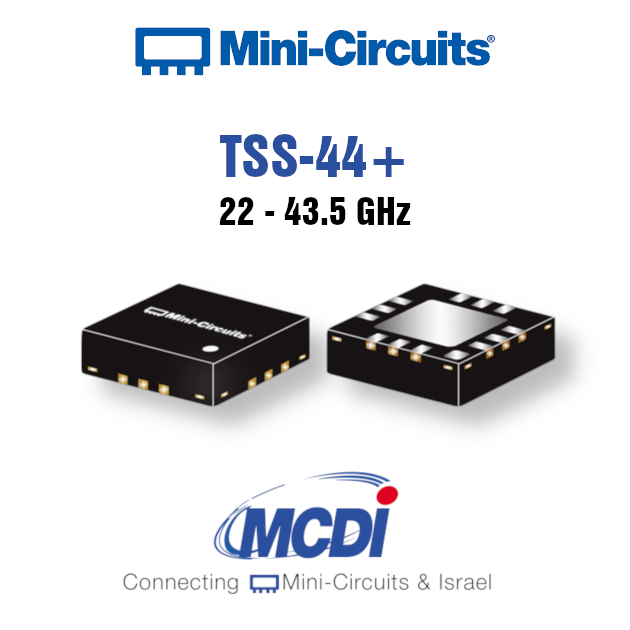

TSS-44+ RF Amplifier, 22-43.5 GHz, Monolithic, RF, MW, Shutdown

The all-in-one Super High Frequency & Wideband MMIC Amplifier you've been waiting for!

The TSS-44+ all-in-one wideband MMIC RF Amplifier is a winner.

The TSS-44+ is a surface mount, MMIC amplifier with shutdown feature fabricated using E-PHEMT technology and is a fully integrated 3-stage gain block up to 43.5 GHz with excellent active directivity. It is packaged in the industry-standard 3×3 mm MCLP package, which provides excellent RF and thermal performance. The TSS-44+ integrates the entire matching network with the majority of the bias circuit inside the package, reducing the need for complicated external circuits. This approach makes the TSS-44+ extremely flexible and enables simple, straightforward use.

This MMIC amplifier is offered at a much lower price than other such products on the market with similar characteristics.

Product Features

• Super high frequency and wideband, 22 to 43.5 GHz
• Gain, 17.6 dB typ. & Flatness, ±0.9 dB to 40 GHz
• Excellent active directivity, 28 dB typ.
• Positive Supply Voltage, 4V, 22mA
• Integrated DC blocks, Bias-Tee & Microwave bypass capacitor
• Shutdown feature
• Unconditionally Stable
• Aqueous washable; 3mm x 3mm SMT package

Typical Applications

• 5G
• Radio Navigation
• Mobile
• Fixed satellite
• Space research

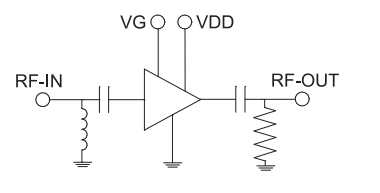

Simplified schematic and pad description

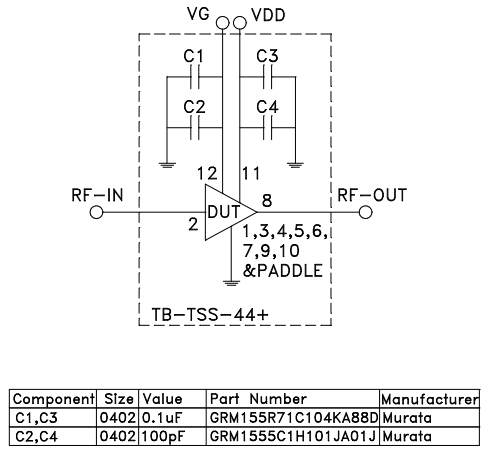

Characterization Test Circuit / Recommended Application Circuit
