RF Test Solutions

All the RF Test Solutions you'll ever need!

Discover Mini-Circuits’ RF Test Solutions.

Now up to 40 GHz!

Software-controlled building blocks in-stock for automation of lab and production test environments.​

RF Test Solutions | Mini-Circuits | MCDI
MCDI - MINI CIRCUITS - RF, IF, MW, mmW

Get them from MCDI, the exclusive representative for Mini-Circuits in Israel.

At Mini-Circuits, our experience in the test space has evolved according to the needs of our customers, following a progression from test accessories like cables, adapters, and attenuators, to benchtop programmable test modules, to modular and fully customized rack-mountable systems. The diversity of customer test requirements has led us to build our business in this area around principles ofcompetence, flexibility, and speed.Customers are looking to the industry to partner with them to define the test solution for their needs. This requires the competence and expertise of our applications engineers to understand customers’ needs and develop a clear system definition.

RF Test Solutions | Mini-Circuits | MCDI

Our Product Range

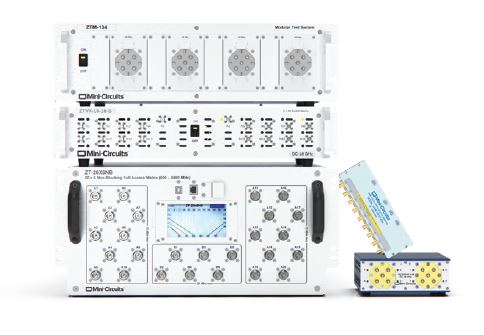

RF Modular Test Systems

Modular & Custom Test Systems

The choice is yours!​

  • Rack mount or benchtop
  • Customizable front panel layout
  • USB & Ethernet control Interfaces
  • User-friendly GUI & API included
  • Get these in 2 weeks or less!
RF Mechanical Switch Matrix

Mechanical Switch Matrix

A wide range of configurations for signal routing up to 40 GHz!​

  • Compact benchtop modules and rack-mount systems​
  • SPDT, SP4T, SP6T, SP8T, and transfer switch configurations
  • USB and Ethernet control options
  • User-friendly GUI & API included
  • High isolation
RF Solid State Switch Matrix

Solid State Switch Matrix

Fast switching and high isolation for improved efficiency

  • Compact switch modules and custom rack mount switch matrices
  • Many combinations of SPDT, SP4T, SP8T, SP10T, and SP16T switch configurations
  • Wide bandwidth
  • Unique designs achieve high isolation
  • User-friendly GUI and API included
RF Programmable Attenuators

Programmable Attenuators

Precise level control perfect for transmission loss simulation, signal fading/handover system evaluation, telecoms network infrastructure, and more!

  • Supporting applications up to 40 GHz
  • USB, Ethernet, RS232, and SPI control options
  • User-friendly GUI and API included
RF Mesh Network Test Systems

Mesh Network Test Systems

Multi-port networks for interconnecting 3 to n devices or test systems

  • Allows simulation of “real-world” mesh communication network in production environment
  • Independently controlled attenuation on every path
  • Ideal for testing Bluetooth and Zigbee devices, wireless handsets, and Wi-Fi systems
RF Instrumentation Amplifiers

Instrumentation Amplifiers

  • Large Selection of Modules
  • Custom Integration
  • Quick Turn Around
  • Rugged Construction
RF NxM Switch Matrix

N x M Switch Matrix

Reliable and repeatable signal routing with USB and Ethernet control. Ideal for multi-channel / MIMO test systems, cellular base-station / handset testing, satcoms signal routing, and more.

  • 19-inch rack mount chassis
  • USB and Ethernet standard control interfaces
  • Custom switch configurations built to order
  • User-friendly GUI and API included
RF Signal Generation/Measurement/Control

Signal Generation Measurement & Control

Benchtop devices for RF test and measurement applications
  • Custom Integration
  • Quick Turn Around
  • Rugged Construction
RF Test Solutions | Mini-Circuits | MCDI

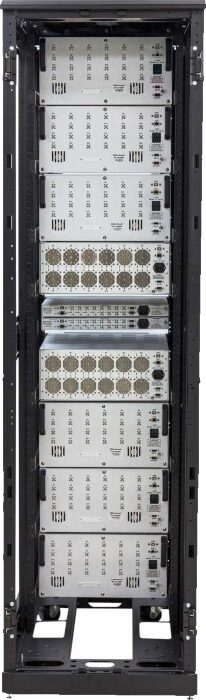

High Power Test Systems

Mini-Circuits HPA-Series amplifiers can be used to drive 80 test channels in a configuration similar to that shown here. This setup is popular for use in high-throughput production testing applications where parallel processing of many DUTs is a requirement.

RF Test Solutions | Mini-Circuits | MCDI

Panel Mounted Structures

Simplify connections and cable management in complex test racks

  • 19 inch rack mount panel
  • Custom configurations of adapters and splitters
RF Signal Distribution

Signal Distribution

Splitter/combiner and direction coupler arrays for distribution of test signals through multiple channels

  • Rack-mounted, panel-mounted, or benchtop structures
  • Wide range of splitter configurations
  • Wideband splitters up to 65 GHz
RF Test Solutions | Mini-Circuits | MCDI

Custom Systems

  • Typical 8-weeks turnaround
  • 100% RF Tested with Labview based automated test program
  • Custom GUI with path control functions
  • Rugged construction

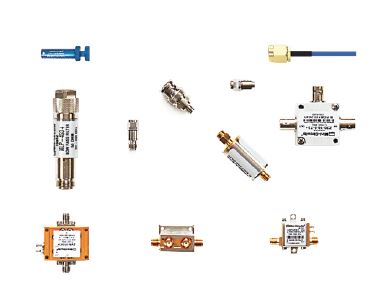

RF Test Accessories

Test Accesories

Mini-Circuits Test Accessories provide you with the peace of mind you deserve: Tight spot SMA Wrench, precise portable and durable, calibrated precise, lightweight break-over Torque Wrench, N-Type, BNC – TNC and SMA connector Gage kits.



Want to hear how these products can help with your projects?

Fill the form and our RF Engineers will contact you to discuss how Mini-Circuits’ products can shorten your development time while lowering your costs.
