Wide stopbands with 100+ dB rejection Excellent selectivity
Coaxial and surface mount designs
Rugged design prevents accidental de-tuning from handling in harsh environments

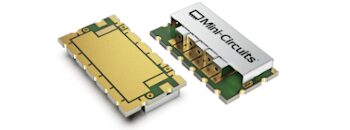

CERAMIC RESONATOR
Fractional bandwidth from 0.5 to 40%
Low insertion loss, 0.5 dB typ.
Excellent power handling, up to 20W
Rugged construction for demanding operating conditions
Good rejection and selectivity
Multiple compact surface mount package options
Wide stopband with harmonic suppression > 3 x fc

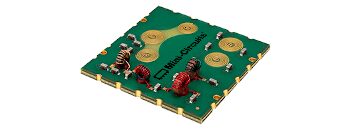

LUMPED L-C
Wide catalog selection
Affordable custom designs with low or no NRE
Several package options including aqueous wash-proof
Flexible type and topology
Excellent repeatability
Over 100 million shipped!

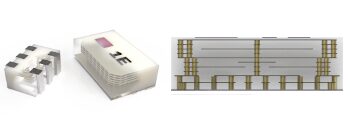

LTCC
Tiny size, as small as 0202
Cost and repeatability ideal for volume manufacturing
Industry’s widest selection of mmWave LTCC filters for 5G, Satcom and more
Proprietary designs with stopband rejection up to 100 dB
Footprint-compatible thru lines available as filter placeholders
Wide selection in stock and fast, affordable custom designs

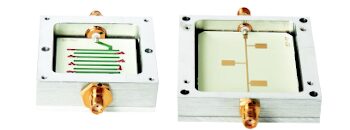

MICROSTRIP
Passband insertion loss as low as 0.6 dB
Connectorized designs with 4 to 40% fractional bandwidth
Power handling up to 10W
Flat group delay

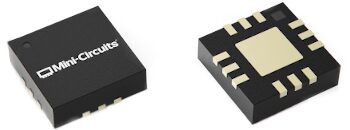

MMIC REFLECTIONLESS
Patented topology absorbs and internally terminates stopband signals
Perfect for pairing with amplifiers, mixers & multipliers
Improves spur-free dynamic range in DACs & ADCs
Minimizes ripple in optical communication systems
Cascadable with other filter technologies

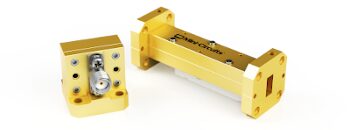

RECTANGULAR WAVEGUIDE
Low passband insertion loss, 1 dB
High stopband rejection, 40 dB
WR-12, WR-15 and WR-28 interfaces

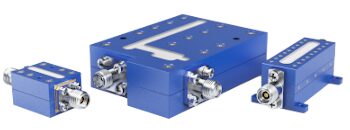

SUSPENDED SUBSTRATE
Ultra-wide passband width up to 26 GHz
Wide stopbands up to 40 GHz
Low passband insertion loss
Extremely high rejection
Rugged designs prevent detuning from vibration and mechanical shock

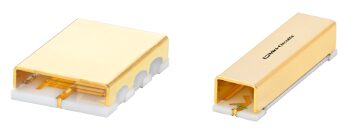

THIN FILM ON ALUMINA
Passbands from DC to 40000
Low insertion loss
High rejection with wide passband
Excellent selectivity
Good power handling
Temperature stability from -55 to 125 ̊C
