MMIC PRODUCTS

DC to 65 GHz

Excellence in Performance Peace of Mind

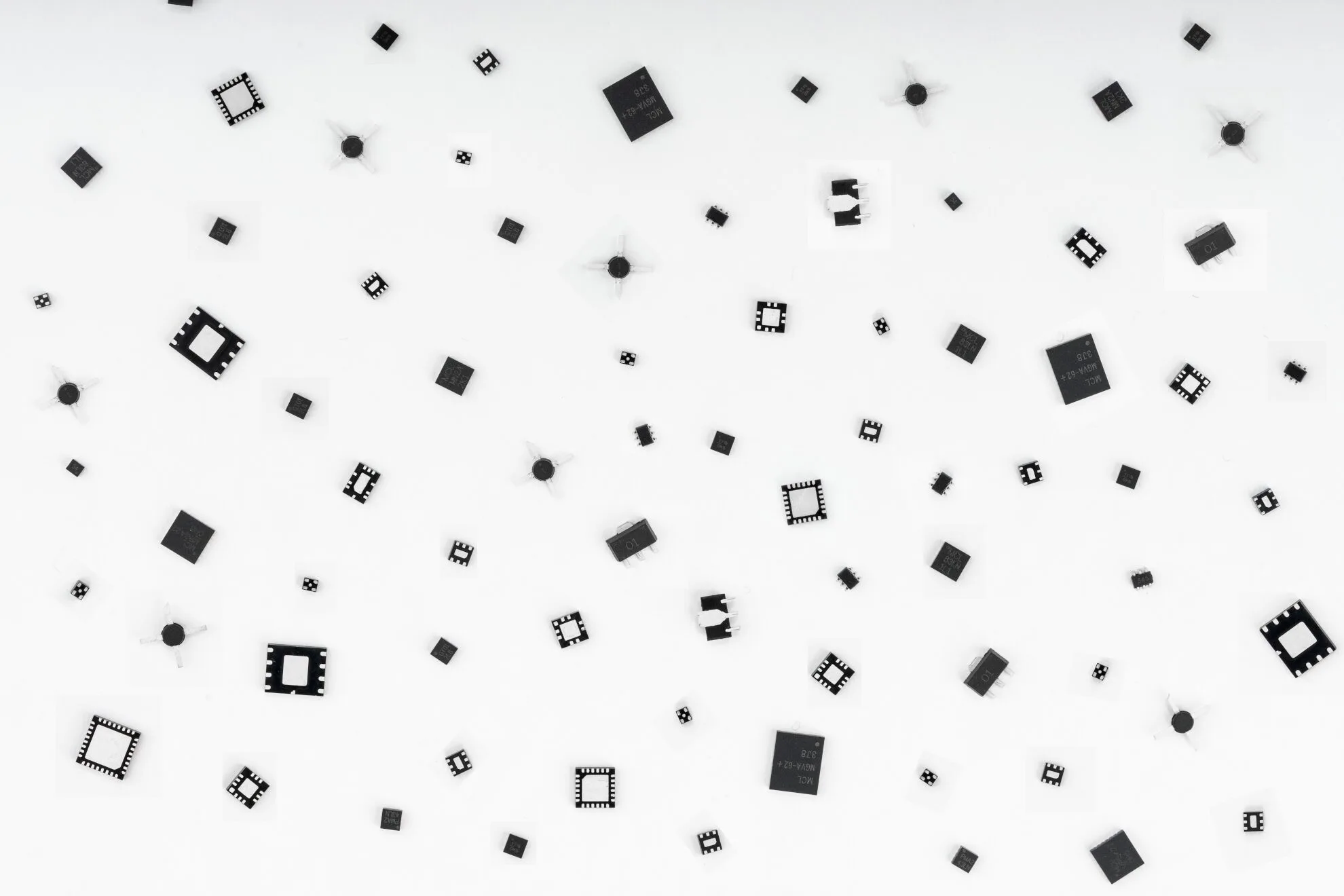

Mini-Circuits offers one of the industry’s largest portfolios of GaAs pHEMT, HBT and IPD MMICs, and we’re innovating new products and capabilities all the time.

  • 700+ models in stock and growing
  • Industry leading quality & reliability
  • Support through the life of your system
  • All models available in QFN and bare die form

AVAILABLE MMIC PRODUCTS

MMIC AMPLIFIERS

  • Up to 50 GHz
  • Wide bandwidths up to 50 GHz
  • Surface mount and bare die formats
  • Noise figure as low as 0.38 dB
  • OIP3 up to 50 dBm
  • Industry-leading phase noise, -173 dBc/Hz @ 10 kHz offset

MMIC FIXED ATTENUATORS

  • Flat Response up to 50 GHz
  • 18, 43.5 and 50 GHz model series
  • Attenuation values from 0 to 30 dB
  • Power handling up to 2W

MMIC BIAS TEES

  • Ultra-Wideband, High-Current
  • 1.5 to 28 GHz
  • 1W RF power handling
  • 500 mA DC current handling

MMIC COUPLERS

  • Now Up to 50 GHz
  • Ultra-wideband
  • Flat coupling
  • Directional, bi-directional & RF tap models

MMIC FIXED EQUALIZERS

  • Flatten Negative Gain Slope
  • 6, 20 and 45 GHz model series
  • dB slope values from 0 to 12
  • Power handling up to +34 dBm

MMIC REFLECTIONLESS FILTERS

  • Patented topology absorbs and internally terminates stopband signals
  • Perfect for pairing with amplifiers, mixers & multipliers
  • Improves spur-free dynamic range in DACs & ADCs
  • Minimizes ripple in optical communication systems
  • Cascadable with other filter technologies

MMIC MIXERS

  • High-Frequency, Wideband
  • RF/LO up to 65 GHz in bare die format
  • Up to 50 GHz in QFN package
  • Super-wide IF, DC to 20 GHz

MMIC MULTIPLERS

  • Output Up to 40 GHz
  • Ultra-wideband
  • Low conversion loss
  • Excellent fundamental and harmonic suppression

MMIC SPLITTERS/COMBINERS

  • Widest Bandwidths in the Industry
  • Multi-octave bandwidths from DC to 43.5 GHz
  • Power handling up to 2.5W
  • Insertion loss as low as 0.4 dB

MMIC BALUN TRANSFORMERS

  • Wideband to 24 GHz
  • Low insertion loss
  • Low amplitude & phase unbalance (relative to 90Ā°)
  • Power handling up to +34 dBm
