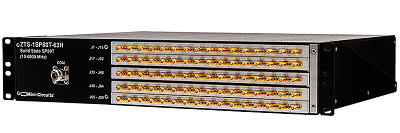

Mini-Circuits’ ZTS series platform allows multiple solid-state switch types to be combined and integrated into a single rack-mount package with software control via USB and Ethernet. ZTS-1SP80T-63H integrates a combination of Mini-Circuits’ USB-1SP16T-83H (SP16T) and USB-1SP8T-63H (SP8T) models into a single SP80T (1 x 80)switch configuration, operating from 10 MHz to 6 GHz with fast switching and high isolation. All RF connections are accessible on the front panel of the 19-inch 2U height rack chassis, with N-type for the COM port and SMA for ports J1-J80.
The system can be controlled via USB or Ethernet (supporting both HTTP and Telnet network protocols).Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments.
Mini-Circuits’ novel serialinterface allows multiple switch racks to be cascaded together into a daisy-chain; the full chain effectively becominga single system with every switch controlled through a single USB or Ethernet connection and software interface.
