Mini-Circuits

FX-30G-RC

MILLIMETER WAVE USB & ETHERNET FREQUENCY EXTENDER

50Ω, 10 MHz to 30 GHz

FX-30G-RC

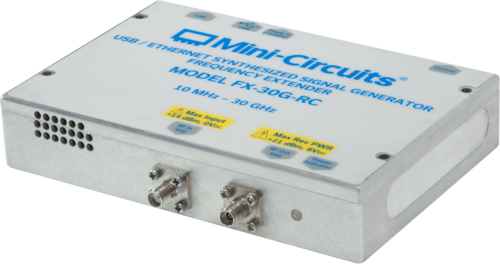

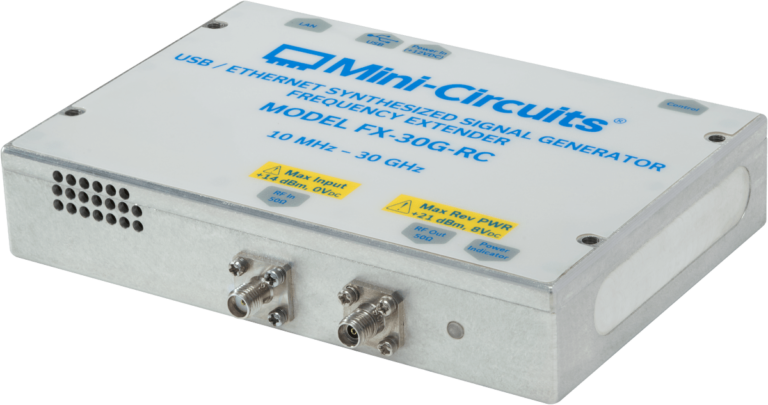

Mini-Circuits FX-30G-RC is a wideband frequency extender and buffer module, designed to multiply an existing 7.5-15 GHz signal source for operation up to 30 GHz

The FX-30G-RC can be used with Mini-Circuits' Signal Generators or as as stand-alone solution

As a stand-alone unit, the FX-30G-RC will switch automatically between signal paths according to the output frequency requested by the user.

FX-30G-RC

The low-band path covers 10 MHz to 15 GHz and allows a signal source to be passed straight from input to output via a 20 dB buffer amplifier, for output levels up to +23 dBm.

The system is controlled via Ethernet or USB using Mini-Circuits’ powerful GUI for Windows or comprehensive API. SSH, HTTP & Telnet protocols are supported via Ethernet, with programming support for most common languages.

Cost effective 10 MHz to 30 GHz Signal generator

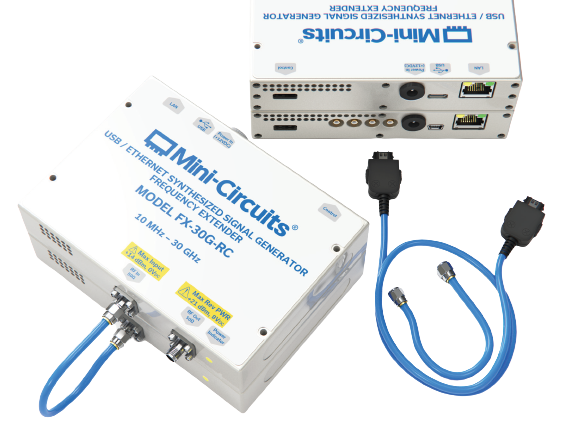

FX-30G-RC integrates seamlessly with Mini-Circuits’ SSG-15G-RC to create a single, cost effective, millimeter wave signal generator (see SSG-30G-RC), offering CW and pulsed outputs from 10 MHz to 30 GHz. All required accessories are included and can be set up in moments, just connect the RF and serial control cables between the signal source and frequency extender modules, plug in the power supply and turn on.

SSG-30G-RC
